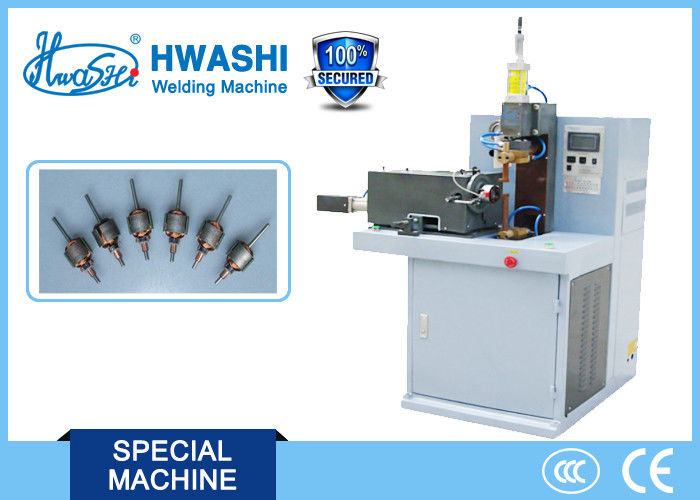

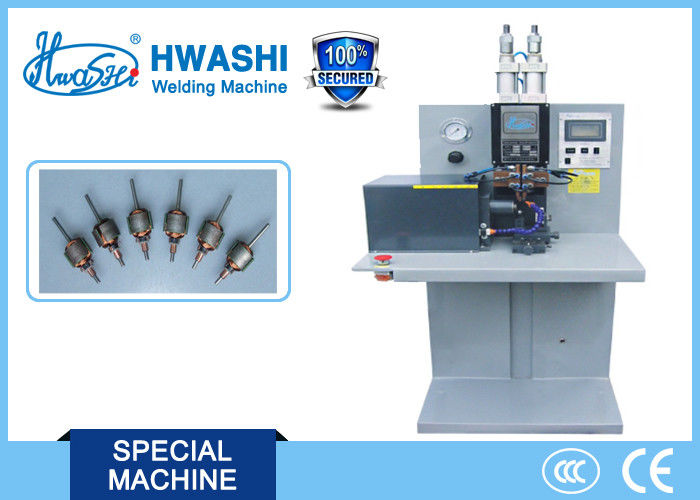

    Product Name: Wound Rotor Motor / Commutator Welding Machine With Automatic Fixture Application: Welding Armature Commutator
    Size: 1300x900x1700mm Weight: 550kg
    Condition: New Warranty: 12 Months
    Standard: CE/CCC/ISO Service Life: 8-10 Years

    Wound Rotor Motor / Commutator Electrical Welding Machine With Automatic Fixture





    DESCRIPTION

    wire diameter:0.6-0.75mm, the machine is designed to do 18 to 36 times of spot welding. Operator only needs to put the work piece into the mould, then the machine will conduct automatic rotating, cycle working, and continuous welding.



    Option 1: AC pulse power source: Adopt one set of 35KVA special resistance welding transformer as the welding power source. Adopt one set of 35KVA special resistance welding transformer as the welding power source. Single-spot welding. Continuous duty cycle rate is 50%; the output current is larger than 18000A. The executive standard is GB/15578-2008; the magnetic permeability of forced temperature control cooling water silicon steel sheet is larger than 12000GS; special cooling water subloop; It can ensure the output welding current of the whole machine is constant and powerful in order to obtain high quality, high efficiency, stable welding spots.

    • Advantage: Low price, simple power structure.
    • Disadvantage: High requirement to the power grid amd welding pressure. High degree of output heat, ac output and inductive reactance. Low utilization rate of thermal efficiency. Single-phase input which will easily cause imbalance to the power grid.



    Option 2: Medium Frequency Inverter Power Source: Be able to adopt MF inverter power source. Duty cycle rate is 50%. The three-phase power supply, through rectified by a special inverter, is converted into 1000Hz AC voltage and then is transmitted to a medium frequency transformer. The current is rectified in order to supply DC welding current. This power source is different from the general type ac pulse power source because it can adjust rapidly and precisely. To some extend, it can replace the capacitor discharge welding machine to weld the work piece (e.g. the work piece with coated) with short welding time. It can be used to weld the zinc coating steel plate, nonferrous metal, coating and other metals. Small impact to the power grid and the requirement to the power grid capacity is much lower than the single-phase welder with the capacity. The executive standard is GB/15578-2008; the magnetic permeability of forced temperature control cooling water silicon steel sheet is larger than 16000GS; special cooling water subloop; It can ensure the output welding current of the whole machine is constant and powerful.

    • Advantage: three-phase input; small impact to the power grid; medium frequency DC output; no impedance loss to the circuit; high thermal utilization factor; the precision setting of welding time is high which can reach 1/1000sec; large instantaneous current; prevent deformation and color change on the product.
    • Disadvantage: High price, complicated circuit design.





    SPECIFICATION

    Model Manner Input Voltage Input Power Output Current
    WL-S-16K AC pulse 220/ 380V 16KW 10000A
    WL-S-25K AC pulse 380V 25KW

    12000A







    APPLICATION

    Welding of commutator.



    MATERIAL CONFIGURATION

    1. Adopt silicon controlled from IXYS of United Stated with high precision and long service life.

    2. Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.

    3. Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system. Clear interface, easy operation, and stable performance.

    4. Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within ±15%. Prompt current compensation to ensure the stable welding current of power source.

    5. Adopt Taiwan TECO servo motor with powerful strength, high precision and stable control.

    6. Adopt South Korea SANWO pneumatic components with stable performance.

    7. The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity. Less power consumption, more powerful and stable capacity.

    8. Strictly comply with CE security standard to design the machine. Lower the accident rate.



    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
