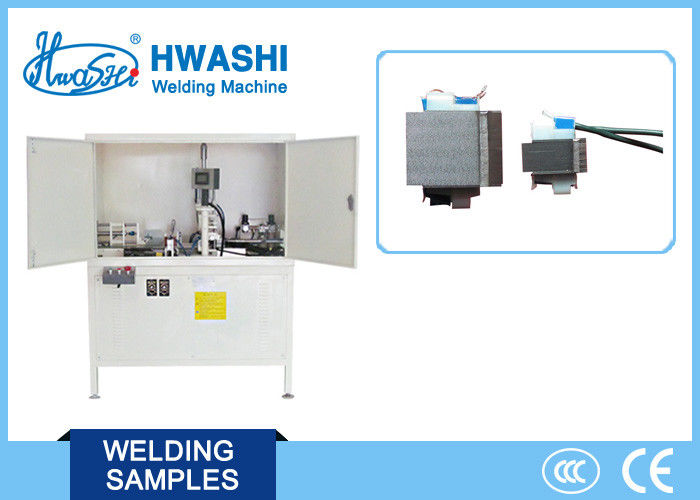

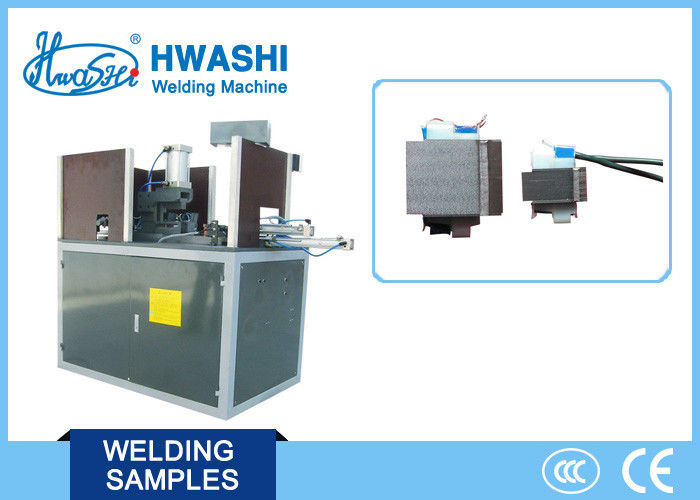

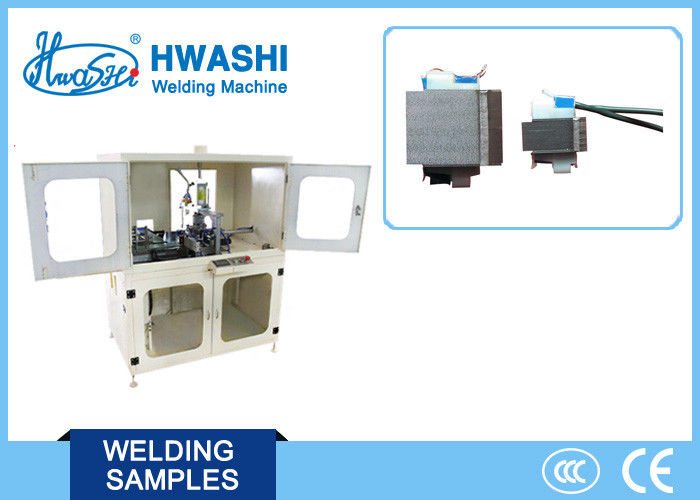

Assembly MIG Tig Welder , Transformer EI Piece Automatic MIG Tig Welding Machine

Assembly MIG Tig Welder , Transformer EI Piece Automatic MIG Tig Welding Machine

    • Assembly MIG Tig Welder , Transformer EI Piece Automatic  MIG Tig Welding Machine
    • Assembly MIG Tig Welder , Transformer EI Piece Automatic  MIG Tig Welding Machine
    • Assembly MIG Tig Welder , Transformer EI Piece Automatic  MIG Tig Welding Machine
    • Assembly MIG Tig Welder , Transformer EI Piece Automatic  MIG Tig Welding Machine
  • Assembly MIG Tig Welder , Transformer EI Piece Automatic  MIG Tig Welding Machine

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-ATC-315

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: WL-LA-250A Transformer EI Piece Automatic MIG Tig Welding Machine Application: Welding Of Transformer EI Lamination
    Size: 1300mmX900mmX1800mm Weight: 300 Kg
    Condition: New Warranty: 1 Years
    Standard: CE/CCC/ISO Service Life: 8-10 Years
    Welding Gun Moving Speed: 0.5m/sec

    WL-LA-250A Transformer EI Piece Automatic MIG Tig Welding Machine





    DESCRIPTION

    The machine is used to automatic welding and assembly for transformer E, I lamination .



    1. After assembly of the E piece and I piece, the electric reactor will enter into feeding conveyer belt, then enter into horizontal feeding cylinder area under the effect of adjustable-speed motor.

    2. The horizontal feeding cylinder will action, pushing the work piece into vertical feeding cylinder area.

    3. Afterwards, the vertical feeding cylinder will action, pushing the work piece into flat welding area. The left and right leveling cylinder will level off the work piece and compress it. The upper cylinder will action to compress the work piece.

    4.In order to achieve higher automatic, we designed the machine with feeding and discharging conveyer belt. It can help to save more labor force and increase production rate.





    SPECIFICATION



    Item

    Parameters

    Input Voltage

    380V three-phase

    Input Current

    15A×3

    Argon Arc Welder

    315A

    Servo Motor Moving Disctance

    ≤75mm

    Welding Gun Moving Speed

    ≤0.5m/sec

    Vertical Feeding Cylinder

    ¢40x400mm

    Upper Clamping Cylinder

    ¢50x50mm

    Left and Right Leveling Cylinder

    ¢40x50mm

    Discharging Cylinder

    ¢40x150mm

    Conveyer Belt Length

    1200mm







    MACHINE COMPOSITION

    1. Power Source System: Japan Panasonic AC DC 315 argon arc welder as the welding power source.



    2. Pressurized and Locating Mechanism: Adopt the South Korea SANWA pneumatic parts as the pressing source of the machine. Adopt the working manner that the bottom bears the stress from the top to guarantee the reasonable machine structure and quick locating mechanism to conduct locating function.



    3. Mobile System: The mobile welding distance is designed as 75mm.  Since the mobile stability and constant speed is of quite importance, so the machine is designed as servo motor as the driving force. Besides, it is equipped with finish machining good quality slide way and driving screw.



    4. Control System: Adopt Japan Panasonic PLC as the control hub of the whole machine, is in charge of reading, transmitting and controlling all kinds of signal processing and coordinating with various external instructing transmission signal mechanism in order to ensure the validity of all orders of execution of the machine. Simple testing and operation. The welding spot distance and welding speed can be set through the menu easily.



    5. Detection System: Use Omron optical fiber detection device together with alarming device. Effectively ensure the normal working of the system.



        Assembly MIG Tig Welder , Transformer EI Piece Automatic  MIG Tig Welding Machine



              Assembly MIG Tig Welder , Transformer EI Piece Automatic  MIG Tig Welding Machine

    APPLICATION

    Automatic assembly and welding of EI lamination for transformer.



                                         Assembly MIG Tig Welder , Transformer EI Piece Automatic  MIG Tig Welding MachineAssembly MIG Tig Welder , Transformer EI Piece Automatic  MIG Tig Welding Machine

    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.



    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.



    3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.



    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.



    5. Quick Delivery: Our company provides just-in-time delivery.



    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
