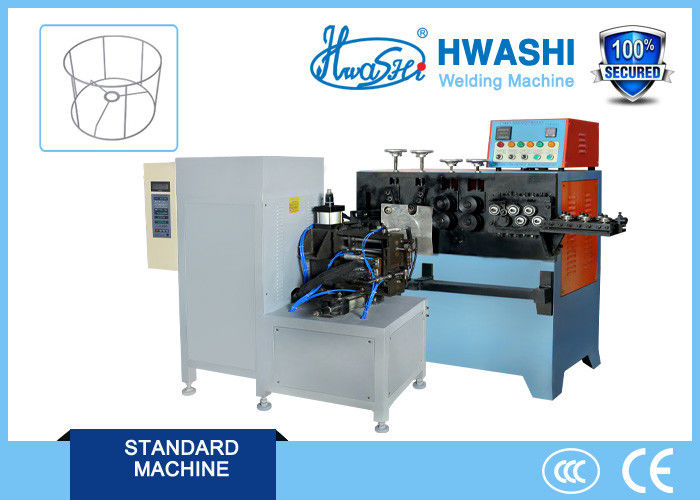

Steel Wire Ring Making and Butt Welding Machine with High Efficiency

Steel Wire Ring Making and Butt Welding Machine with High Efficiency

Steel Wire Ring Making and Butt Welding Machine with High Efficiency

Product Details:

Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-AT-75K

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Automatic Steel Wire Ring Making And Butt Welding Machine Application: Suitable For Ring Making And Welding
Size: 1800mmX1400mmX1400mm Weight: 1100kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years

Automatic Steel Wire Ring Making and Butt Welding Machine with High Efficiency



DESCRIPTION

This automatic ring making and welding machine is composed of automatic feeding, automatic coiling, automatic moving, automatic welding and automatic unloading process.



The steel wire will pass through the feeding plate, and then enter into the wire feeding wheel and wire pressing wheel. The machine will conduct ring coiling. The cutter will cut the wire into certain length, then the robot arm will grab the ring and put it into welding position to conduct butt welding. At last, the robot arm will take out the ring. The whole process will be finished.





FEATURES

Technological process:

1. Automatic feeding ( feeding the wire)

2. Automatic coiling ( hydraulic system, wire pressing wheel)

3. Automatic moving (cylinder robot arm)

4. Automatic welding (AC pulse power/MF DC power)

5. Automatic unloading (cylinder robot arm)

6. Sound-light alarm function: the machine will give alarm when the material is used up, the power is overpressure, the welding current is abnormal or when the temperature is too high.

7. Counting function: the machine will sum up the number of qualified product, defective product and welding times of electrode.

8. Monitoring function: the display screen will monitor the whole process of actions and the welding current of each welding process. It will give alarm when the monitoring function is abnormal.



SPECIFICATION

No. Item Automatic Welding Automatic Welding Automatic Coiling
1 Input Power 75KW 75KW 2.2KW
2 Input Voltage

400V50Hz

Three-phase

400V50Hz

Single-Phase

380V Three-Phase
3 Input Current 115A 135A 10A
4 Output Voltage DC7.6V AC5.6V
5 Max Short Circuit Current 21000A 24000A
6 Welding Models 101 types 16 Types
7 Wire Diameter Range 2-8mm
8 Coiling Ring Diameter 35-750mm
9 Feed Rate 20m/Min
10 Robotic Arm Moving Speed 500mm/Sec
11 Robotic Arm Open Distance 10mm
12 Welding Cylinder ¢100x80mm
13 Moving Cylinder ¢32x100mm
14 Clamping Cylinder ¢16x20mm





APPLICATION

Suitable for automatic ring making and welding.











COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
