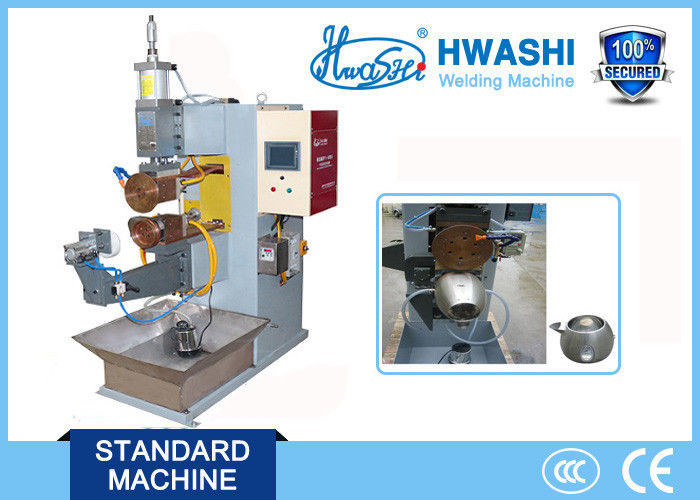

WL - FS -100K Seam Welder Machine for pot pan base , High performance

WL - FS -100K Seam Welder Machine for pot pan base , High performance

WL - FS -100K Seam Welder Machine for pot pan base , High performance

Product Details:

Place of Origin: China
Brand Name: Hwashi
Certification: CE/CCC\ISO
Model Number: WL-FS-100K

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Sea worthy wooden package
Delivery Time: 7-15 days after payment
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Size:: 780x1250x1800mm Weight: 250KG
Condition:: New Service Life:: 8-10 Years

WL-FS-100K Seam Welding Machine, Seam Welder Machine for Coffee Pot Base


DESCRIPTION



The seam (roll) welding special machine is the evolution of spot welder. It uses the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seal welding will generate weld nuggets which will overlap with each other so as to achieve welding effect.



The weld seam of roll welding is composed of welding spots. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding. There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.



However, this kind of welding approach is greatly different from spot welding because the inevitable current shunt makes the current field and thermal field of weld zone distinctive. Moreover, the rolling plate that is used to transmit pressure and ohmic heating keeps rolling and changing the welding position which results in the features of the current field and thermal field distribution and the crystallization of fusion zone are related to the speed of changing position.


FEATURE
1. Adopt intelligent microcomputer single piece controller which achieve pure digital setting. Online computer programming, LED digital display, stable performance, convenient modification of the program online.

2. Adopt intelligent microcomputer control welding system. When the voltage fluctuates, it will compensate the welding current automatically to ensure the stability of welding.

3. Adopt digital circuit control; select the components from famous factories in the world to ensure the equipment could operate steadily in the long run.

4. Adopt SEMIKRON from West Germany, IXYS and IR silicon controlled from United States. High precision, long operating life, achieve high stability control of the magnitude of current.

5. The transmission tile axis adopts the latest mercury conductive technology from abroad. State-of –the-art technology with good performance in transmission and conductivity.

6. Welding roll wheel adopts the alloy copper material from Japan. High rigidity, good conductivity.

7. The transformer adopts the high pure silicon steel sheet from Japan, good performance in magnet and electricity conductivity. Low consumption of electricity. Stronger and more stable power.

8. Welding mold and the connection of the whole machine uses the mosaic connection. Easy to be assembled and disassembled.

9. AC pulse, secondary rectifying and three-phase medium frequency type of welding power source are available.



SPECIFICATION

Model Welding Wheel Manner Input Voltage Output Power Output Current
WL-FSH-16K Horizontal 220/ 380V 16KW 10000 A
WL-FSL-25K Circular 220/ 380V 25 KW 12000 A
WL-FSH-25K Horizontal 220/ 380V 25 KW 12000 A
WL-FSH-35K Horizontal 380V 35 KW 16000 A
WL-FSZ-50K Vertical 380V 50 KW 19500 A
WL-FSZ-75K Vertical 380V 75 KW 24000 A
WL-FST-50K Special Machine structure 380V 50 KW 19500 A
WL-FST-150K Special Machine structure 380V 150 KW 40000 A
WL-FST-200K Special Machine structure 380V 200 KW 50000 A
WL-FS-100K Vertical 380V 100 KW 30000 A





APPLICATION
Roll welding is widely applied to light gauge welding of sealed container of oil drum, can, heating radiator, airplane and fuel tank, rocket and missile. In general, the welding thickness is within 3mm of single plate.



COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.



WL-FS-100K Seam Welding Machine, Seam Welder Machine for Coffee Pot Base



WL-FS-100K Seam Welding Machine, Seam Welder Machine for Coffee Pot Base WL-FS-100K Seam Welding Machine, Seam Welder Machine for Coffee Pot Base
