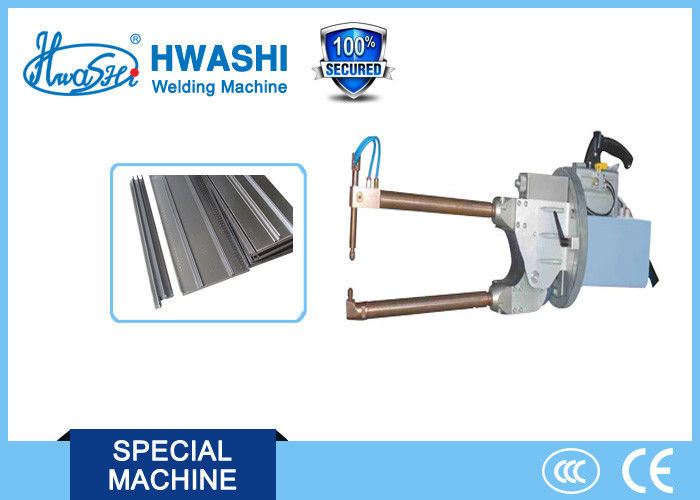

Handheld Mini Spot Welder Fixed Welding Arm For Stainless Steel / Iron / Aluminum

Handheld Mini Spot Welder Fixed Welding Arm For Stainless Steel / Iron / Aluminum

    • Handheld Mini Spot Welder Fixed Welding Arm For Stainless Steel / Iron / Aluminum
    • Handheld Mini Spot Welder Fixed Welding Arm For Stainless Steel / Iron / Aluminum
  • Handheld Mini Spot Welder Fixed Welding Arm For Stainless Steel / Iron / Aluminum

    Product Details:

    Place of Origin: China
    Brand Name: Hwashi
    Certification: CE/CCC/ISO
    Model Number: WL-C-35C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Sea worthy wooden package
    Delivery Time: 7-15 days after payment
    Supply Ability: 500 sets per month
    Contact Now
    Detailed Product Description
    Size:: 50x30x30cm Weight: 25KG
    Condition: Full New Application:: Metal Pallet Industry.

    recision Mini Projection Welding Machine for Silver Contacts low voltage





    DESCRIPTION

    1. Electrode pressure adjustment screw
    2. Right / left handgrip.
    3. Position for eyebolt. ( Eyebolt not supplied.)
    4. Moving welding arm.
    5. Fixed welding arm.
    6. Power supply cable.
    7. Rating plate.
    8. Microswitch.
    9. Welding time adjustment. (H-3000)
    10. Control panel.

    11. Welding lever



    This protable spot welding machine,also known as integrative spot welding machine, it integrate the main transformer and the welding clamp together,it has aluminum alloy body,with characteristics of small volume and large output,high efficiency and energy saving,light flexible,etc. While the machine operation can be done horizontally and vertically rotate 360 degrees. The major advantages of integrative spot welding machine is saving a lot of energy and one-time investment costs ,as well as the consumption cost of wearing parts,it has a flexible light weight body ,stable and reliable.







    SPECIFICATION



    ITEM / MODEL WL-25C WL-25C WL-35C WL-35C
    Load Occupation Rate 50%(KVA) 25 25 35 35
    Secondary Voltage(V) 2.75 2.75 4.3 4.3
    20m of Cable Sectional Area 8 8 10 10
    Fusion Current(A) 35 35 50 50
    Arm Space(mm) 100-158 120- 110-330 120-
    Minimum Arm length(mm) 160 160 160 160
    Electrode Tip Welding Stroke(mm) 15-25 15-25 15-25 15-20
    Maximum Cylinder Stroke(mm) 40 70 40 70
    Maximum Arm Length(mm) 6.5 6.5 6.5 6.5





    APPLICATION



    Used to welding Metal pallet industry. Match up with manipulator to achieve the needs of automatic production line.



    COMPATITIVE ADVANTAGE



    1. Prompt Response to Customers: Your satisfaction is the goal we pursue.

    HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.









    Precision Mini Projection  Welding Machine for Silver Contacts  low voltage

    Handheld Mini Spot Welder Fixed Welding Arm For Stainless Steel / Iron / Aluminum







    Handheld Mini Spot Welder Fixed Welding Arm For Stainless Steel / Iron / Aluminum



    Tags: hand held spot welder

             Portable spot welder



      Mini spot welding machine







    Precision Mini Projection  Welding Machine for Silver Contacts  low voltagePrecision Mini Projection  Welding Machine for Silver Contacts  low voltage
