Portable Table Flat Plate Sheet Metal Welder Aluminum Resistance Spot Welding Machine

Portable Table Flat Plate Sheet Metal Welder Aluminum Resistance Spot Welding Machine

Portable Table Flat Plate Sheet Metal Welder Aluminum Resistance Spot Welding Machine
Portable Table Flat Plate Sheet Metal Welder Aluminum Resistance Spot Welding Machine
Portable Table Flat Plate Sheet Metal Welder Aluminum Resistance Spot Welding Machine
Product Details:
Place of Origin: China
Brand Name: Hwashi
Certification: CE/CCC/ISO
Model Number: WL-SQ-50K
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Sea Worth Wooden package
Delivery Time: 7-20 days after payment
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Size:: 1200x1180x1850mm Or Customized Weight:: 300kg
Condition: New Service Life: 8-10 Years
High Light:

metal welding equipment

,

head welding machine

Portable Table Flat Plate Sheet Metal Welder Aluminum Resistance Spot Welding Machine

DESCRIPTION

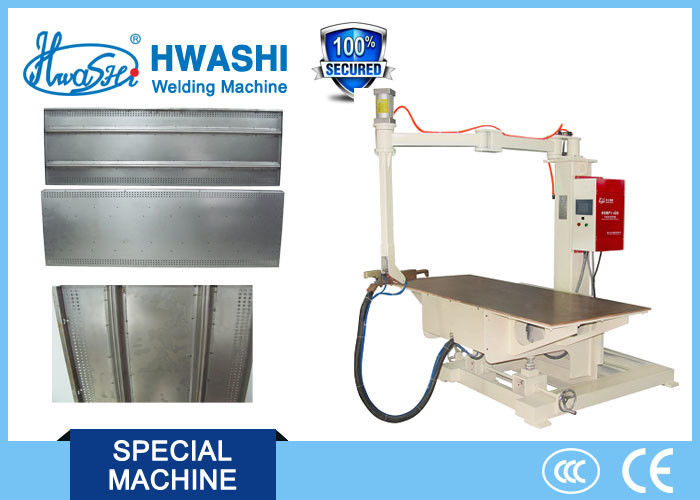

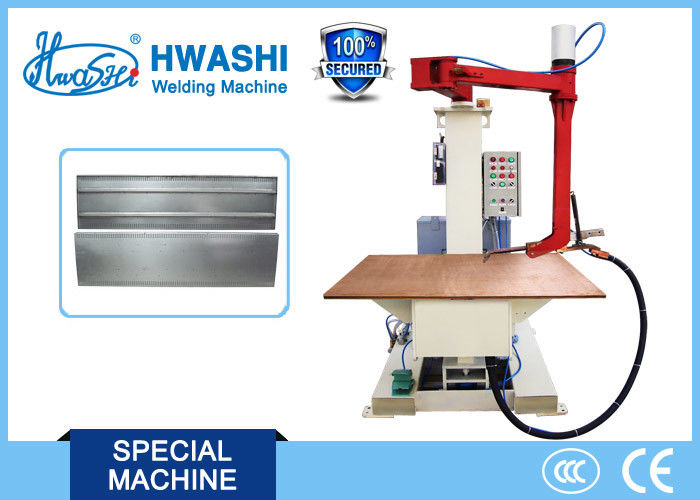

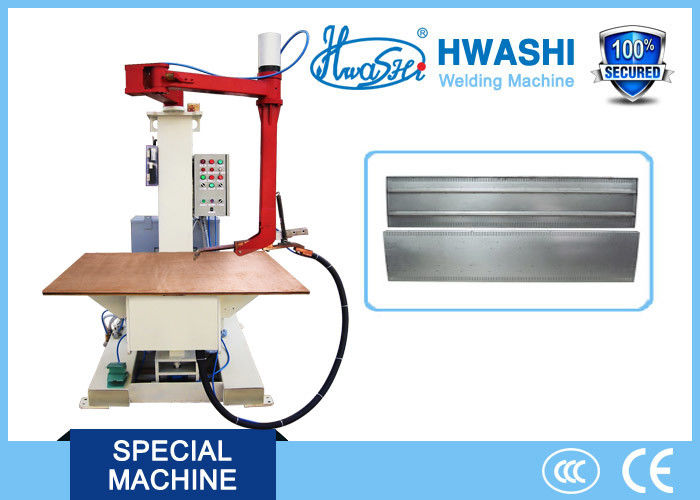

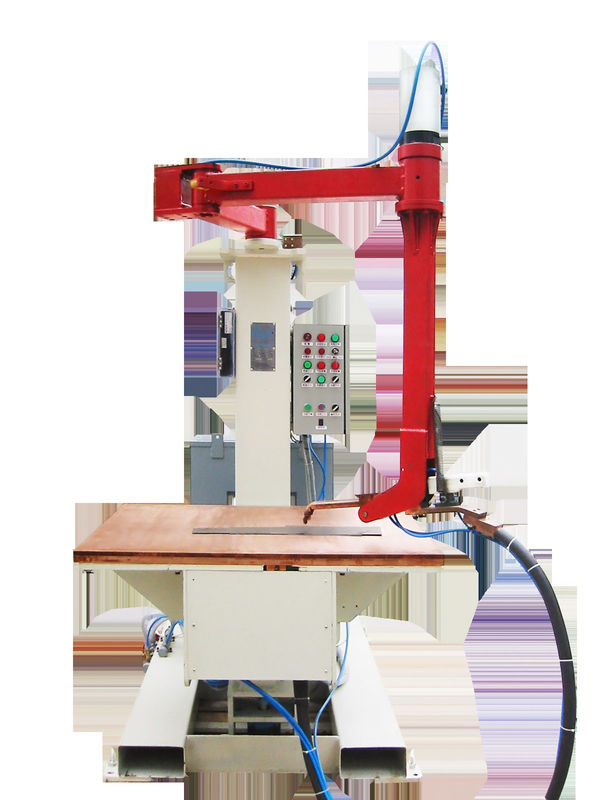

Crank arm mobile flat plate spot welder is designed with multiple mobile arms according to the principle of mechanical arm, which can automatically or manually move in order to ensure the precise preset position of welding spot.

AC pulse, three-phase secondary rectifying or medium frequency inverter power source are optional to be the welding power source.



Flat Plate Sheet Metal Welder Aluminum Table Resistance Spot Welding Machine



Flat Plate Sheet Metal Welder Aluminum Table Resistance Spot Welding MachineFlat Plate Sheet Metal Welder Aluminum Table Resistance Spot Welding Machine

Flat Plate Sheet Metal Welder Aluminum Table Resistance Spot Welding Machine

Flat Plate Sheet Metal Welder Aluminum Table Resistance Spot Welding Machine

Flat Plate Sheet Metal Welder Aluminum Table Resistance Spot Welding Machine

Flat Plate Sheet Metal Welder Aluminum Table Resistance Spot Welding Machine

SPECIFICATION

S.N Items WL-MF-40K WL-MF-50K WL-MF-75K
1 Input voltage 380V,3 phases 380V,3 phases 380V,3 phases
2 Input current 65A 80A 80A
3 Output voltage 8.5V 10V 12V
4 Max.Welding Current 15000A 18000A 26000A
5 Welding Specification 18 kinds 18 kinds 18 kinds
6 Different Welding Current 6 kinds 6 kinds 6 kinds
7 Effective size of welding platform 800mmx800mm 800mmx800mm 2000mmx800mm
8 Max.range of Crank moving 1000mm 1000mm 1200mm
9 Max.angle of Crank moving 180° 180° 180°
10 Adjusting rang of platform height 0-200mm 0-200mm 0-200mm





APPLICATION

This machine is widely used to weld metal sheet in electronic appliances, automobile and other area..

Flat Plate Sheet Metal Welder Aluminum Table Resistance Spot Welding Machine



COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here try our best to help you.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
