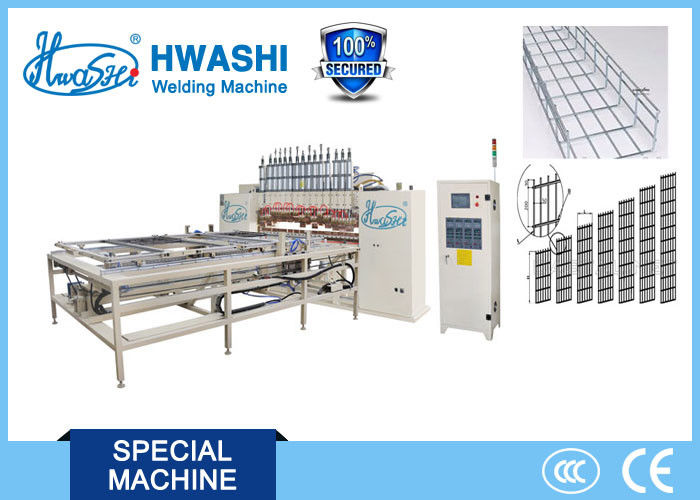

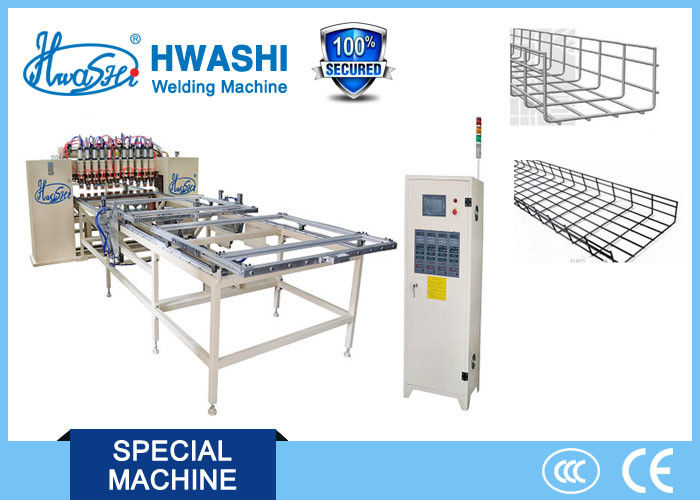

Twelve-Head multi-point Welded Automatic Wire Mesh Welding Machine with Multiple points welding

Twelve-Head multi-point Welded Automatic Wire Mesh Welding Machine with Multiple points welding

    • Twelve-Head multi-point Welded Automatic Wire Mesh Welding Machine with Multiple points welding
    • Twelve-Head multi-point Welded Automatic Wire Mesh Welding Machine with Multiple points welding
    • Twelve-Head multi-point Welded Automatic Wire Mesh Welding Machine with Multiple points welding
  • Twelve-Head multi-point Welded Automatic Wire Mesh Welding Machine with Multiple points welding

    Product Details:

    Place of Origin: China
    Brand Name: Hwashi
    Certification: CE/CCC/ISO
    Model Number: WL-SQ-150K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: wood case
    Delivery Time: 7 days
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Size:: 6000x2480x1850mm Weight:: 1800kg
    Condition:: New Service Life:: 8-10 Years

    Twelve-Head multi-point Welded Automatic Wire Mesh Welding Machine with Multiple points welding



    DESCRIPTION





    We adopt the design of twelve groups of welding electrodes and gantry type welding machine with CNC programming system. This machine is composed of gantry type support, welding transformer, pneumatic drive device, upper and lower electrodes, electrical control system, cooling system, and PLC operation control system.The worker only needs to put the material into the jigs and press the start button, then the machine will automatically finish welding.







    SPECIFICATION



    Model WL-SQ-MF150K×2
    Input Voltage two-phase 380 V
    Input Current 400 A
    Output Voltage 12V
    Max Short Circuit Current 45000 A
    Welding Effective Width 1500 mm
    Welding Effective Length 2000 mm
    Feeder Moving Speed 500 mm/sec
    Upper Welding Cylinder ¢ 100 x 100 mm
    Lower Welding Cylinder ¢ 160 x 100 mm




    APPLICATION



    Continuous welding wire mesh



    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO 9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







    Twelve-Head Welded Automatic Wire Mesh Welding Machine with Multiple points welding







    Twelve-Head Welded Automatic Wire Mesh Welding Machine with Multiple points welding





    Twelve-Head Welded Automatic Wire Mesh Welding Machine with Multiple points welding
