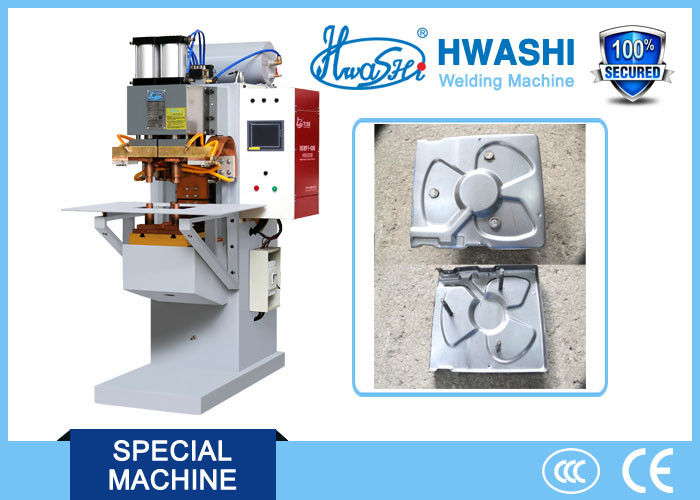

Advanced Dc Power Pneumatic Spot Welding Machine Three Phase Load Balance

Advanced Dc Power Pneumatic Spot Welding Machine Three Phase Load Balance

Advanced Dc Power Pneumatic Spot Welding Machine Three Phase Load Balance

Product Details:

Place of Origin: China
Brand Name: Hwashi
Certification: CE/CCC/ISO
Model Number: WL-S-35K

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Sea worthy wooden package
Delivery Time: 7-15 days after payment
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Size:: 480x900x1600mm Weight:: 200kg
Condition:: New Service Life:: 8-10 Years




Medium Frequency Direct Current machines use an inverter, powered from a 3 phase supply in which the current is rectified using diodes and then chopped by means of IGBT’s into high frequency alternating current. This alternating current is then transformed by the welding transformer and again rectified. DC current is thus obtained at the secondary side in to the parts to be welded.

The MFDC welding machine load is evenly distributed across all three phases. This allow equal load to be drawn from each line, thus reducing peak draw on any one line. The price of MFDC machines is higher than the conventional Alternating current (AC) machines but users will get advantages such as three phase balanced loading, weight reduction in transformer, about 20 to 25% less power requirement as compared to AC machines, better control over time and uninterrupted energy input into the parts to be welded.





Medium frequency is an ideal machine for spot welding of Aluminum, Galvanized sheets (GI), Electro galvanized sheets (EGI), Stainless steel and of course low carbon steel.







  1. Advanced welding machine, adopt principle of MF inverter . Change the three phase AC power into DC power.
  2. Welding current is DC , no inductance , higher heat input and output efficiency , more reliable and stable welding quality
  3. Three phase load balance, power factor is close to 1
  4. Intelligent digital controller, more precise and faster control of the welding current. The adjustment precision is 20 times higher than the AC machine
  5. Reduce the production cost, save energy, reduce the requirement for cables and maintenance cost, improve the induction factor.
  6. Store energy in a special inverter, more adaptation to the fluctuation of the power grid.
  7. Smaller size and lower weight of welding transformer, one third of the AC machine .
  8. Be able to weld aluminum and galvanized material product
  9. Especially suitable for welding three-layer metal sheet or very thin product







1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.




Advanced 3 phase Pneumatic Spot Welding Machine For Large Stud Screw



Advanced 3 phase Pneumatic Spot Welding Machine For Large Stud Screw
