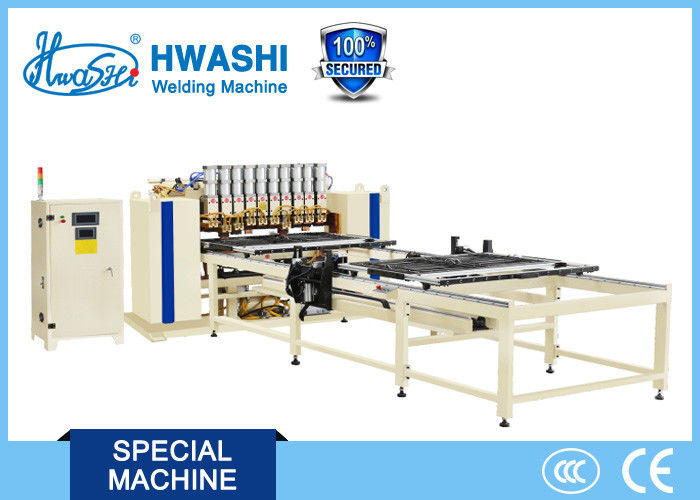

Automatic Display Rack Wire Welding Machine , Wire Storage Basket Welding Machine

Automatic Display Rack Wire Welding Machine , Wire Storage Basket Welding Machine

wire welders

wire welding machinery

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-150Kx2

Contact Us

Request A Quote
Product Details
Product Name:
Steel Wire Shelf Welding Machine , Full Automatic Oven Rack Spot Welding Machine
Application:
Welding Of Oven Wire Shelf, Wire Rack
Size:
4000x1380x1850mm
Weight:
1500kg
Welding Diameter:
1-8mm(can Be Customized)
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Welding Material:
Iron , Carbon Steel , Stainless Steel And Etc.
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Automatic Display Rack Wire Welding Machine , Wire Storage Basket Welding Machine



APPLICATION



Application: weld metal wire mesh, goods shelf, guard rail, air conditioner mesh, dish rack etc. Continuous welding wire mesh whose width is within 2000mm, length is not restricted.



DESCRIPTION



1.Design with grantry type structure with multiple welding electrodes.

2.Equipped with automatic wire filling and welding system. Suitable for welding the product whose vertical wire number is large while horizonttal wire number is small.

3.Automatic wire filling from X and Y direction. No fixture frame design to achieve welidng of wire mesh with different size.

4.This machine can achieve unmanned operation . Better ensure stable welding spot. It helpsps to increase product quality and production rate, lower production cost and solve the unstable welding quality and low production efficiency due to manual working. Higher production efficiency and automation degree.

5.It can be equipped with automatic hydraulic pressure bending working position. Mechnical arm will put welded product at bending area for bending and automatic discharge.





Here are some real factors of your products will infuence the machine you need:



1.Wire mesh products dimension.(max. and min. Length ,width)

2.Wire diameter( generally 2-6mm)

3.Your required welding production rated.



For getting recommend machine with quotation , you only need to send us your products drawing with detail information .  :)







Main Engine Control System: Adopt the touch screen of Japan Panasonic as the human-machine interface, Chinese-English input. The PLC, as the control hub as the whole machine, is in charge of reading, transmitting and controlling all kinds of signal processing and coordinating with various external instructing transmission signal mechanism in order to ensure the validity of all orders of execution of the machine.





SPECIFICATION



Model

WL-SQ-150K×2

Input Voltage

two-phase 380V

Input Current

400A

Output Voltage

12V

Max Short Circuit Current

45000A

Welding Effective Width

2000mm

Welding Effective Length

not restricted

Feeder Moving Speed

500mm/sec

Upper Welding Cylinder

¢100x100mm

Lower Welding Cylinder

¢160x100mm







COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Can custom design and manufacture based on customers' needs.



3. Use the most advanced technology ball screw driving to realize higher precision and efficiency.



4. Key parts use the best quality. Transformer made of copper by ourselves, no spark and excellent welding quality.



5. There are similar stock to show to customers when you come to visit.



6. Quick delivery: 15-30 days as we have spare parts stock.



7. Can do drop shipping: do proper export wood package and arrange shipment for customers.
