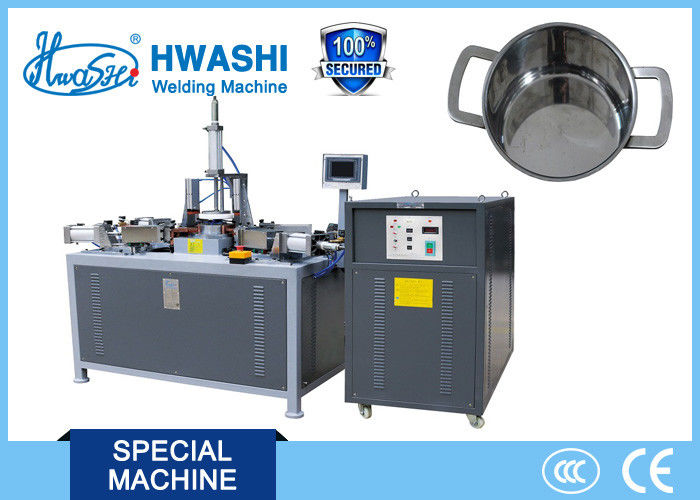

Hwashi Aluminum Sauce Pan Handle Spot Welding Machine stainless steel welders

Hwashi Aluminum Sauce Pan Handle Spot Welding Machine stainless steel welders

stainless steel welders

stainless steel spot welding

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQC-15K

Contact Us

Request A Quote
Product Details
Product Name:
Hwashi Aluminum Sauce Pan Handle Spot Welding Machine
Application:
Suitable For Welding Stainless Steel Handle
Size:
1800mmX1500mmX1750mm
Weight:
2500 Kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Hwashi Aluminum Sauce Pan Handle Spot Welding Machine



SPECIFICATION



 Model

 WL-C-15K

 Voltage

 380 V

 Power

 15KVA

Energy Storage

8000J

Capacitance

73500uF

 Pressurization

1500kg

 Electrode Stroke

100 mm

 Closure

130-230mm

 Platform Distance

260mm

 Electrode Distance

490-540mm

 Cooling Water

6 Lit/min







APPLICATION

Be able to applied to pan handle welding. Be able to weld two sides of handle at the same time.





DESCRIPTION

Capacitor discharge spot welder uses capacitor to store energy and to release instantaneous current. In the meantime, it concentrates large current to pass through a small point and then achieves welding effect (welding process passes through thousands of ampere current within 1/1000 second of time). Therefore, it can minimize the situation that the work piece being oxidized or mechanically deformed due to overheat during the process of welding.

Cookware Pan Handle Spot Welding Machine

The output of the capacitor discharge spot welder that we produce is from 100WS to 18000WS. It is especially suitable for welding metals like red copper, bronze, brass, aluminum, silver and stainless steel, etc. Thus, this type of machine is widely applied to various kinds of industrial production and manufacturing.



Hwashi Aluminum Sauce Pan Handle Spot Welding Machine stainless steel welders 0





FEATURE



1. Wide Application: Be able to weld 8mm of nonferrous metals like stainless steel, aluminum, titanium, silver, etc. Overcome the difficulties in welding dissimilar metals like bronze, aluminum, etc.



2. Firm and Good Looking: Firm welding; No black coating on the welding spots so no polishing process is needed; especially suitable for welding those exporting products which have high requirement on good looking.



3. Electricity and Energy Saving: This machine gets low surge power from the power grid and the power factor is high. Compared with the common AC machine with the same capability, it uses only 1/7 to 1/10 of the power. With a low cost.







MATERIAL CONFIGURATION



1. Adopt the energy storage type quick charge-discharge capacitor from Japan Nippon Chemi-Con (NCC) which is originated from MARGON or HITACHI; Fast discharge rate. Stable performance.



2. Adopt SEMIKON from West Germany, IXYS or IR Silicon controlled from United States. High precision and durable. Be able to achieve high stable control on the magnitude of current.



3. Adopt Motorola integrated circuits from United States. Quick response. Stable performance.



4. Adopt pneumatic parts from Japan or Taiwan with reliable performance.



5. All the devices are from imported famous brands with ideal service life and performance.







COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







          Hwashi Aluminum Sauce Pan Handle Spot Welding Machine stainless steel welders 1





                     Hwashi Aluminum Sauce Pan Handle Spot Welding Machine stainless steel welders 2Hwashi Aluminum Sauce Pan Handle Spot Welding Machine stainless steel welders 3

Hwashi Aluminum Sauce Pan Handle Spot Welding Machine stainless steel welders 4
