Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-SQ-150x2
Contact Us

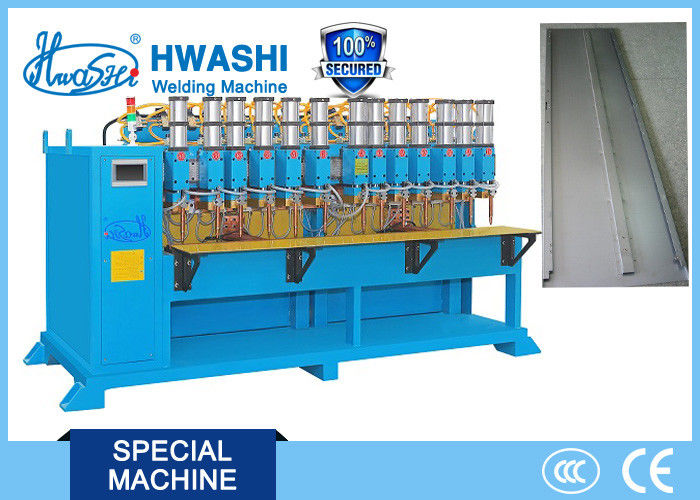

Mutiple Point Stiffener Door Plate Automatic Spot Welding Machine for Autoparts
DESCRIPTION
This machine has 13 electrodes which is for welding of stiffeners on shelves. Adopt PLC to make welding program.
Main body: It adopts longitudinal stress body and good quality thick steel plate to ensure the strength and stability of the main body.
Welding Control System: The secondary which is controlled by microcomputer will identify the output of current automatically in order to guarantee the constant current of each welding spot. In the meantime, the control system is equipped with the function of voltage compensation which is used for the automatic detection of the voltage change in order to ensure the constant strength of the welding spot.
Pressurized Mechanism: Multiple pressurized mechanisms are adopted to drive the row welding electrodes to conduct welding to each wire respectively
FEATURE
This machine is designed as gantry type row welder for high efficient welding of steel plate/sheet. This machine is suitable for welding steel plate/sheet. The machine is designed as 20 welding heads with two sets of welding power system. It is suitable for welding the mesh within 1200x3000mm.
SPECIFICATION
- Welding electrodes: 13 pcs (available on the machine)
- Welding electrode spacing can be adjusted
- Max Welding width: 2000mm
Technical Parameter:
|
No. S.N |
Item | Specification | Description |
| 1 | Input voltage | 380V ,2-phases | It can be customized, but only for 2-phases. |
| 2 |
Input current
|
400A | |
| 3 |
Output voltage
|
12V | |
| 4 |
Max.Welding current
|
34000A | |
| 5 |
Effective welding width
|
1200mm (ajustable) | |
| 6 |
Effective welding length
|
3000mm (ajustable) | |
| 7 |
Feeding Rack Mobile speed
|
0.5m/sec | Servo motor transmitting |
| 8 |
Upper welding air cylinder
|
100x100mm | Double force pressing cylinder |
| 9 | Lower cylinder | 160x100mm |
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help the customers to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal Hwashi pursue.
