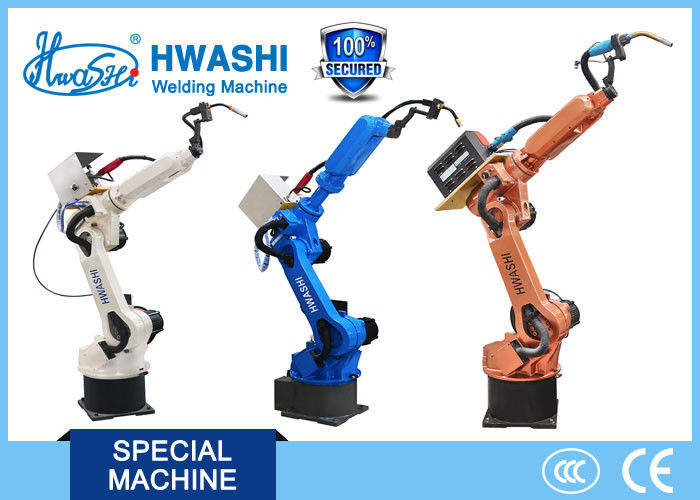

CNC Industrial Welding Robots CO2 MIG MAG TIG automatic welding robot

CNC Industrial Welding Robots CO2 MIG MAG TIG automatic welding robot

spot welding robots

automatic welding robot

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

HS-RAW08

Contact Us

Request A Quote
Product Details
Product Name:
Robotic Arm 6 Axis CO2 MIG MAG TIG With Servo Motor, CNC Industrial Welding Robot
Application:
Welding For Sheet Metal, Automobile Parts, Etc.
Size:
600x1300x1700mm
Weight:
170kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Robotic Arm 6 axis CO2 MIG MAG TIG with Servo Motor, CNC Industrial Welding Robot



APPLICATION

Applied to loading and unloading, welding, stacking transportation, gelatinization and spraying industry.



SPECIFICATION

Model

HS-RAW08

DOF

6

Driving Mode

AC servo Driving

Effective Load (kg)

6

Repeat Positioning Accuracy (mm)

±0.05

Motion Range (°)

J1

±170

J2

±120~-85

J3

±85~-165

J4

±180

J5

±135

J6

±360

Max Speed (°/S)

J1

150

J2

150

J3

180

J4

270

J5

270

J6

270

Allowable Max Torque

J4

7.2

J5

7.2

J6

5.2

Moving Radius (mm)

893

Machine Weight

75









DESCRIPTION

1. Slim, fast six-axis welding
2. robot increases productivity and achieves highest welding performance
3. Large, 50 mm thru-hole for torch cabling, sensor wires and water cooling. Eliminates cable interference,
simplifies programming and reduces cable wear.
4.Optimized mounting area for feeder reduces interference



HS-RAW Series robot improves the accuracy and efficiency



  • Improved drives and motors for accurate positioning and better repeatability.
  • Slim and compact design allows closer installation in less floor space.
  • Maintainability is improved with easier inspections and parts replacement.

Superior Spot Welding Capability

  • Industry leading advanced servo gun software features and technologies.







COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.



More than 100 kinds of welding machine are selling. We could also customize for you.



Whatsapp ,Wechat ,Tel are available to contact us
0086--133--0266--5111



          CNC Industrial Welding Robots CO2 MIG MAG TIG automatic welding robot 0

                             CNC Industrial Welding Robots CO2 MIG MAG TIG automatic welding robot 1

CNC Industrial Welding Robots CO2 MIG MAG TIG automatic welding robot 2







We have videos show how our machines work. Also professional R&D team can be provided to design machines according to your unique requirement.

Awaiting cooperating with you ! Thank you !
