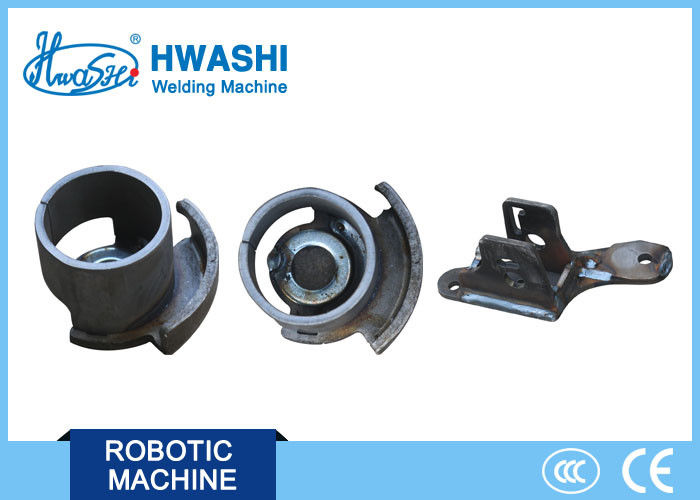

6 Axis Welding Robot Machine Auto Car Seat Accessories Spare Parts Automatic MIG/ CO2 / TIG Welder

6 Axis Welding Robot Machine Auto Car Seat Accessories Spare Parts Automatic MIG/ CO2 / TIG Welder

  • 6 Axis Welding Robot Machine Auto Car Seat Accessories Spare Parts Automatic MIG/ CO2 / TIG Welder
  • 6 Axis Welding Robot Machine Auto Car Seat Accessories Spare Parts Automatic MIG/ CO2 / TIG Welder
  • 6 Axis Welding Robot Machine Auto Car Seat Accessories Spare Parts Automatic MIG/ CO2 / TIG Welder
6 Axis Welding Robot Machine Auto Car Seat Accessories Spare Parts Automatic MIG/ CO2 / TIG Welder
Product Details:
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: HS-RAW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Welding Robots Machine, Auto Car Seat Accessories Spare Parts Automatic MIG/ CO2 / TIG Welder Application: Automatic Spot Welding Machine
Size: 600x1300x1700mm Condition: New
Warranty: 12 Months Standard: CE/CCC/ISO
Service Life: 8-10 Years Driving Mode: AC Servo Driving
Repeat Positioning Accuracy (mm): ±0.05
High Light:

auto welding machine

,

automatic welding machine

6 Axis Welding Robot Machine Auto Car Seat Accessories Spare Parts Automatic MIG/ CO2 / TIG Welder



SPECIFICATION


Name HS-R6-08
Type Standard Type
Structure 6-axis, independent multiple articulation
Wrist Load 8kg
Motion Range Max Reaching Distance 1437mm
Min Reaching Distance 410mm
Front and Back Motion Range 1023mm


Motion
Speed

Arm Rotation 225°/S
Lifting Arm 225°/S
Stretching 225°/S
Wrist Rotation 425°/S
Bending 425°/S
Reverse 629°/S
Repeated Positioning Accuracy Within ±0.08mm
Servo Motor Total Power 3400W
Brake Specs All shaft-driven brake
Installation Normal
Weight About 200kg





More detail information for welding robot jig please kindly this fileRobot welding machien jig information-HWASHI.pdf

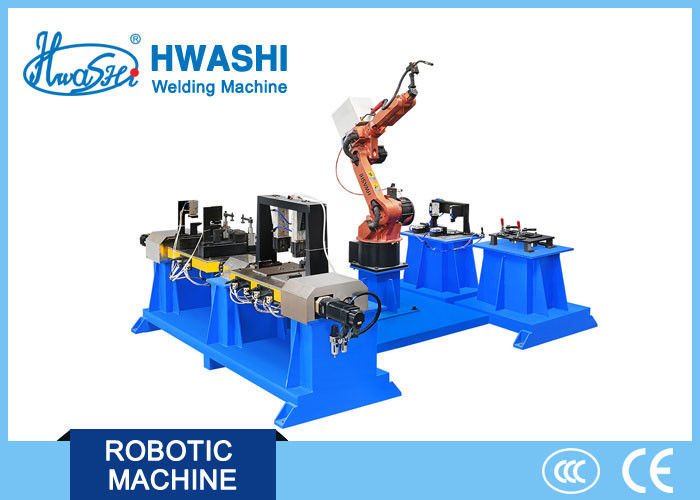

Robot Welding Working Station Flow:



  • Manual put the work piece onto the fixture 1 ,2,3,4 .

  • Start machine

  • Programming welding mould and robot movement

  • Complete welding.

  • Manual take off welded work piece or robotic take off it.


HS-RAW Series robot improves the accuracy and efficiency

  • Improved drives and motors for accurate positioning and better repeatability.
  • Slim and compact design allows closer installation in less floor space.
  • Maintainability is improved with easier inspections and parts replacement.

6 Axis Welding Robot Machine Auto Car Seat Accessories Spare Parts Automatic MIG/ CO2 / TIG Welder 0


COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.

6 Axis Welding Robot Machine Auto Car Seat Accessories Spare Parts Automatic MIG/ CO2 / TIG Welder 16 Axis Welding Robot Machine Auto Car Seat Accessories Spare Parts Automatic MIG/ CO2 / TIG Welder 26 Axis Welding Robot Machine Auto Car Seat Accessories Spare Parts Automatic MIG/ CO2 / TIG Welder 36 Axis Welding Robot Machine Auto Car Seat Accessories Spare Parts Automatic MIG/ CO2 / TIG Welder 46 Axis Welding Robot Machine Auto Car Seat Accessories Spare Parts Automatic MIG/ CO2 / TIG Welder 5
