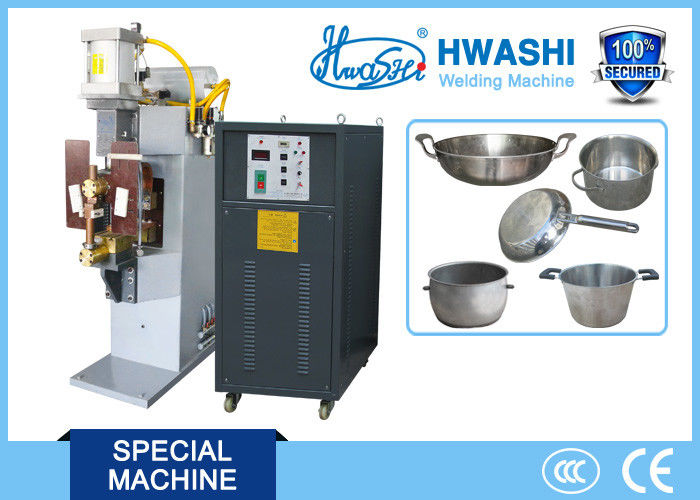

Stainless Steel Cook Pot Welding Machine , Handle Bracket Spot Welding Machine

Stainless Steel Cook Pot Welding Machine , Handle Bracket Spot Welding Machine

capacitive discharge spot welder

capacitor discharge welder

ss cook pot welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-C-15K

Contact Us

Request A Quote
Product Details
Product Name:
Stainless Steel Cook Pot Welding Machine , Handle Bracket Spot Welding Machine
Application:
Welding For SS304 Cookware Handle Bracket
Size:
2200mmX1500mmX1850mm
Weight:
2500kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Stainless Steel Cook Pot Welding Machine , Handle Bracket Spot Welding Machine





DESCRIPTION



In this resistance welding process, a bank of capacitors is charged to a pre-set voltage and then discharged through a pulse transformer. Very high current is passed in very short time resulting in fantastic projection welding quality. As the machine requires power just for charging the bank of capacitors, the power (Kva) requirement is negligible as compared to any other process of resistance welding. This results in great saving of connected load as well as power usage. As the weld time is very less (ideally 3 to 12 milliseconds), there is negligible heating or blackening of welded components and water cooling for the electrodes is not required.

This technology is ideal for projections welding, dissimilar metal welding and thin sheet spot welding. Machine users requiring excellent aesthetics, high regard for power saving and consistency in projection welding should adopt this technology.



Advantages

  • Large scale reduction in power (Kva) demand as compared to conventional resistance welding machines. For example our 10Kva CD projection welder can weld components, which are welded on 50 to 75 Kva conventional A.C. projection welder.
  • No water-cooling required for electrodes due to very short weld times. Cost of manufacturing electrodes is reduced.
  • Negligible blackening and distortion at weld joint. Excellent aesthetics. No mark on the other side of the weld.
  • No effect of normal voltage fluctuation on weld quality. Machine will not discharge (weld) unless capacitors are charged to the pre-set voltage.
  • It’s a three-phase machine and it can work on Generator set.
  • Welding near heat sensitive parts is possible.
  • Welding of similar and dissimilar metals possible.
  • Installation and operating cost of the machine is very very less. The more you weld, the more you save.



SPECIFICATION



No. Item Specification
1 Input Power Voltage (Customized) Three-Phase 380V, 50HZ
2 Input Power 15KVA
3 Welding Transformer 300KVA
4 Capacitance 70000UF
5 Max. Welding Heat 10KJ
6 Max. Working Pressure 2000N
7

Max. Open Distance Of

Welding Platform

(Big)330mm;

(Small)230mm

8 Electrode Holder (Big)¢80mm;(Small)¢65mm
9 Electrode Base (Big)¢40mm;(Small)¢32mm
10 Welding Cylinder (Big)¢200mm;(Small)¢100mm;
11 Max. Air Pressure ≥0.8mpa
12 Max. Air Flow ≥45L/Min
13 Cooling Water Flow(optional) ≥8L/Min
14 Main Body Covering Space 1700x1000mm
15 Electric Box Covering Space 1100x680mm







OTHER APPLICATION



  • Automobile components.
  • Auto electricals.
  • Sheet metal fabrication.
  • Stainless steel cookware and kitchenware
  • Leak proof welds
  • Fabricated stainless steel impellers
  • Switchgear
  • White-goods (Refrigerators, Microwaves, water heaters etc)
  • Control Panels and cabinets
  • Hollow metal doors and clean-rooms
  • Aeronautics
  • Heavy duty Transformers
  • Batteries
  • Hydraulics
  • Name plate welding
  • Semiconductors
  • Super market displays
  • Diamond tools









COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







          Stainless Steel Cook Pot Welding Machine , Handle Bracket Spot Welding Machine 0





Stainless Steel Cook Pot Welding Machine , Handle Bracket Spot Welding Machine 1





Stainless Steel Cook Pot Welding Machine , Handle Bracket Spot Welding Machine 2
