Steel Metal Floor Automatic Welding Machine , Multiple Heads DC Spot Welder

Basic Information
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-SQ-100x4
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Detail Information
Product Name: Steel Metal Floor Automatic Spot Welding Machine, Multiple Head Spot Welder Application: Welding For Steel Metal Floor.sheet Metal
Size: 2600x3200x2300mm Weight: 3000kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years
High Light:

metal welding equipment

,

head welding machine


Product Description



Steel Metal Floor Automatic Welding Machine , Multiple Heads Dc Spot Welder




DESCRIPTION



This machine is customized for multiple heads spot welding metal floor.  There is a two-side automatic fixtures which can better help to achieve cycle welding . The machine adopts the method of automatic feeding, and cylinder locates the position of product. The table adopts design of ball head so that it is more convenient to move the sheet metal. This machine is suitable for welding the steel sheet and supports within 650mm x 650mm.



Welding head number and welding power rated depends on your real welding product.

Machine can be equipped with 2 ,3,4 sets of welding powers as request. 2 sets of welding power which mens two welding electrodes work simultaneously.



Machine Composition

  1. Machine Frame:It adopts reinforced special design steel frame with C structure. The gravity reasonably ensures strength and stability of the machine frame when at high speed running.
  2. Power Source System: Adopt 4 sets of 100KVA special resistance welding transformer as the welding power source. Single-spot welding. Continuous duty cycle rate is 25%; the output current is larger than 21000A of one transformer. The executive standard is GB/15578-2008; the magnetic permeability of forced temperature control cooling water silicon steel sheet is larger than 12000GS; special cooling water subloop; It can ensure the output welding current of the whole machine is constant and powerful in order to obtain high quality, high efficiency, stable welding spots.
  3. Main Engine Control System: Adopt the self-developed intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface. Automatic testing and compensation which could guarantee the situation that the machine will be at work only when the current value is in the preset data so as to ensure the stability of welding effect and effective prevention of undesirable phenomena like loose welding and cold joint. The features of quick response and high precision of control may help you obtain high quality of welding spots.



S.N Items Wl-SQ- 100Kx2
1 Input Voltage 380V single phase
2 Power 100KVAx2
3 Input Current 410A
4 Output Voltage 12V
5 Maximum Welding Current 21000Ax4
6 Maximum Welding Model 101Kinds
7 Welding Electrode 10
8 Effective Welding Width 650mm
9 The size of working table 800x1500mm

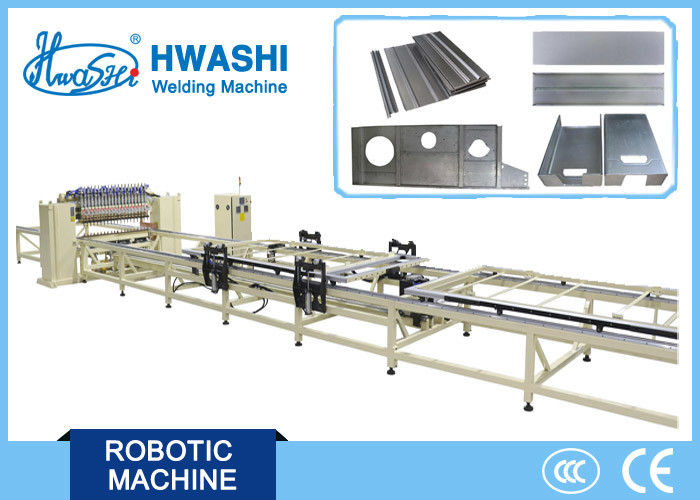

          Steel Metal Floor Automatic Welding Machine , Multiple Heads DC Spot Welder 0

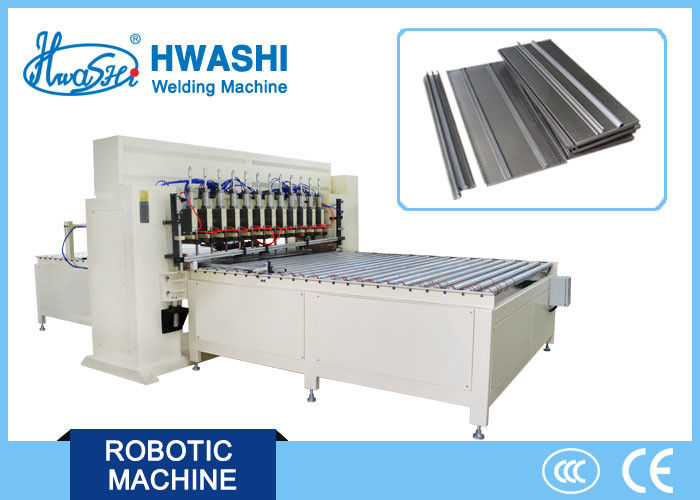

Steel Metal Floor Automatic Welding Machine , Multiple Heads DC Spot Welder 1

Machine control system panel:

Steel Metal Floor Automatic Welding Machine , Multiple Heads DC Spot Welder 2



Welding fixture and welding product.



Steel Metal Floor Automatic Welding Machine , Multiple Heads DC Spot Welder 3
