|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||sea worthy wooden package|
|Delivery Time:||7-30 working days after received your payment|
|Payment Terms:||L/C, T/T|
|Supply Ability:||50 sets per month|
|Product Name:||HWASHI Multi-point Spot Wire Mesh Welding Machine For Supermarket Shelf||Application:||Welding Of Fence Mesh|
|Standard:||CE/CCC/ISO||Service Life:||8-10 Years|
wire welding machinery

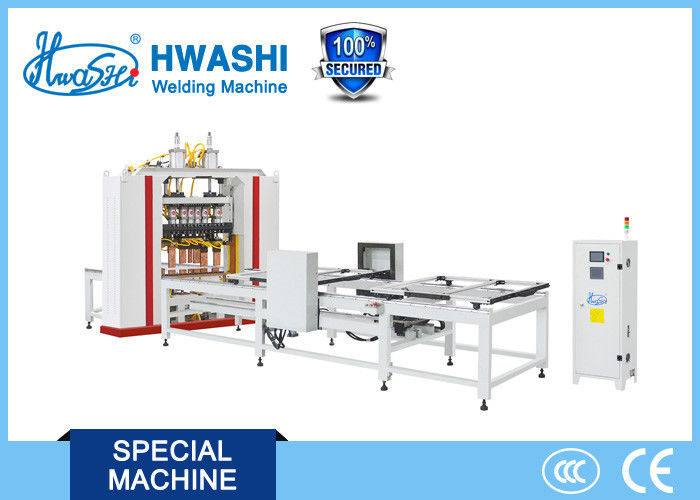

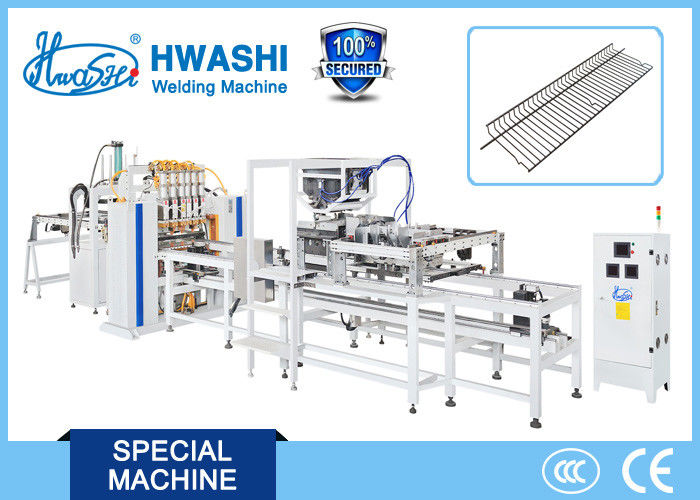

HWASHI Multi-point Spot Wire Mesh Welding Machine for Making Supermarket Shelf
Suitable for welding different size of wire mesh.
Power Source System: Adopts 2 sets of 100K MFDC transformer, The three-phase power supply, through rectified by a special inverter, is converted into 1000Hz AC voltage and then is transmitted to a medium frequency transformer. The current is rectified in order to supply DC welding current.
Welding Control System: Adopt the intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface. Automatic testing and compensation which could guarantee the situation that the machine will be at work only when the current value is in the preset data so as to ensure the stability of welding effect and effective prevention of undesirable phenomena like loose welding and cold joint. It can Store 101 sets of special welding program. The features of quick response and high precision of control may help you obtain high quality of welding spots.
Row Welding Structure: The welding heads which will be installed on the beam. The copper mould is equipped with Model T groove which can be slightly adjusted from left to right. It is convenient to adjust the distance between welding spots. Suitable for welding work pieces with multiple types of pitch. The welding program of row welding heads is flexible. You may choose to weld from the middle to the two sides or from the two sides to the middle or single welding.
Automatic Wire Filling System: Automatic feeding the wire with 2mm diameter and the max length is 1000mm. Use the servo motor to drive and use cylinder to vibrate in order to make sure the wires are in ordered arrangement. This machine is designed 4 sets of automatic wire feeding system for the horizontal and vertical wire filling.
|3||Rated Input Current||300A|
|4||Rated Duty Cycle Rate||25%|
|5||Secondary Voltage Adjusting Grade||2|
|6||Max Secondary Floating Voltage||12.5V|
|7||Secondary Max Short Circuit Current||26KA|
|8||Continuous Working Current||20KA|
|9||Welding Transformer Insulation Grade||F|
|10||Welding Machine Pressuring Curves||2 types|
|11||Welding Programs Number||101 types|
|14||Effective Welding Width||1400mm|
|15||Effective Welding Length||2000mm|
|16||Stepping Welding Moving Speed||500mm-1000mm/sec|
|17||Upper Electrode Stroke||80mm|
|18||Lower Electrode Stroke||50mm|
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO 9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
