Place of Origin:
Guangdong China
Brand Name:
HWASHI
Certification:
CCC
Model Number:
WL-X-40C
Contact Us
Detailed Description

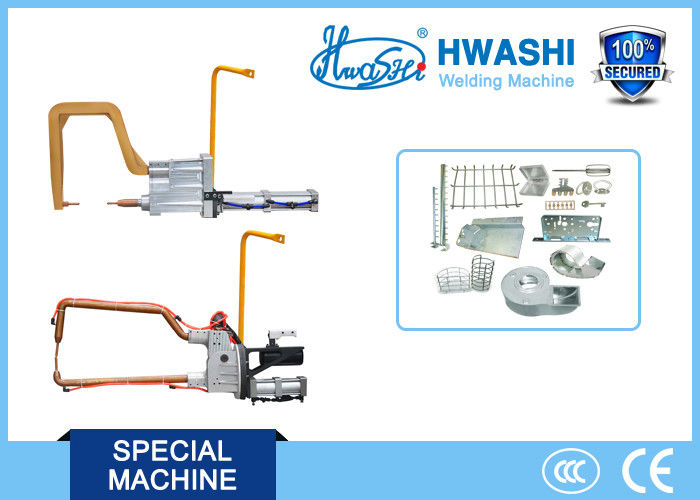

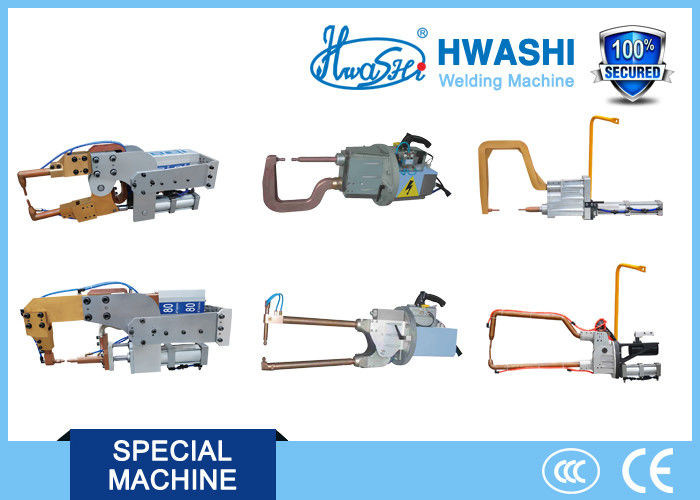

Suspension Portable Type Spot Welding Machine for Household Appliance
Suspension portable type spot welding machineconsist of welding gun, welding machine transformer,welding machine controller,water cooling system, pneumatic pressure system, the suspension device,ect. Processing method adopts work piece fixed and moving welding gun.
1. Medium Frequency Power System
2. Convenient, portable
3. High efficiency
4. Flexible operation
5. High magnetic permeability
6. Low iron loss.
Features
1. Compact structure. Convenient maintenance. Small in size and light in weight. Greatly reduce the labor intensity and largely saves the energy comsuption.
2. Electrode arm is made of high quality chromium zirconium copper allloy, ensuring the stability of welding performance, service life of welding machine and strength of electrode arm.
3.Large diameter of gas path system, with imported pneumatic components. Makes the welding gun move fast and improve production efficiently.
4. When welding,heating time is short, heat conceentration, no arc, no sparks, no welding slag, no fusion welding accumulationand no deformation. Beautiful appearance. Good quality.
5. Change thyriistor coduction angle for heat regulation by welding machine controller. Make it easy to achieve mechanization and automation. So can match with the industrial robots for fully automated welding operation.
Applicable Area
Production industries like automobile, metal plate, household appliances, etc. and repair industry like vehicle maintenance and repair; Match up with manipulator to achieve the needs of automatic production line.
Technical Parameters
Suspension Portable Type Spot Welding Machine for Household Appliance
| ITEM / MODEL | WL-25C | WL-25C | WL-35C | WL-35C | WL-40C | WL-25C |
| Load Occupation Rate 50%(KVA) | 25 | 25 | 35 | 35 | 40 | 40 |
| Secondary Voltage (V) | 2.75 | 2.75 | 4.3 | 4.3 | 4.25 | 4.52 |
| 20m of Cable Sectional Area | 8 | 8 | 10 | 10 | 12 | 12 |
| Fusion Current (A) | 35 | 35 | 50 | 50 | 60 | 60 |
| Arm Space (mm) | 100-158 | 120- | 110-330 | 120- | 110-605 | 120- |
| Minimum Arm Length (mm) | 160 | 160 | 160 | 160 | 160 | 160 |
| Electrode Tip Welding Stroke (mm) | 15-25 | 15-25 | 15-25 | 15-20 | 15-35 | 15-20 |
| Maximum Cylinder Stroke (mm) | 40 | 40 | 70 | 70 | 50 | 70 |
| Maximum Arm Length (mm) | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
Material Configuration
1. Adopt the energy storage quick charge-discharge capacitor from Japan Nippon Chemi-Con (NCC) which is the original MARGON or HITACHI; Fast discharge rate. Stable performance.
2. Adopt SEMIKON, IXYS from West Germany or Silicon controlled of IR from United States. High precision and durable. Be able to achieve high stable control on the magnitude of current.
3. Adopt Motorola integrated circuits from United States. Quick reaction. Stable performance.
4. Adopt pneumatic parts from Japan or Taiwan. Reliable performance.
5. All the devices are from imported famous brands. Ideal service life and performance.
