Carbon Steel Barbecue Wire Mesh Gantry Welding Machine Two Phase 380V 1 Year Warranty

Carbon Steel Barbecue Wire Mesh Gantry Welding Machine Two Phase 380V 1 Year Warranty

Carbon Steel Barbecue Wire Mesh Gantry Welding Machine Two Phase 380V 1 Year Warranty
Carbon Steel Barbecue Wire Mesh Gantry Welding Machine Two Phase 380V 1 Year Warranty
Carbon Steel Barbecue Wire Mesh Gantry Welding Machine Two Phase 380V 1 Year Warranty
Product Details:
Place of Origin: Guangdong China
Brand Name: HWASHI
Certification: CCC \ CE
Model Number: WL-SQ-50K
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US $2,000-20,000 / Set
Packaging Details: wooden packing
Delivery Time: 30 days after payment
Supply Ability: 50 Set/Sets per Month
Contact Now
Detailed Product Description
Name: Carbon Steel Barbecue Wire Mesh Gantry Type Welding Machine Condition: New
Warranty: 1 Year Input Voltage: Two-phase 380V
Input Current: 400A Max Short Circuit Current: 45000A
Welding Effective Width: 2000mm Welding Effective Length: Not Restricted
Feeder Moving Speed: 500mm/sec Application: Wire Mesh Welding
High Light:

wire welding machinery


wire welding equipment

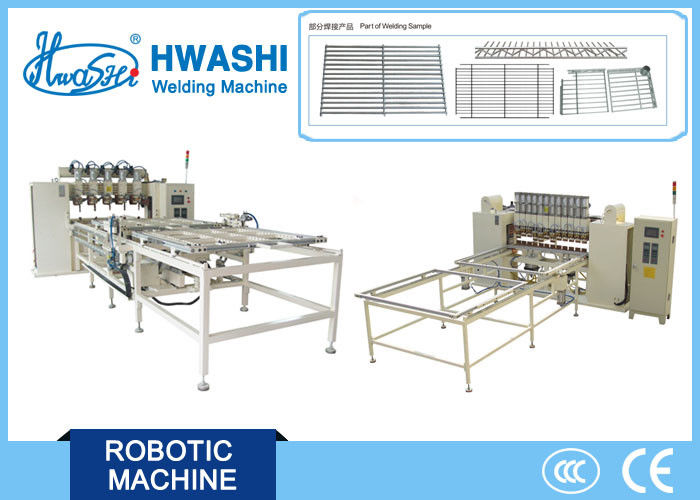

This machine is composed of gantry type structure, welding transformer, pneumatic drive device, upper and lower electrodes, electrical control system, cooling system, and PLC operation control system. The general welder for welding flat net in the market can only weld the square and rectangle net. However, except for square and rectangle, this machine could be used to weld triangle, circular and other shapes of flat net.



1.Multiple sets of welding electrodes are installed on the beam and equipped with slide guide thet could move from left to right. It is convenient to adjust the distance of welding spot so it is suitable for welding the work pieceswith different spot distance. The welding program of row welding electrode is flexible and various kind of welding programs are available. So you could choose to weld from the middle to the side or single welding. More than 1000 types of welding method is available (Create any combination via changing theparameters). Eliminate the deformation problem after welding.


2.Use compressed air to give force to welding electrode so as to achieve stable welding pressure. Each electrode pressure and cylinder stroke (0-50mm) could be adjust independently. Upper electrode will conduct vertical movement during welding process. It can be adjusted from front to back. The lower electrode could be adjusted from left to right. The fixture installation is simple.


3.The automatic feeding system is optional. Except for manual wire filling, the feeding device could be equipped with coded servo motor with quick response and high control precision. There are two sets of automatic feeder. They could be placed on double sides of double layers to achieve automatic cycle working with high efficiency and fast speed.




Input Voltage two-phase 380V
Input Current 400A
Output Voltage 12V
Max Short Circuit Current 45000A
Welding Effective Width 2000mm
Welding Effective Length not restricted
Feeder Moving Speed 500mm/sec
Upper Welding Cylinder 100x100mm
Lower Welding Cylinder 160x100mm



Suitable for welding wire mesh whose width is within 2000mm, length is not restricted.






1) Adopt silicon controlled from IXYS of United Stated with high precision and long service life.

2) Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.

3) Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system. Clear interface, easy operation, and stable performance.

4) Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within ±15%. Prompt current compensation to ensure the stable welding current of power source.

5) Adopt Taiwan TECO servo motor with powerful strength, high precision and stable control.

6) Adopt South Korea SANWO pneumatic components with stable performance.

7) The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity. Less power consumption, more powerful and stable capacity.

8) Strictly comply with CE security standard to design the machine. Lower the accident rate.


Guangdong Hwashi Technology Inc. was established in 2001. The headquater is located in Hwashi Technology industrial area,huiyang, huizhou city. It is high-tech enterprise specializing in developing, manuafacturing, and selling of resistance welding machine, automatic welding machine and industrial robot.

Hwashi company keep up with the trend of inteeligentized manufacturing in the world. It has established 5000 square meters of robot developing base in Yichun, Jiangxi and brought in the advanced processing equipments. It has high-quality technical team and workers concerning the mechanical, electronic , welding, automatic control,mechatronics, and management. Aim at providing high efficient automatic welding solutions to customers and becoming the global leading company for industrial inyelligent machinery.



1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.





1: Can you provide customized service for our product?

Answer: Yes. We will provide you the professional robotic welding system solutions according to your specific product. Only you need to send us your detailed product drawings and welding requirement, then we will come out with the customized technical proposal for you.


2. What does the whole welding robot system include?

Answer: The whole welding robot system includes the robot arm, controller, welding power source, positioners (one-axis or two axis), fixtures, welding gun cleaner, safety fence, etc.


3. What's the warranty period and delivery time?

Answer: Warranty period is 12 months. While the delivery time would be within 30 days after receiving your deposit.
