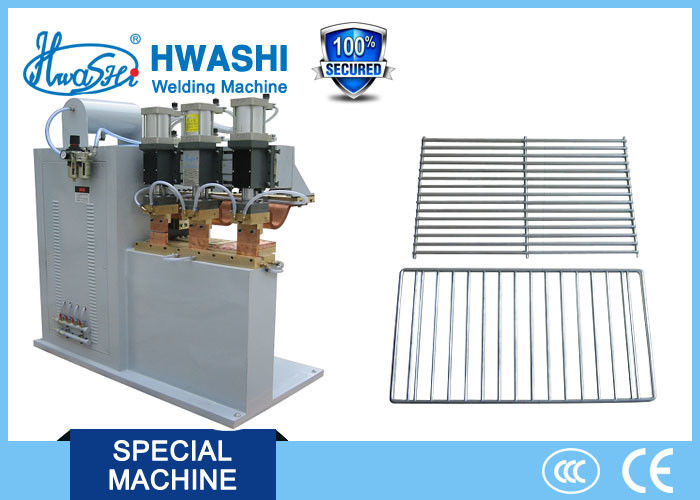

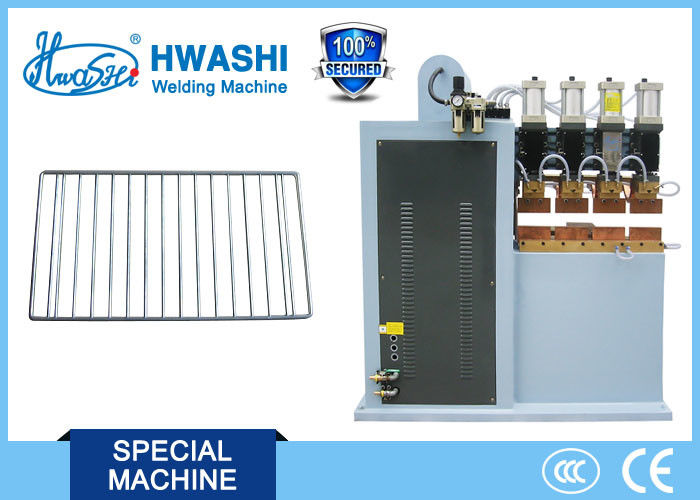

Mesh Row Wire Welding Machine Four Heads Efficiency

Mesh Row Wire Welding Machine Four Heads Efficiency

Mesh Row Wire Welding Machine Four Heads Efficiency
Mesh Row Wire Welding Machine Four Heads Efficiency
Mesh Row Wire Welding Machine Four Heads Efficiency
Product Details:
Place of Origin: Guangdong, China
Brand Name: Hwashi
Certification: CCC / CE
Model Number: WL-SQ-150K
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US $1,000 - 20,000 / Set
Packaging Details: wooden packing
Delivery Time: 7-30 days
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Input Voltage: 380V Input Power: 150KW
Input Current: 24000A -40000A Output Voltage: 12V
Electrode Distance: 150mm -200mm Adjustment Distance: 50mm
Service Life: 8-10 Years Warranty: 1 Year
High Light:

wire welding machinery


wire welding equipment



Welcom to our product. I'm Lily from Guangdong Hwashi Technology Inc. We are professional in manufacturing kinds of welding machine for 20 years. After visiting our machine, if you are interested in, please contact me. In order to provide better service and suitable machine for you,please tell me the specifications of the machine you need and what kind of product you produce.


Detailed Description

Wire mesh row welding machine

1. Utilizes the features of smooth surface, the same degree of thickness of wire diameter and large area of welding

and by using the special jig, to achieve highly effective, fast speed, and few deformation of welding.


2. Except for square and rectangle, it can be used to weld triangle, circle and even other kinds of odd plane net.


3. Notes: The welding feature of row welding is similar to gantry welding, but they are different in the size of the welding samples. The diameter of the sample of gantry welding is larger than that of row welding.



1. Welding Control System: WD-KD5 Intelligent Microcomputer Controller. The AC pulse spot welder that we produce can be matched with many types of welding controllers.


2. Silicon Controlled: Adopt the SEMIKRON, IXYS Silicon controlled from West Germany or IR Silicon controlled from United States;


3. Pneumatic Control System: Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; Adopt the quick exhaust cylinder, quick response, good servo performance.


4. Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good permeability and electrical conductivity; Less consumption of electricity; Be able to weld the metal plates like 8mm+8mm low-carbon steel.


Application Area

Continuous welding of row shape and metal wire mesh.



Technical Parameters

Wire Mesh Row Welding Machine

Model Input Voltage Input Power Input Current Row Welding Width Adjustable Stroke
V KVA A mm mm
WL—75K 380 75 24000 150 50
WL—100K 380 100 30000 200 50
WL—125K 380 125 35000 200 50
WL—150K 380 150 40000 200 50
WL—200K 380 200 50000 200 50
WL—250K 380 250 56000 200 50



Material Configuration


About Hwashi


Guangdong Hwashi Technology Inc. was established in 2001. The headquater is located in Hwashi technology industrial area, huiyang, huizhou city. It is a high-tech enterprise speacializing in developing ,manufacturing, and selling resistance welding machine, automatic welding machine and industrial robot.

Hwashi has more than 20 technicians who are experts in R&D work of electrical engineering, mechanical engineering, welding technology, quality inspection,ect. So that Hwashi has the comprehensive R&dD capability of developing new product, engineering design and mold design, product inspection and test, on-site technical support,ect.
