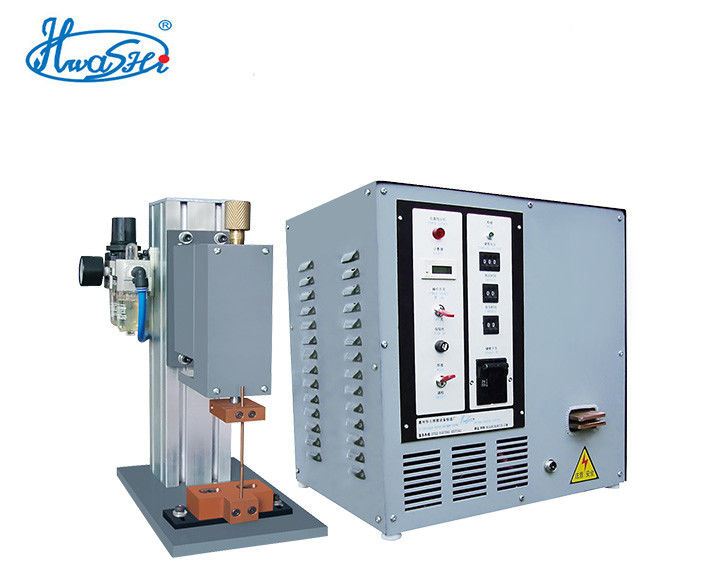

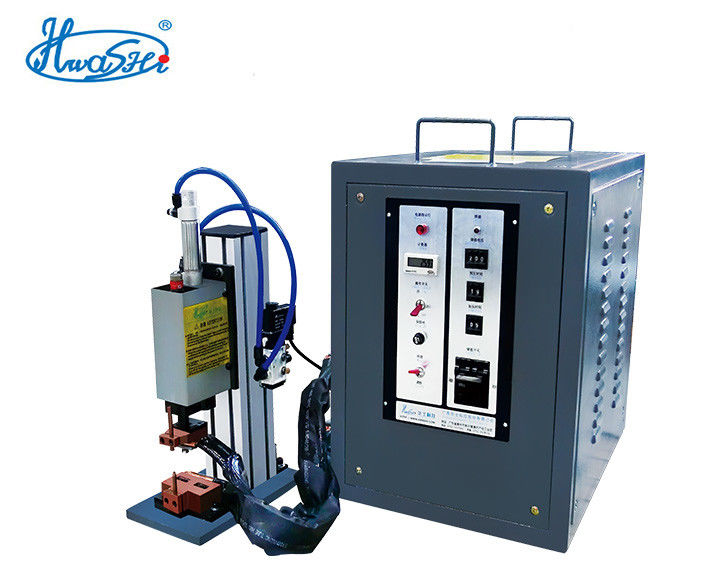

CCC Qualified Capacitive Discharge Spot Welder 220 V 8-10 Years Service Life

CCC Qualified Capacitive Discharge Spot Welder 220 V 8-10 Years Service Life

capacitive discharge welder

capacitor discharge welder

220v capacitive discharge spot welder

Place of Origin:

Guangdong China

Brand Name:

Hwashi

Certification:

CCC

Model Number:

WL-CJ-2K

Contact Us

Request A Quote
Product Details
Input Power:
220 V
Capacitance:
4500 UF
Output Heat:
500 J
Overall Dimension:
500*400*300 Mm
Welding Point:
Single-point
Warranty:
12 Months
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
US $1,000-2,000 / Set
Packaging Details
wooden packing
Delivery Time
10-15 days after payment
Supply Ability
30 Set/Sets per Month
Product Description





Description

Micro Precision Type Capacitor Spot Welding Machine

Capacitor discharge spot welder uses capacitor to store energy and to release instantaneous current. In the meantime, it concentrates large current to pass through a small point and then achieves welding effect (welding process passes through thousands of ampere current within 1/1000 second of time). Therefore, it can minimize the situation that the work piece being oxidized or mechanically deformed due to overheat during the process of welding. The output of the capacitor discharge spot welder that we produce is from 100WS to 18000WS. It is especially suitable for welding metals like red copper, bronze, brass, aluminum, silver and stainless steel, etc. Thus, this type of machine is widely applied to various kinds of industrial production and manufacturing.





Features

1. Effectively restrain the occurrence of welding spatter;

2. High working accuracy;

3. High degree of steel structure;

4. Low pressure of welding;

5. Stepless adjustment of electrode pressure range;

6. Stepless adjustment of electrode pressure stroke;

7. Flexible collocation of welding head. Indirect single-point, indirect double-point and direct single-point or direct double-point is all available.



Application Area

Welding of silver contact of low voltage appliances, welding of mini precise work pieces like crystal valve of chip, etc.









Technical Parameters

Micro Precision Type Capacitor Spot Welding Machine

Model Welding Spot Manner Input Voltage

Input

Power

Capacitance Output Heat Welding Capability Dimensions
  Single / Double V KW μF J mm×Pieces W*D*H (mm)
WL-CJ-0.5K Direct single-point 220/1 0.5 2000 180 0.4×2 500*400*300
WL-CJD-0.5K Indirect double-point 220/1 0.5 2000 180 0.4×2 500*400*300
WL-CJ-1K Direct single-point 220/1 1 3000 380 0.5×2 500*400*300
WL-CJD-1K Indirect double-point 220/1 1 2000 180 0.5×2 600*450*300
WL-CJ-2K Direct single-point 220/1 1 4500 500 1.0×2 380*650*450





Company Introduction



Guangdong Hwashi Technology Inc. was established in 2001. The headquater is located in Hwashi Technology industrial area,huiyang,huizhou city. It is a high-tech enterprise specializing in developing, manufacturing, and selling of resistance wewlding machine, automatic welding machine and industrial robot.

Hwashi has more than20 technicians who are the experts in R&D work of electrical engineering, mechanical engineering, welding technology,quality inspection,ect. So that Hwashi has the comprehensive R&D capability of developing new product, engineering design and mold design, product inspection and test,on-site technical support,ect.



Why us

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
