Hwashi 12 Volt Automatic Welded Wire Mesh Machine X Y Axis Feeder Three Phase Power Source

Hwashi 12 Volt Automatic Welded Wire Mesh Machine X Y Axis Feeder Three Phase Power Source

Hwashi 12 Volt Automatic Welded Wire Mesh Machine X Y Axis Feeder Three Phase Power Source
Hwashi 12 Volt Automatic Welded Wire Mesh Machine X Y Axis Feeder Three Phase Power Source
Hwashi 12 Volt Automatic Welded Wire Mesh Machine X Y Axis Feeder Three Phase Power Source
Product Details:
Place of Origin: Guangdong, China
Brand Name: HWASHI
Certification: CCC CE
Model Number: WL-SQ-150K
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US $2,000-20,000 / Set
Packaging Details: wooden packing
Delivery Time: 7-30 days
Supply Ability: 50 Set/Sets per Month
Contact Now
Detailed Product Description
Name: Best Price Hardware Parts Welding Machine With XY Axis Feeder Max.Welding Current: 34000 A
Feeding Rack Mobile Speed: 0.5 Mm/sec Input Current: 400 A
Effective Welding Width: 30~2200 Mm Pper Welding Air Cylinder: 100*100 Mm
Output Voltage: 12 V Effective Welding Length: Within 3000 Mm
Service Life: 10 Years Warranty: 1 Year
High Light:

wire welding machinery


wire welding equipment


Website: www.hwashi.com & http://www.spot-weldingmachine.com/


Hwashi 12 Volt Automatic Welded Wire Mesh Machine X Y Axis Feeder Three Phase Power Source 0

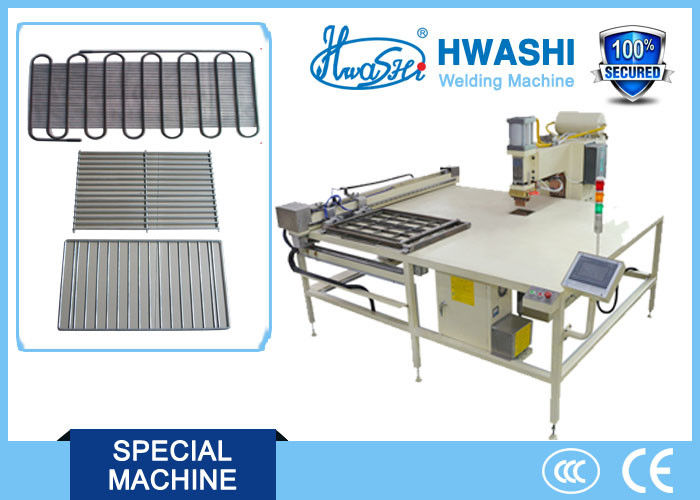

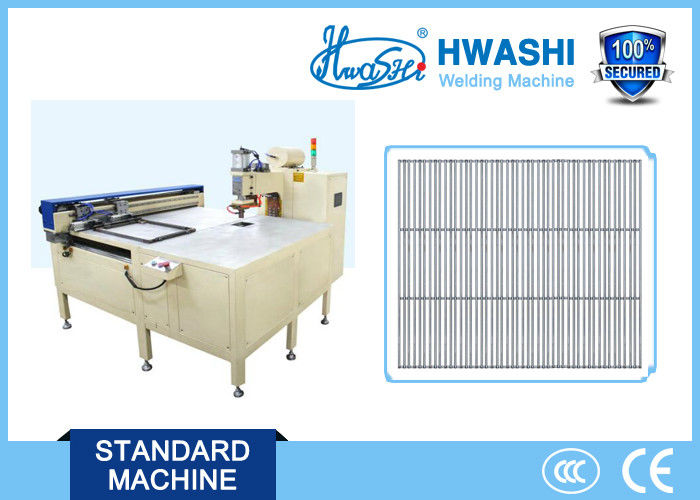

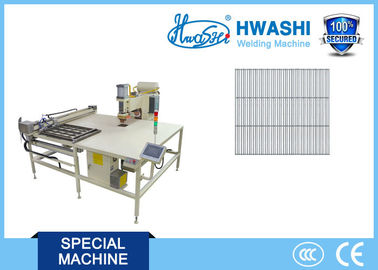

This machine is designed as single- electrode long arm type row welder with X,Y axis automatic mobile feeder. The operator only needs to input the parameters like the coordinate date and welding current, then the machine will conduct automatic welding after start. Workers only need to put and take the work piece manually. Both nomal AC pulse power supply system and energy saving type medium frequency inverter power supply system are avalible.
1.This Gantry Row welding machine is specialized in fast production of wire mesh. It is suitable for the product with more Y wire and less X wire.
2.The welding power source is three-phase. The welding manner is one-way double-layer automatic stepping feeding with 12 welding heads. (adjustable according to your product)
3.The effective welding width is within 0~ 2200mm while the effective welding length is 3000mm. (can adjust according to your product)
Functions Options:
1. Power Supply:
Type: Three-phase MF DC power supply system OR two-phase AC power supply system
Quantity: One set of power supply system or two sets of power supply system (double efficiency)
2. Feeder: Double-layer automatic feeder (cycle working, accurate stepping position via servo motor) OR manual feeder
3. Unloading Device: Automatic unloading device OR manual unloading device
4. Automatic Bending device
5. Automatic Straightening and Cutting Machine
This machine is of simple structure which will make the assembly very easy. It also can be matched with different welding equipment. The servo motor will drive the X and Y axis to run within the present PLC programming. It can max stroe 5000 welding spots and 32 sets of different welding models (Be able to memorize 18 types of wire mesh with different welding position and current). This machine is suitable for batch welding of wire mesh , reinforced door panel, air conditioning backplane, ect.
Application area
Suitable for batch production of wire mesh, sheet metal and hardware parts.
Material configuration
1.Use silicon control from SEMIKRON of West Germany or IXYS of United Stated with high precision and long service life.
2.Use integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.
3.Use Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system.
4.Use self developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within±15%.
5.Use South Korea SANWO pneumatic components with stable performance.
6.All the electronic components are from Japan Mitsubishi and Omron with ideal service life and performance.
7.The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity.
8.High precision all digital control system effectively resolve the problems of cold joint or loose welding due to the current shunt in projection welding.
9.Strictly comply with CE security standard to design the machine. Lower the accident rate.
Company introduction

Guangdong Hwashi Technology Inc. was established in 2001. The headquater is located in Hwashi technology industrial area, huiyang, huizhou city. It is a high-tech enterprise specializing in developing, manufacturing, and seeling of resistance welding machine, automatic welding machine and industrial robot.
Hwashi company keep up with the trend of intelligentized manufacturing in the world. It has established 50000square meters of robot developing base in Yichun, Jiangxi and brought in the advanced processing equipments. It has high-quality technical team and workers concerning the mechanical, electronic, welding, automatic control, mechatronics, and management. Aim at providing high efficient automatic welding solutions to customers and becoming the global leading company for industrial intelligent machinery.
Why us
1. HWASHI is the leading brand manufacturer in resistance welding industry in China for 20 years; Factory direct sale, competitive prices.
2. Customized Services and very strong Engineer Team: We can design and develop the welding machine according to your requirements(drawing). We are flexible and capable Supplier, can provide drawing /Sketch as per your requests.
3. Genuine Product with Quality Guarantee: 12 months warranty. Our machines are strictly complied with ISO9001:2008 and China Compulsory Certification(3C). All our machines have 8-10 years working time. 100% quality test by engineers before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email/phone/Whatsapp/Skype/Wechat. We have professional Technical team on services for your technical consultant. Our Engineers can adjust(installation) and train your employees to operate the machine
5. Timely Delivery: We provide just-in-time delivery.
6. Fast Response to Customers: Your satisfaction is our culture.
