AC Stainless Steel Welding Equipment Sink Water Basin Seam For Kitchen Sink

AC Stainless Steel Welding Equipment Sink Water Basin Seam For Kitchen Sink

AC Stainless Steel Welding Equipment Sink Water Basin Seam For Kitchen Sink
AC Stainless Steel Welding Equipment Sink Water Basin Seam For Kitchen Sink
AC Stainless Steel Welding Equipment Sink Water Basin Seam For Kitchen Sink
Product Details:
Place of Origin: Guangdong, China
Brand Name: Hwashi
Certification: CCC/CE
Model Number: WL-AMF-160K
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US $20,000-35,000 / Set
Packaging Details: wooden packing
Delivery Time: 30-40 days
Supply Ability: 30 Set/Sets per Month
Contact Now
Detailed Product Description
Welding Diameter: Customers' Requirement Diameter Of Welding Wheel: 100 - 120 Mm
Forming Time: 1s-10s Adjustable Max.Secondary Floating Voltage: 9.5 V AC
Welding Mode: Overlap Welding Heat Adjustment Range: 15%-99%
High Light:

stainless steel welding equipment


stainless steel spot welding



Website: www.hwashi.com

Thank you & Welcome your Inquiry!


Detailed Description

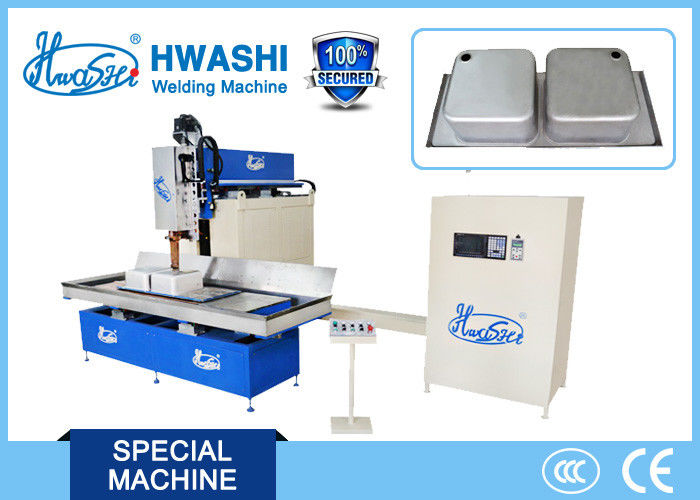

CNC Kitchen Sink Automatic Welding Machine

1. Utilizes the principle of seam welder with circular welding wheel.

2. The distance between welding spots will be reduced which will make the nugget overlap with each other. When the interlap degree exceed 1/3 of the diameter of the nugget, then a certain degree of air tightness welding will occur.

3. Medium frequency inverter power source help to save electricity. Adopt the professional automatic control system from MITSUBISHI.

4. Use the servo motor to drive axis X (locate mould) and axis Y (welding electrode) to operate under the preset procedure of PLC data.

5. It could store 15 sets of welding models at most (be able to store 15 sets of welding position and welding current of product).


Application Area
Suitable for sink welding within the range of 1600mmx600mm (adjustable according to your needs).
Technical Parameters
CNC Kitchen Sink Automatic Welding Machine

Model WL-AMF-160K CNC Automatic Stailess Steel Double Bowl Sink Welding Machine
Input Power Single-phase 380V±10% 50 Hz
Rated Capacity 160KVA
Rated Duty Cycle 25%
Maximum Secondary Floating Voltage 9.5VAC
Max Secondary Short Circuit Current 38000A
Insulation Grade of Grade F
Welding Transformer
Control Program Segment Pressurize, increase by degrees, preheat,quench,welding,quench, temper, hold, stop,welding pulse number
Time Adjustment Range of Program Segement 0-99 circle, Zero error
Control Heat Adjustment Range 15%-99%
Network Voltage Fluctuation Compensation When the rated value of network voltage fluctuates within the range of ±10%, the secondary voltage fluctuates within the range of 3%
Diameter of Welding Wheel 100-120mm
Width of welding Wheel 3-5 mm
Revolving Speed of Welding Wheel 1800-4000mm/min Adjustable
Moving Range of Axis x ≥1600mm
Moving Range of Axis Y ≥600mm
Moving Range of Axis Z ≥350mm
Rated Bleed Pressue 0.8MPa
Comsuption of Gas 1 m 3/h
Pressure of source of Water 0.2Mpa
Temperature of Source of Water 10-20°C
Consumption of Cooling Water 1000L/H


Company Introduction

Guangdong Hwashi Technology Inc. was established in 2001. The headquater is located in Hwashi Technology industrial area,huiyang, huizhou city. It is a high-tech enterprise specializing in developing, manufacturing, and selling of resistance weldijng machine, automatic welding machine and industrial robot.

Hwashi has more than 20 technicians who are the experts in R&D work of electrical engineering, mechanical engineering, welding technology, quality inspection,ect. So that Hwashi has the comprehensive R&D capability of developing new product, engineering design and mold design, product inspection and test, on-site technical support,ect.


Our Customers

our customers



Q1:What does your facrory produce?

A1: We produce and export all kinds of automatic welding machine and robots. We also can design and develop the welding machines according to your requirements.


Q2:What your standara delivery date?

A2: Usually 15-20 days. Our company provide just-in-time delivery.


Q3:Do your factory sale directly?

A3: Yes. It is our factory sale directly competitive price with high qualityand excellent after-sale service.


Q4: Do you have CE Certificate?

A4: Yes. We have CE CCC ISO.


Q5: Can you export you machines by your factory?

A5: Yes, we can.


Q6: Will you send engineer to help installing the welding machine?

A6: Yes, it need. We can send our engineer to your factory to help installing our welding machine, training the workers and make sure the welding machine running well before leaving.


Q7: If the machine get damage, what can we do?

A7: In the guarantee time (1 year), we will send the spare parts to you for free. And provide the technical consultant for anytime. If more terrible, we can send engineers to your factory.
