|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden package|
|Supply Ability:||50 sets per month|
|Warranty:||1 Year||Color:||White Black (OEM),Customized|
|After-sales Service Provided:||Online Support,Video Technical Support,Free Spare Parts,Field Maintenance And Repair Service,Field Installation||Voltage:||220V-50H/110V-60hz,50/60Hz,220V|
wire welding equipment
|Input Voltage||two-phase 380V|
|Max Short Circuit Current||45000A|
|Welding Effective Width||1200mm|
|Welding Effective Length||3000mm|
|Feeder Moving Speed||500mm/sec|
|Upper Welding Cylinder||100x100mm|
|Lower Welding Cylinder||160x100mm|

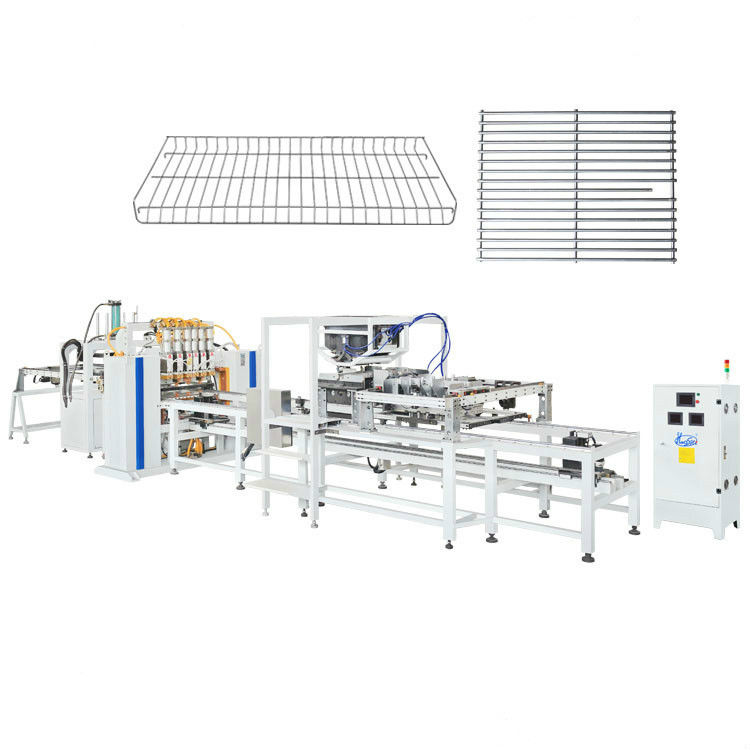

2.Wire Mesh / Wire Shelf /Wire basket Production Line
1. Wire Straightening and Cutting Machine
2. High Speed Wire Straightening and Cutting Machine
3. 2D wire bending Machine
4. 3D wire bending Machine
5. Wire frame Butt Welding Machine
6. Wire frame T Butt Welding Machine
7. Automatic Wire Mesh Welding Machine
8. Wire Trimming Machine
|Machine 1 :Wire Straightening and Cutting Machine|
Normal Wire Straightening and Cutting Machine
High Speed Wire Straightening and Cutting Machine for Φ3mm-Φ5mm wire and for Φ5mm-Φ7mm wire (2 models)
|Machine 2 :2D AND 3D Wire Bending Machine|
2D Wire Bending Machine
Automatic 2D bending Machine for Φ4mm-Φ8mm carbon steel wire and Φ4-Φ7mm stainless steel wire
3D Wire Bending Machine
Automatic 3 D bending Machine for Iron wire 7 axis
5) Maximum Bending Speed:3 turns / sec
6) Positioning Accuracy:± 0.02°
|Machine 3 :Wire Butt Welding Machine|
Wire frame Butt Welding Machine
Pneumatic AC Pulse Butt Welding Machine

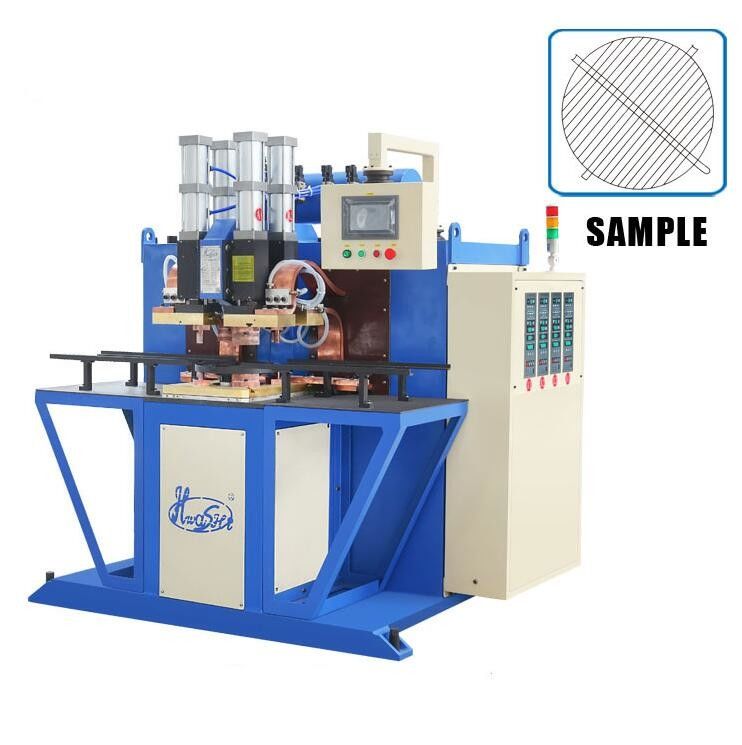

Wire frame T Butt Welding Machine
Double-Head AC T-Butt Welding Machine
|Machine 4 :Wire Mesh Welding Machine|
Manual Wire Mesh Welding Machine
1. Manual wire loading and welding machine;
5. Low efficiency
Single Head Welding Machine With X Y Axis Automatic Feeder
Automatic Wire Mesh Welding Machine for mesh within 1mx3m
Automatic Wire Mesh Welding Machine for mesh within 2mx3m
Wire Mesh Automatic Welding Machine with automatic wire filling system
|Machine 5 :Edge Wires Trimming Machine|
Wire Diameter: 2-8mm

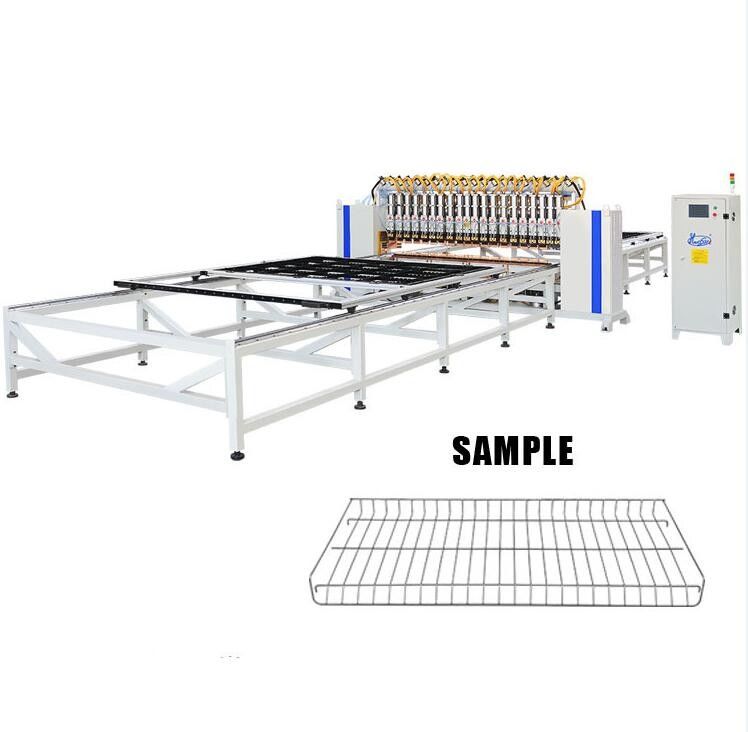

1.This Gantry Row welding machine is specialized in fast production of wire mesh. It is suitable for the product with more Y wire and less X wire.
2.The welding power source is three-phase. The welding manner is one-way double-layer automatic stepping feeding with 12 welding heads. (adjustable according to your product)
3.The effective welding width is within 0~ 2200mm while the effective welding length is 3000mm. (can adjust according to your product)
1. Power Supply:
Type: Three-phase MF DC power supply system OR two-phase AC power supply system
Quantity: One set of power supply system or two sets of power supply system (double efficiency)
2. Feeder: Double-layer automatic feeder (cycle working, accurate stepping position via servo motor) OR manual feeder
3. Unloading Device: Automatic unloading device OR manual unloading device
4. Automatic Bending device
5. Automatic Straightening and Cutting Machine
1.Main body: It adopts longitudinal stress body and good quality thick steel plate to ensure the strength and stability of the main body.
2.Welding Power Source: Since the distance between wires is long, the welding head is suitable to conduct single-point welding. So the machine will choose the suitable power 75/100/150/200KW discharging transformer which is special used for resistance welding as the welding power source. To ensure the strength and stability of the welding.
3.Welding Control System: The secondary which is controlled by microcomputer will identify the output of current automatically in order to guarantee the constant current of each welding spot. In the meantime, the control system is equipped with the function of voltage compensation which is used for the automatic detection of the voltage change in order to ensure the constant strength of the welding spot.
4.Pressurized Mechanism: Multiple pressurized mechanisms are adopted to drive the row welding electrodes to conduct welding to each wire respectively.
Suitable for batch welding of mesh, cages, fence, reinforced wire mesh. etc.
1.Use silicon control from SEMIKRON of West Germany or IXYS of United Stated with high precision and long service life.
2.Use integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.
3.Use Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system.
4.Use self developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within±15%.
5.Use South Korea SANWO pneumatic components with stable performance.
6.All the electronic components are from Japan Mitsubishi and Omron with ideal service life and performance.
7.The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity.
8.High precision all digital control system effectively resolve the problems of cold joint or loose welding due to the current shunt in projection welding.
9.Strictly comply with CE security standard to design the machine. Lower the accident rate.
