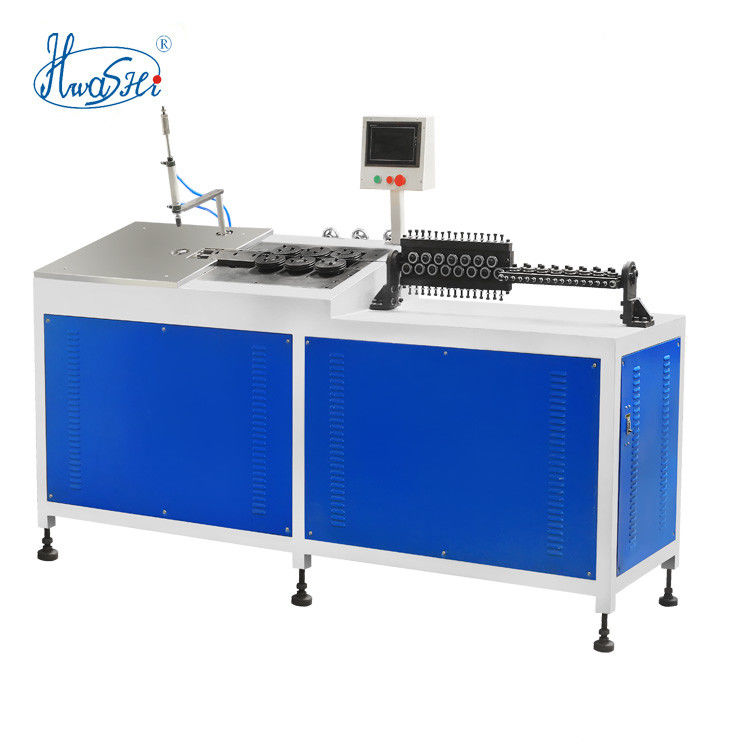

Automatic 2D CNC Wire Bending Machine, iron wire folding machine with End Forming
Detailed Description:
1. This machine is suitable for wire, stainless steel wire, galvanized wire, aluminum, water (powder) draw lines and other metal wire straightening and cutting, and then butt welding, automatic unloading.
2. Sending wire wheel, such as the use of high-quality steel cutter and vacuum heat treatment, wear resistance, longer life. Straightening block can be cast iron, alloys, plastics Wang, all shaft parts are all 40CR or 45 # steel, and after straightening process, the gear is used in all forging billet, straight and tooth surface by high frequency hardening, hardness up HRC55-58 degrees.
3, straight shaft with high pressure wheel straight before cutting the wire straightening, wire feeding pressing the pinch roller lever to adjust wire feed, the wire can even feed, direct modulation axis is the key product formed by direct modulation straightening blocks and tone straight shaft fixed to adjust the horizontal and vertical products to conform to requirements. Adjusting the pressing handle, the wire and the wire is more horizontal and vertical production rate increase or decrease. Finally, adjust white blades gun on the length of the product to meet the requirements.
4. Fast, stable performance, simple operation.
5.Touch screen.
Technical Parameters
| No |
Items |
Paremeters |
| 1 |
Machine power |
Three-phase 380V(±10％) |
| 2 |
Wire specification |
Φ2-4.5mm (can be customized) |
| 3 |
Controller |
PLC |
| 4 |
Oil cylinder |
Ø63mmX25mm |
| 5 |
Oil pump |
2P |
| 6 |
Hydraulic power |
2.2KW/3HP |
| 7 |
Tank volume |
80L |
| 8 |
Pump flow |
40L/min |
| 9 |
Line feeder motor
power |
3KW |
| 10 |
Wire feeder speed(max) |
300-800mm/s(Adjustable) |
| 11 |
Molding motor powe |
2.2KW |
| 12 |
Forming rotary machine |
2.2KW |
| 13 |
Wire rack load(max) |
800Kg |
|
Sketch drawing
