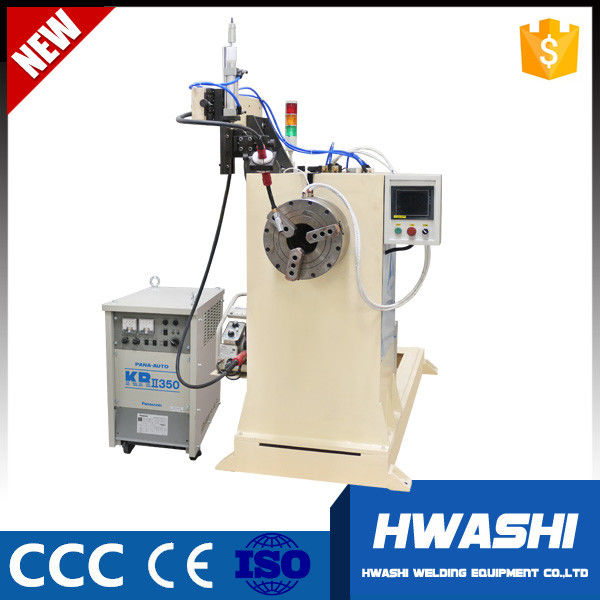

Hwashi Circular Seam Arc Welding Machine

Hwashi Circular Seam Arc Welding Machine

  • Hwashi Circular Seam Arc Welding Machine
  • Hwashi Circular Seam Arc Welding Machine
Hwashi Circular Seam Arc Welding Machine
Product Details:
Place of Origin: Guangzhou Hwashi Technology INC
Brand Name: Hwashi
Certification: CE, ISO, GS, CCC
Model Number: WL-HL-400K
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden packaging
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Input Voltage: 380V Three-phase Input Current: 15Ax3
Min Welding Thickness: 1mm Max Welding Thickness: 5mm
Work Piece Max Diameter: 100mm Work Piece Min Diameter: 50mm
Welding Gun Moving Speed: 0.5m/sec Dimensions: 1300mmX900mmX1600mm
Weight (KG): 350 KG
High Light:

PLC Circular Seam Welding Machine


0.5m/Sec Arc Welding Machine


15A Arc Welding Machine

Hwashi Control Circular Seam MIG / TIG Welding Machine with Automatic Rotating System


Our machines have been widely applied to various kinds of industries, such as kitchen utensils, automobile making, motorcycle manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.


Product Description


This machine is designed as double-gun pattern which make it possible to weld two different positions of the work piece at the same time.


This machine widely applied to weld shock absorber of motorcycle and electrocar.





Welding Power Source: Be able to choose the imported AC Pulse or DC from Japan Panasonic or single point welding power source of argon arc welding machine from famous brands of China.


Clamping Mechanism: Convenient feeding process with precise locating. Designed with air claw locating pattern on the one side, with cylinder propulsion locating pattern on the other side.


Rotating Mechanism: Adopt coding stepping motor together with belt drive, precision-machined speed reducing mechanism to form the clamping fixture and rotating device.


Welding Mechanism: Fixed welding gun while the work piece conduct uniform motion. The welding gun adopts the vertical and horizontal regulating mechanism.


Operation and Control System: Adopt the electric and hydraulic type of transmission mechanism as the whole operational net. Choose the PLC of Japan Panasonic as the central processing unit to transmit all kinds of data. Simple debugging and convenient operation.


Cooling System: Adopt parallel embedded cooling system, forced water cooling in order to guarantee the high frequency and long time working of machine.




This machine widely applied to weld shock absorber


Technical parameters


No. Item Data
1 Input Voltage 380V three-phase
2 Input current 15Ax3
3 Min welding thickness 0.2mm
4 Max welding thickness 3mm
5 Work piece max welding length 1500mm
6 Work piece max diameter 1000mm
7 Work piece min diameter 300mm
8 Welding gun moving speed 0.5m/sec


Material Configuration

1.Nanche SCR silicon controlled with high precision and long service life;


2.ABB rectifier diode with high precision;


3.Japan MITSUBISHI servo motor;


4.U.S. Motorola integrated circuit and Japan MITSUBISHI PLC;


5.Japan MITSUBISHI intelligent touch screen control system; Built-in automatic fault detection and alarm system; English operation interface with clear menus, simple

operation and stable performance;


6.South Korea SANWO pneumatic components with stable performance;


7.All the electronic components are from Japan Mitsubishi with ideal service life;


8.High precision, all digital control system can effectively solve the cold joint and loose welding due to the

current shunt of multiple-point projection welding;


9.Safety in use: the manufacturing process is strictly complied with the European Union "CE" safety
