Electrode Stroke 2KVA Lithium Battery Spot Welder

Electrode Stroke 2KVA Lithium Battery Spot Welder

500UF Lithium Battery Spot Welder

2KVA Lithium Battery Spot Welder

50mm Electrode Stroke Spot welders

Place of Origin:

Guangzhou Hwashi Technology INC

Brand Name:

Hwashi

Certification:

CE, ISO, GS, CCC

Model Number:

WL-C-2K

Contact Us

Request A Quote
Product Details
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
Rated Capacity:
500UF
Rated Duty Cycle:
25%
Max. Welding Thickness:
1+1 Mm
Electrode Stroke:
50mm
Usage:
Welding Of Lithium Battery Pin
Dimensions:
545x550x1250mm
Weight (KG):
125 KG
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
wooden packaging
Delivery Time
15 working days
Payment Terms
L/C, T/T
Supply Ability
30 sets per month
Product Description



HWASHI Factory Outlet 2KVA Capacitor Discharge Lithium Battery Spot Welder/Battery Spot welders





Product Application

HWASHI 2KVA Capacitor Discharge Lithium Battery Spot Welder is a kind of electrical energy storage spot welder, which is used to charge the capacitor after rectifier rectification of AC power, and then the stored electric energy is converted into a low electric voltage, and the energy is relatively concentrated and stable pulse current, then the metal is fused through the resistance heat generated at the contact point of the welding workpiece.

In the meantime, HWASHI 2KVA Capacitor Discharge Lithium Battery Spot Welder concentrates large current to pass through a small point and then achieves welding effect (welding process passes through thousands of ampere current within 1/1000 second of time). Therefore, it can minimize the situation that the workpiece being oxidized or mechanically deformed due to overheating during the process of welding.





Main Features

Efficient energy saving, low instantaneous power from the grid, high power factor, low cost capacitor discharge welding machine china, low impact on the grid, energy saving, stable output, and good consistency. Solid welding, no discoloration, save polishing process, high efficiency.

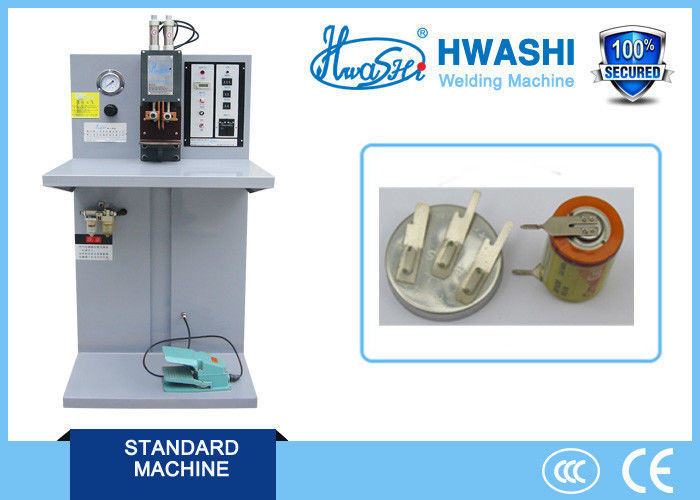

Electrode Stroke 2KVA Lithium Battery Spot Welder 0

Main Body

Adopt the reinforced special designed steel structure as the body. Reasonable stress center of gravity to ensure the stable intensity of the main body when conducting fast speed welding. In the meantime, it could provide stress supporting point and working platform for other actions. Please rest assured to buy our stainless steel capacitor discharge spot welding machine, we will provide you with a capacitor discharge spot welding machine factory price.



Power Source

The design uses a 2K (500J) capacitor discharge method as a welding power source. Adopt Japanese "NIPPON CHEMI CON"(NCC225UF/475V)high quality brand urgent charge-discharge special capacitor; High-speed charging and discharging voltage circuit, and fast charge-discharge special capacitance. Every minute charge-discharge cycle count as to 124 times (set to 100V) with quick speed, high efficiency; Digital adjustment of electric voltage, the adjustable voltage from 0 to 425V. Accuracy for fluctuation is 1v which can help to guarantee the welding accuracy. And we can offer low cost capacitor discharge welding machine china as much as possible.

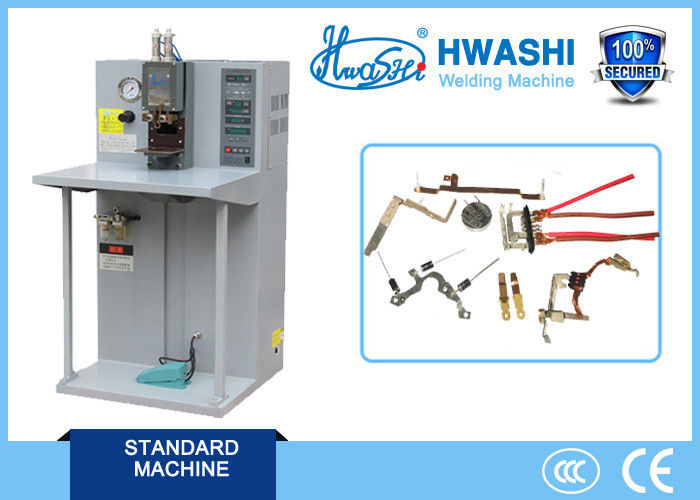

Electrode Stroke 2KVA Lithium Battery Spot Welder 1



FAQ

1. Are you manufacturer or trading company?

Answer: We are welding machine manufacturer. We have been in the welding industry for 20 years. We have the rich experienced technical team which can provide you the most professional advice.


3. What information do you need to give me proper recommendation?
Answer:
In order to recommend you the suitable machine model, please send us the detailed information regarding your product. Like material, thickness, welding position, minimum and maximum size of product, welding requirement, etc. It would be better if you could send us your product drawings. Then our engineer will recommend you the machine according to your welding requirement.



3. Can you provide customized service for our product?

Answer: Yes. We will provide you the professional robotic welding system solutions according to your specific product. Only you need to send us your detailed product drawings and welding requirement, then we will come out with the customized technical proposal for you.

4. What's the warranty period and delivery time?
Answer: Warranty period is 12 months.



5. Can you send engineer to our country for setting up the machine?

Answer: Yes. We will send engineer to your country to help installation and commissioning, and training. Any problems, we can also provide online service.



6. I want to know the welding quality for our product, what should I do?

Answer: You can send your samples to our factory to do test welding. After test welding, we will send the welding video and pictures to you for reference. Also we will send the samples back to you for verification.
