Glass Lid 12KVA Stainless Steel Spot Welding Machine

Glass Lid 12KVA Stainless Steel Spot Welding Machine

Glass Lid 12KVA Stainless Steel Spot Welding Machine
Glass Lid 12KVA Stainless Steel Spot Welding Machine
Glass Lid 12KVA Stainless Steel Spot Welding Machine
Product Details:
Place of Origin: Guangzhou Hwashi Technology INC
Brand Name: Hwashi
Certification: CE, ISO,CCC
Model Number: WL-C-12K
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden packaging
Delivery Time: 7-30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Application: Stainless Steel Glass Belt ,car Belt Welding Welding Width: 25mm
Warranty: 12 Months Service Life: 8-10 Years
Size: 1000mmX1200mmX1850mm
High Light:

12KVA Stainless Steel Welding Machine

,

4500J Stainless Steel Welding Machine

,

Capacitor Discharge Strip Spot Welder

Glass Lid Steel Belt Welding Machine Technical Pro...

SPECIFICATION

Model WL-C-12K
Voltage 380 V
Power 12KVA
Energy Storage 4500J
Capacitance 40500uF
Pressurization 1000kg
Welding Width 30 mm
Closure 130-230mm
Platform Distance 260mm
Electrode Distance 490-540mm
Cooling Water 15Lit/min





DESCRIPTION



  • 1. 25 mm Glass Pot Steel Belt Capacitor Discharge Welding Machine Price
  • 2. Instantaneous current
  • 3. Welding process passes through thousands of ampere current within 1/1000 second of time.
  • 4. Minimize oxidation and mechanical deformation.
  • 5. Output is from 100WS to 18000WS.
  • 6. Suitable for welding all kinds of metals like red copper, bronze, brass, aluminum, silver, stainless steel, etc.



FEATURE



1. Wide Application: Be able to weld 25-50mm of nonferrous metals strip.



2. Firm and Good Looking: Firm welding; No black coating on the welding spots so no polishing process is needed; Want to know more just click contact !



3. Electricity and Energy Saving: This machine gets low surge power from the power grid and the power factor is high. Compared with the common AC machine with the same capability, it uses only 1/7 to 1/10 of the power.





APPLICATION

Especially suitable for welding those exporting products which have high requirement on good looking. Welding of different size stainless steel belt.



Welding Samples

Glass Lid Steel Belt Stainless Steel Welding Machine ,  Stainless Steel Strip Spot Welder





MATERIAL CONFIGURATION



1. Adopt the energy storage type quick charge-discharge capacitor from Japan Nippon Chemi-Con (NCC) which is originated from MARGON or HITACHI; Fast discharge rate. Stable performance.



2. All the devices are from imported famous brands with ideal service life and performance



3. Adopt Motorola integrated circuits from United States. Quick response. Stable performance.



4. Adopt pneumatic parts from Japan or Taiwan with reliable performance.



5. Adopt SEMIKON from West Germany, IXYS or IR Silicon controlled from United States. High precision and durable. Be able to achieve high stable control on the magnitude of current.



Glass Lid Steel Belt Stainless Steel Welding Machine ,  Stainless Steel Strip Spot Welder

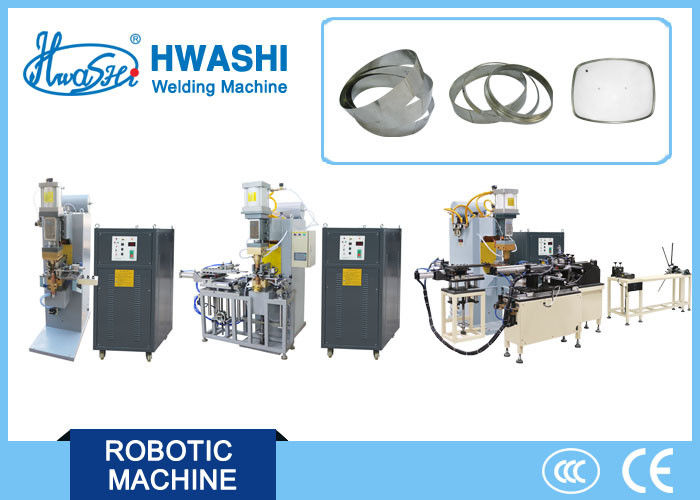

Glass Pot Steel Belt Capacitor Discharge Spot Welding Machine







Type Picture Basic information

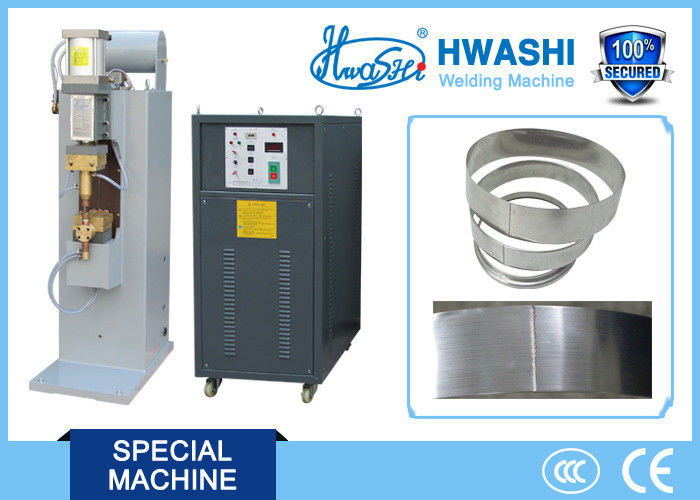

Manual Steel Belt Welding Machine WL-C-15K .jpg Normal glass lid steel belt welding machine. Low welding quality and low production efficiency.

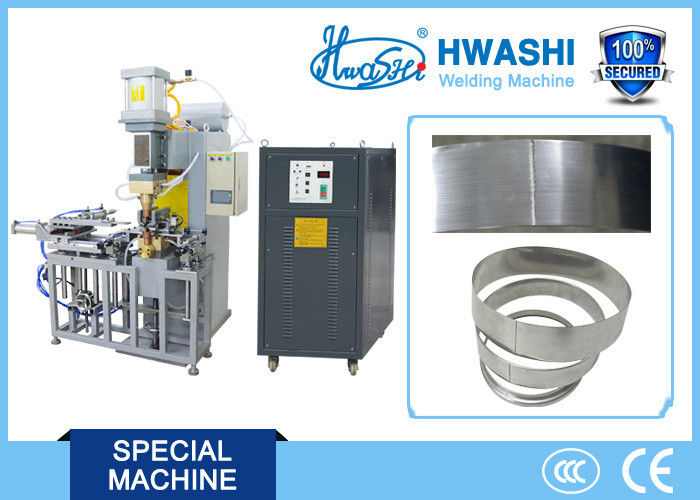

Spot welding machine + automatic overlap device WL-C-15K.jpg

Manual loading steel belt, machine will automatic overlap welding products and welding it.

Enhance welding time and lower accident when welding.

Spot welding machine +automatic overlap device + electrode grinding machine +.jpg Automatic overlap and welding , as well as automatic grinding electrode after using one period.

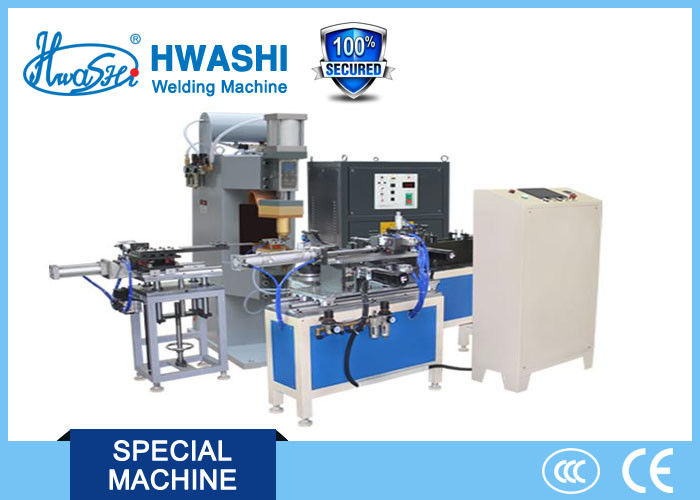

Spot welding machine +automatic overlap device + electrode grinding machine+automatic feeding system new glass lid steel belt welding machine.jpg This machine can achieve full automatic feeding belt and cutting belt, overlap and welding.





COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding field in China for 20 years; Factory direct sale, hiigh quality with moderate price.

2. Customized Service: Customized welding machine according to your requirement.

3. Quality control: Our machines are strictly complied with CE Certification and China Compulsory Certification as well as ISO9001:2000.

4. Waranty:One year warranty. Our machines enjoy 8-10 years service life. 100% guarantee

5. Test welding before delivery.Just-in-time delivery.

6. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

7. Prompt Response to Customers: Whenever you want we are here for you.Your satisfaction is the goal we pursue.
