| Place of Origin: | China |
| Brand Name: | HWASHI |
| Certification: | CE/CCC/ISO |
| Model Number: | WL-C-2K |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | sea worthy wooden package |
| Delivery Time: | 7-30 working days after received your payment |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 50 sets per month |
| Product Name: | WL-C-2K Capacitor Discharge Welding Machine For Electrical Parts | Application: | Welding For Electrical Parts |
|---|---|---|---|
| Size: | 900mmX1100mmX1550mm | Weight: | 200kg |
| Condition: | New | Warranty: | 12 Months |
| Standard: | CE/CCC/ISO | Service Life: | 8-10 Years |
| High Light: | 2KW Capacitive Discharge Welder,500J Capacitive Discharge Welder,18000A Batteries Cell Welding Machine |
||

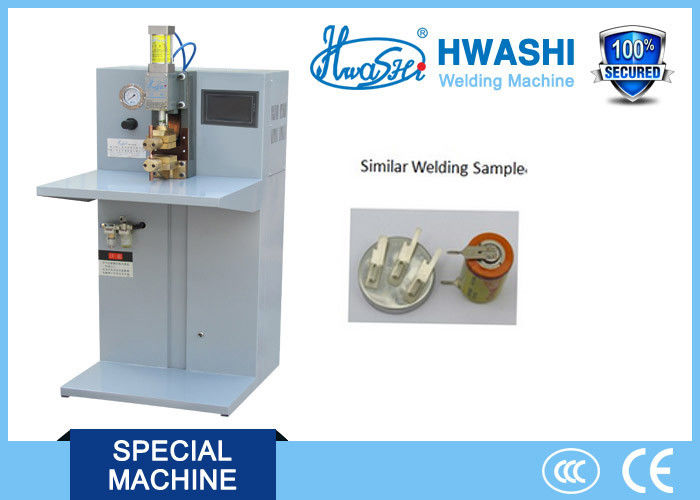

WL-C-2K Capacitor Discharge Welding Machine for Batteries Cell
SPECIFICATION
|
No. |
Item |
Data |
Note |
|
1 |
Input Voltage |
Two-Phase 220V50HZ |
Able To Be Customized |
|
2 |
Duty Cycle Rate |
20% |
|
|
3 |
Rated Power |
2KW |
Instant Current When Charging(About 50ms) |
|
4 |
Output Voltage |
10V |
|
|
5 |
Output Heat |
500J |
Equal To 500WS |
|
6 |
Max Short Circuit Current |
18000A |
|
|
7 |
Capacitance |
4000UF |
|
|
8 |
Electrode |
￠16mm |
|
|
9 |
Cylinder |
￠25x25mm |
Stroke 25mm |
|
10 |
Pressure Adjustment |
0-6Kg/Cm² |
Rotary Knob Type |
|
11 |
Starting Mode |
Foot Pedal |
Pedal Switch |
|
12 |
Machine Dimension |
665x550x1200mm |
|
|
13 |
Weight |
200Kg |
|
APPLICATION
Be able to applied to welding of all kinds of electronic parts.
DESCRIPTION
The capacitor welding machine concentrates large current to pass through a small point and then achieves welding effect. Therefore, it can minimize the situation that the work piece being oxidized or mechanically deformed due to overheat during the process of welding.
Machine Usage Condition
|
Electricity Requirement |
Power Source Requirement |
2KVA two-phase |
|
Power Line |
≥2.5mm² |
|
|
Air Switch |
≥15A |
|
|
Gas Requirement |
Pressure |
≥6Kg/cm² |
|
Pressure Flow |
≥20L/min |
|
|
Air Inflow Connecting Pipe Inner Diameter |
￠8mm |
|
|
Site Requirement |
Cover an area of (length ×width ×height) |
700×600×1200 mm |
MATERIAL CONFIGURATION
1. Adopt the energy storage type quick charge-discharge capacitor from Japan Nippon Chemi-Con (NCC) which is originated from MARGON or HITACHI; Fast discharge rate. Stable performance.
2. Adopt SEMIKON from West Germany, IXYS or IR Silicon controlled from United States. High precision and durable. Be able to achieve high stable control on the magnitude of current.
3. Adopt Motorola integrated circuits from United States. Quick response. Stable performance.
4. Adopt pneumatic parts from Japan or Taiwan with reliable performance.
5. All the devices are from imported famous brands with ideal service life and performance.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
