|Place of Origin:||China|
|Model Number:||WL-SQ-MF 100K|
|Minimum Order Quantity:||1 set|
|Packaging Details:||wooden package|
|Delivery Time:||30 working days after received your payment|
|Payment Terms:||L/C, T/T|
|Supply Ability:||50 sets per month|
|Product Name:||HWASHI Automatic Spiral Fan Guard Spot Welding Machine, Wire Looping And Welding Machine||Application:||Suitable For Wire Spiral Fan Guard Welding|
|Standard:||CE/CCC/ISO||Service Life:||8-10 Years|
100KVA Spot Welding Machine,
Spiral Fan Guard Spot Welding Machine,
Wire Looping Welding Machine

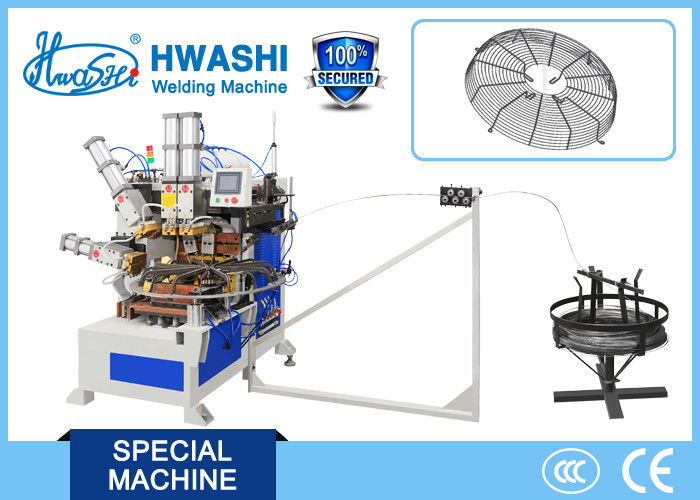

HWASHI Automatic Spiral Fan Guard Spot Welding Machine, Wire Looping And Welding Machine
This machine is special for automatic coil winding, welding and rotating of spiral fan guard. The machine is equipped with 3 sets of welding heads, automatic rotating system, and automatic wire feeding and winding system. Operator only needs to put the wire into horizontal fixture, the coil winding system will operate automatically. Then the welding electrode will be operated separately to weld the spiral wire fan guard.
This machine can achieve automatic rotation, mobile, and welding so as to increase product quality and efficiency and lower the production cost. It helps to solve the defects of unstable quality and low efficiency.
Put the wire skeleton onto the fixture manually——Then the wire will fixed by wire winding mechanism——press start button——Automatic winding institutions cooperate with rotary motor will send the wire into the mould in turns.——winding completed——cut the wire and fixed the wire at the end——start welding——Welding mechanism conduct welding automatically according to the setup program——rotary motor rotate mold automatically, which can make work piece conduct welding in turns——welding completed——the work piece will be taken out of the mold automatically by unloading cylinder——work piece unloading——the equipment work circularly.
Main design :
Main Body: The main body is made of reinforced good quality steel plate. According to the product, it is designed as three groups of up and down electrode, and two groups of left and right electrode. Only need to adjust the electrode moving distance can meet the requirement of welding different diameter of product. Reasonable vertical structure. Ensure the main body has enough rigidity and stability to support the machine when conducting high speed welding. The machine is equipped with slideway. The main body could offer stress supporting point and working platform for other actions.
Power Supply System: Adopt one set of medium frequency inverter 100KVA special resistance welding transformer as the welding power source. Duty cycle rate is 50%. The three-phase power supply, through rectified by a special inverter, is converted into 1000Hz AC voltage and then is transmitted to a medium frequency transformer. The current is rectified in order to supply DC welding current. This power source is different from the general type ac pulse power source because it can adjust rapidly and precisely. Small impact to the power grid and the requirement to the power grid capacity is much lower than the single-phase welder with the capacity.
Advantage: three-phase input; small impact to the power grid; medium frequency DC output; no impedance loss to the circuit; high thermal utilization factor; the precision setting of welding time is high which can reach 1/1000sec; large instantaneous current; prevent deformation and color change on the product.
Welding Control System: Adopt the self-developed HSMF1-400 intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface. Automatic testing and compensation which could guarantee the situation that the machine will be at work only when the current value is in the preset data so as to ensure the stability of welding effect and effective prevention of undesirable phenomena like loose welding and cold joint. The features of quick response and high precision of control may help you obtain high quality of welding spots.
Pressurized Mechanism: Adopt cylinder as the pressurized source which is control by good quality of imported electromagnetic valve and coordinated with precision-machined linear slide to pressure the electrode tip. The pressure of each welding head could be adjusted independently to ensure the stability of welding machine. Adopt the working manner that the bottom bears the stress from the top to guarantee the good contact, unimpeded, constant resistance value of secondary circuit and stable transmission of output current of welding transformer. Guarantee to obtain high efficient and good quality of welding spots.
Main Engine Control System: Adopt the touch screen of Japan Panasonic as the human-machine interface, English input. The PLC, as the control hub as the whole machine, is in charge of reading, transmitting and controlling all kinds of signal processing and coordinating with various external instructing transmission signal mechanism in order to ensure the validity of all orders of execution of the machine. The self-detection of all automatic testing stations effectively eradicates the occurrence of malfunction and other accidents. When the pressure, current, air pressure, hydraulic pressure, temperature or other testing signals are in abnormal situation, the machine will give an alarm to prevent any insecure accidents.
Automatic Coil Winding System: Design as X, Y, L three axle linkage mode. Conduct automatic equidistance moving, automatic rotating, automatic pressing and stepping to track mould with sliding block.
Automatic Rotating System: Servo motor and 600mm rotary table consist of rotation system. Easy adjustment, quick response and high control precision. It can achieve cycle working.
|2||Input Voltage||380V Three-Phase|
|4||Duty Cycle Rate||50%|
|5||Max Short Circuit Current||28000A|
|6||Welding Models||101 types|
|7||Max Secondary No Load Voltage||DC11.6V|
|8||Continuous Working Current||20KA|
|9||Welding Transformer Insulation Grade||F|
|10||Pressing Curve||2 types|
|12||Max Welding Width||150mm|
|13||Automatic Coil Winding Rotating Speed||300-500mm/sec|
|14||Welding Electrode Stroke||80mm|
