Place of Origin: | Guangzhou Hwashi Technology INC |
Brand Name: | Hwashi |
Certification: | CE, ISO, GS, CCC |
Model Number: | WL-SQ-MF 90Kx6 |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | wooden packaging |
Delivery Time: | 90 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 15 sets per month |
Usage: | Intermediate Bulk Container Cage Making | Voltage: | Three-phase Power Supply 380V |
---|---|---|---|
Electricity Requirement: | Three-phase Four Wires 380V±10% | Automatic Moving Speed: | 200-500mm/s Adjustable |
Power: | 400KVA,air Switch 600A | Effective Welding Width:: | 1200mm |
Effective Welding Length:: | 4000mm | Machine Size: | 3500x165000mm |
Required Operator Number: | Two People | ||
High Light: | 400KVA Tank Cage Production Machines,IBC Tank Cage Production Machines,500mm/S Welding Punching Machine |

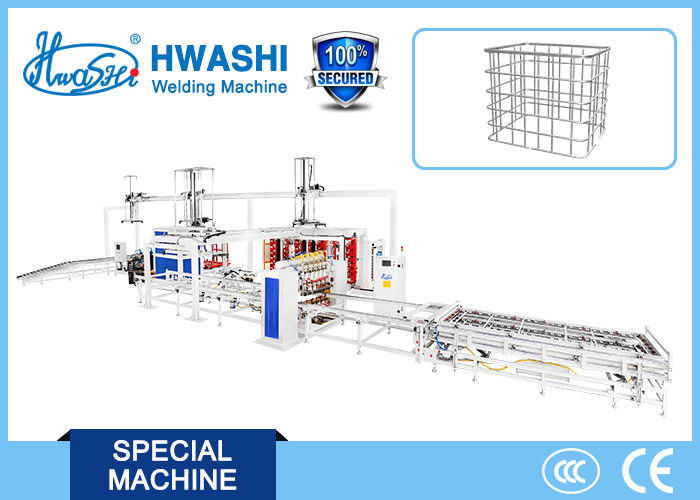

HWASHI IBC Tank Cage Automatic Production Machines (welding+bending+puching machine, automatic running)
First Step: IBC Tank Cage Welding
![]() |
|
IBC tank cage grid welding machine1) Machine Size:3500x165000mm
2) Welding Source: 6 sets MF DC Power Source 3) Feeder Platform Option: Single Layer or Double Layer 4) Unloading System Option: Manual Unloading or Automatic Mechanical Arm Unloading 5)Effective Welding Width:1200mm
6) Effective Welding Length:4000mm
|
IBC tank cage mesh Bending Machine1) Bending Method:Four columns bending at the same time
2) Bending Size:1200+1000mm
3) Loading Method:Manual or Automatic
4) Bending Force:Hydraulic
5) Required Operator Number:
Manual: 1 people
Automatic: 0 |
|
|
IBC Tank Cage Mesh Locking Machine1) Max. Working Height:1200mm
2) Loading Method:Manual:
-manual inserting and manual loading
-Automatic: automatic inserting and loading 3) Lock shape:The outside is round and the inside is backtoothed (customized)
4) Bending Force:Hydraulic+Pneumatic
5) Required Operator Number:
Manual: 1 people
Automatic: 0 |
IBC Tank Cage Punching and Hole Making Machine1) Max. Working Size:1200x1000mm
2) Loading Method:Manual/Automatic
3) Punching Shape:Customized
4) Punching Force:Hydraulic+Pneumatic
5) Required Operator Number:
Manual: 1 people
Automatic: 0 |
![]() |
![]() |
IBC Tank Cage Frame Base Welding Machine1) The design adopts horizontal structure and 7 welding heads forcompleting the welding of base frame.
2) It adopts 3 sets of MF DC 160KVA power.
3) Effective Welding Width:1200mm
4) Effective Welding Length:1000mm
5) Machine Size:2500mmx2500mm
|
Automatic Mechanical Arm Line1. The machine frame is processed as a whole, with high precision, stable and efficient operation.
2. The machine is controlled by human-machine interface +PLC programming control mode, with high degree of automation. 3. The whole automatic production line can complete the bending, locking and punching of the frame in 40 seconds. 4. The whole automatic production line can be operated by only one worker. |
