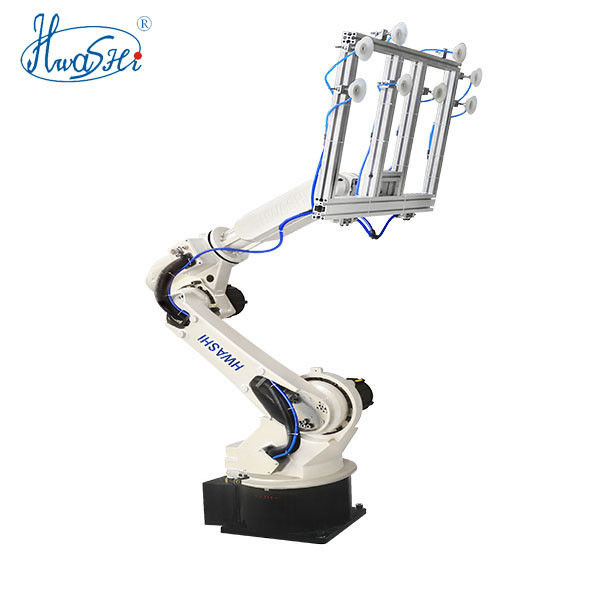

Handling Robot Arm 6 Axis Manipulator Robot Arm for Handling, Loading and Unloading
1. Welding system: Panasonic MIG or TIG welding machine with automatic wire feeding system. Stable performance.
2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.
3. Welding gun system: famous brand TBI welding gun.
4. Welding gun cleaning and wire cutting system: TBI brand.
5. Working station positioner: It is designed with two sets of working table. Single table could achieve 360 degree rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.
6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.
7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.
8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.
Main Features:
According to the product requirement, the machine will be designed as follows:
1. Positioner, manual loading;
2. Cylinder for clamping the product;
3. Cylinder to turn over the fixture;
4. Robot automatic welding;
5. Manual unloading the product;
6. Welding gun cleaner device
SPECIFICATION
|
Model |
HS-RL-10 |
|
|
DOF |
6 |
|
|
Driving Mode |
AC servo Driving |
|
|
Effective Load (kg) |
6 |
|
|
Repeat Positioning Accuracy (mm) |
±0.05 |
|
|
Motion Range (°) |
J1 |
±170 |
|
J2 |
±120~-85 |
|
|
J3 |
±85~-165 |
|
|
J4 |
±180 |
|
|
J5 |
±135 |
|
|
J6 |
±360 |
|
|
Max Speed (°/S) |
J1 |
150 |
|
J2 |
150 |
|
|
J3 |
180 |
|
|
J4 |
270 |
|
|
J5 |
270 |
|
|
J6 |
270 |
|
|
Allowable Max Torque |
J4 |
7.2 |
|
J5 |
7.2 |
|
|
J6 |
5.2 |
|
|
Moving Radius (mm) |
893 |
|
|
Machine Weight |
75 |
|
APPLICATION
Widely applied to assembling, loading and unloading, welding, stacking transportation, gelatinization and spraying industry.
COMPETITIVE ADVANTAGE
Hwashi welding robot is the world leader in robotic welding, with automated welding industry firsts such as patented multiple robot control and HS-series robots. Integrated through-the-arm cabling improves weld accuracy, improves torch access and reduces downtime. Motoman backs the performance of the HS-series arc welding robots with the industry's first two-year torch cable warranty. This patented torch cable design was key to the success of the HS-series robots and is not available from other companies. Motoman also was the first with an extended-reach (>3.0 m) robotic welding arm and has an extended-reach HS-series robot .
HS Series Robot Controller
Send your inquiry directly to us
