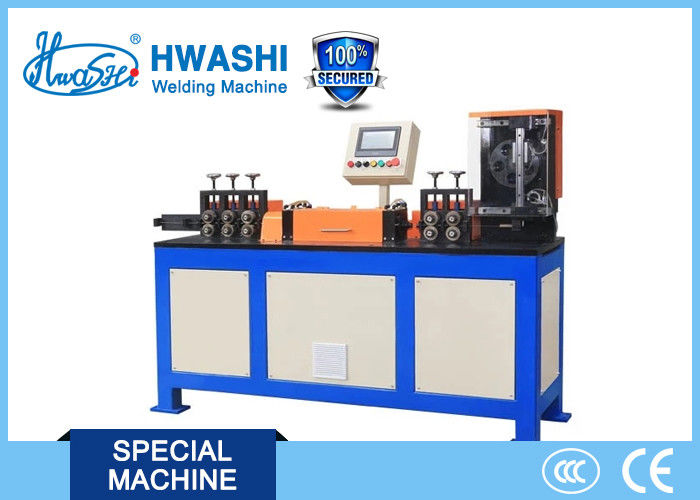

Hwashi Wire Frame Straightening Machine Cutting

Hwashi Wire Frame Straightening Machine Cutting

  • Hwashi Wire Frame Straightening Machine Cutting
  • Hwashi Wire Frame Straightening Machine Cutting
Hwashi Wire Frame Straightening Machine Cutting
Product Details:
Place of Origin: Guangzhou Hwashi Technology INC
Brand Name: Hwashi
Certification: CE, ISO, GS, CCC
Model Number: HS-HC-1.1-1.5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden packaging
Delivery Time: 7-30 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Voltage: 380V Type: Straightener & Cutter
Power(W): 0.75KW Drawing Material: Steel Iron
Color: Customer Demand Cutting Length: 50-5000mm
Wire Diameter: 1.1-3mm Max. Cutting Speed: Max. 350pcs/ Min
Wire Speed: 110m/ Min Suitable Wire Material: Normal Low Carbon Steel Wire/stainless Steel Wire/galvanized Steel Wire/copper Coated Steel Wire
Operation System: PLC Touch Screen Dimension(L*W*H): 1500x500x1100mm
High Light:

0.75KW Wire Frame Straightening Machine


Hwashi Wire Frame Straightening Machine


350pcs/ Min Cutting Butt Welding Machine

Hwashi Wire Frame Straightening , Cutting, Bending and Full Automatic Butt Welding machine


Product Application

According to the product welding requirements provided by clients, design a high quality fully automatic wire bending machine that can bend and weld the iron frame of the storage frame automatically. The bending mechanism is designed to be driven by cylinder, which is fast and accurate. The welding adopts the butt welding method, and choose the power source of 25K of power frequency pulse as the welding power source. The welding is stable, which ensures that there is no loose welding. The equipment can improve product quality and production efficiency, reduce production cost, solve defects such as quality instability and low production efficiency of manual work, and higher production efficiency and automation. We are a fully automatic wire bending machine suppliers, if you want to know more about the wire bending butt welding machine China and low cost bending butt welding machine can contact us for advice.


Fully automatic wire bending and butt welding machine workflow
1) Manually add wire to bend machine to position;
2) Firstly hydraulic cylinder will bend wire and then bending cylinder on both sides will bend two sides – The two bending in the middle will push and bend to form wire frame;
3) Bending mechanism reset in turn according to the presetting procedures;
4) Rises the butt welding machine and then clamp and weld wire;
5) Start welding, welding to complete;
6) Butt welding machine gets down, manually unload the product, automatic cycle work.

Since the second type of iron wire only needs to be bent, the bending mechanism and welding mechanism can be set to close in the process, and then the distance and stroke of the four bending cylinders can be adjusted to bend the second type of iron wire.

Special note: the product you provide is 3mm iron wire and the size of the product is 335X251mm.

Hwashi Wire Frame Straightening Machine Cutting 0

Decoiler with motor

Hwashi Wire Frame Straightening Machine Cutting 1
Decoiler without motor
Hwashi Wire Frame Straightening Machine Cutting 2



Story About HWASHI

Guangdong Hwashi Technology Inc. was established in 2001. The headquarter is located in Hwashi industrial park in Huizhou. Hwashi is a high-tech enterprise specialized in developing, manufacturing and selling of resistance welding machine, automatic welding machine and an industrial robot.

In the past 20 years, Hwashi has obtained more than 50 patents for invention patents, utility model patents, design patents, and software Copyrights. It is the drafting unit of several national standards and industry standards. Hwashi has been awarded "China famous brand", "Guangdong famous brand", "China quality credit enterprise", "world outstanding Chinese businessman association member unit", "Guangdong province science and technology innovation quality management advanced unit", "Guangdong province academician expert enterprise workstation" and many other honorary titles.

For 20 years, Hwashi keeps innovating and follow up with the latest technology in the world. Invest heavily in product development and innovation every year. In cooperation with key universities and national key laboratories and engineering technology centers in new materials and processes, the "medium frequency inverter" technology was first introduced into resistance welding equipment. Help to realize the "unmanned, intelligent" factory, the practice we have been striving for is to create efficient, energy saving, safe and environmentally friendly production environment for customers.

With the trend of intelligent manufacturing in the world, Hwashi has set up a large-scale robot development base of 50,000 square meters in Yichun City, Jiangxi province. Introducing the world's top advanced production and processing equipment in our factory. We have a technical team and high-quality workers including mechanical, electronic, welding, automatic control, electromechanical integration, and management. We are committed to providing customers with efficient automation welding solutions in order to become a leading enterprise in world-class industrial intelligent equipment.
