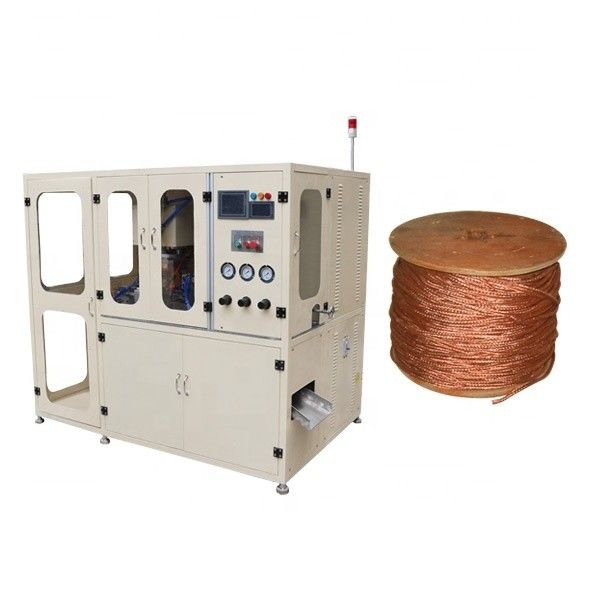

Small Braided Electrical Wire Welding Machine

Small Braided Electrical Wire Welding Machine

Small Braided Electrical Wire Welding Machine
Small Braided Electrical Wire Welding Machine
Small Braided Electrical Wire Welding Machine
Product Details:
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-AT-315
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Electrical Transformer EI Lamination Automatic MIG TIG Welding Machine Application: Welding Of EI Lamination
Size: 1300mmX900mmX1800mm Weight: 300 Kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years
Welding Gun Moving Speed: 0.5m/ Sec
High Light:

Braided Electrical Wire Welding Machine


CCC Electrical Wire Welding Machine


0.5m/ Sec Arc Welding Machine


Product Description

1. This Gantry Row welding machine is specialized in fast production of wire mesh. It is suitable for the product with more y wire and less x wire.

2. Welding power source could be two-phase AC or three-phase MF DC. The welding manner is one-way double-layer automatic stepping feeding with multiple welding heads. (adjustable according to your product)

3. The effective welding width is 1200mm while the effective welding length is 3000mm. (adjustable according to your product)

Small Braided Electrical Wire Welding Machine 0


1. Main body: It adopts longitudinal stress body and good quality thick steel plate to ensure the strength and stability of the main body.

2. Welding Control System: The secondary which is controlled by microcomputer will identify the output of current automatically in order to guarantee the constant current of each welding spot. In the meantime, the control system is equipped with the function of voltage compensation which is used for the automatic detection of the voltage change in order to ensure the constant strength of the welding spot. Pressurized Mechanism: Multiple pressurized mechanisms are adopted to drive the row welding electrodes to conduct welding to each wire respectively.


1. welding of connecting wire of electrical parts like distribution switch, disconnector, etc.Be able to weld and shear 1 to 25 square meter of singlet wire, double wire, and three-wire in one of annealed copper wire. The shearing length could be adjusted freely and the cross-section of connecting wire could be designed as different shapes like semi-circle, square, and hexagon, etc.
