Galvanized Steel Big Rubbish Bin Welding Robot Unit

Galvanized Steel Big Rubbish Bin Welding Robot Unit

Galvanized Steel Welding Robot Unit

Rubbish Bin Welding Robot Unit

Big Rubbish Bin Welding Robot Unit

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CCC/CE/ISO

Model Number:

HS-R6-08

Contact Us

Request A Quote
Product Details
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Name:
Hwashi Storage Rack Corner Welding Robot Unit
Driving Mode:
AC Servo Driving
Effective Payload:
8KG
Repeat Positioning Accuracy:
±0.05mm
Motion Range:
±360 Degree
Max Speed:
270 ° / S
Moving Radius:
893 Mm
Payment & Shipping Terms
Minimum Order Quantity
1/set
Packaging Details
Wooden box
Delivery Time
15-30 work days
Payment Terms
L/C, D/A, D/P, T/T
Product Description

Product Introduction.jpg



æ ·å“å›¾.jpg









Project Background: Galvanized Steel Big Rubbish Bin Welding Robot Unit (Applied in one of the garbage truck manufacturer plant in Saudi Arabia)





Customer Requirement:

1.Use robot to replace labor force for welding. Manual loading and unloading of product. One time fixing of the product onto the fixture.

2.Workpiece material: galvanized steel or aluminium, wall thickness: 2mm; Size: 1600x1100x1000mm

3.The workpiece should be welded from the inner curve seam to the outer curve seam. The top four edges should also be welding. The product tolerance is about 5mm.

4. The customer need the famous brand welding robot to ensure the welding quality.

5. Customer will do spot welding on the product first, then put it to the positioner to do welding.




Solutions:

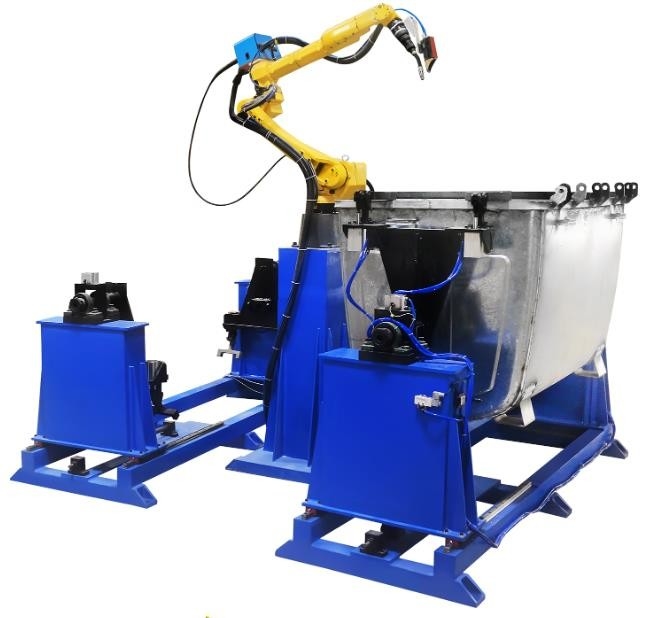

1. The complete welding robot system includes 1 set of Japan Fanuc 2m arm length robot, 1 set of SAF MIG welder from France, 1 set of laser seam tracking system from Canada Servo Robot, 1 set of automatic anti-collision welding gun, 2 sets of one-axis vertical rotation positioner, 1 set of welding gun cleaner, etc.

2. In order to guarantee the stability and consistency of welding quality, we suggest to equip with welding gun cleaner device.

3. Automatic welding is carried out by the six-axis robot MIG welder. The cylinders or fast clamps are used to fix the position of the product with the lever principle to ensure the positioning requirements of automatic welding of the robot, so as to ensure that it can be welded to each part of the product. According to the requirements of production efficiency, two sets of one axis positioner are designed, one for loading and unloading of the workpiece, one for welding.



Workflow:

1) Manual loading of the workpiece to the fixture in Station 1 positioner;

2) Start welding;

3) The robots and welding machines will do welding on the workpiece according to the presetting program;

4) Welding completed;

5) While the station 1 is being welded, station 2 is being loaded and unloaded the work piece synchronously.

6) Cycle working





Application Effect

1. The laser welding seam tracking system helps to solve the problem caused by the inconsistent welding seam. It helps the robot to find the correct welding position and then to make the welding happen.

2.

3. The positioner realizes the workpiece clamping at one time, and automatically realizes the alternating welding of the four corners of product, the deformation is effectively controlled.

3.This machine can achieve automatic welding with manually loading material. It can also improve the welding quality and welding efficiency. Whats more, it can reduce the production cost. The problem of unstable quality and low production efficiency caused by pure manual operation has been solved.

4.Robot replace manual welding. Welding industry is a high-risk industry, high temperature, arc light and welding smoke have a certain impact on the physical and mental health of workers;

5. It is an inevitable trend to use robots to replace welding robots in welding, which is not only the promotion of the market, but also the requirement of technological upgrading.
