Multi-Head Wire Mesh Automatic Welding Machine

This machine adopts a gantry type welding structure, and can be equipped with more than two sets of welding power sources. Multiple sets of welding heads are placed on the beam, and the distance between the welding points can be adjusted by moving left and right. It is designed with two-way or double-layer material racks. Two sets of feeding mechanisms are cycled automatically For welding, you only need to manually cyclize and take out the workpiece.

Application

weld metal wire mesh, goods shelf, guard rail, air conditioner mesh, dish rack ,Refrigerator Wire Rack , Wire Grill , Kitchen Wire

Shelf, iron wire mesh, wire welding machine,mesh welding machine,door reinforcing rib, air conditioner backboard etc.

Design Concept:

1. Adopt the reinforced special design steel structure body with gantry type structure.

2. Adopt the self-developed intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface.

3. Adopt double-layer cylinder as the pressurized source which is control by good quality of imported electromagnetic valve and coordinated with precision-machined linear slide to pressure the electrode tip.

4. Adopt the touch screen as the human-machine interface, Chinese-English input.

5. Be composed of the coding servo motor, precision-finished slide and automatic detecting system.

SPECIFICATION

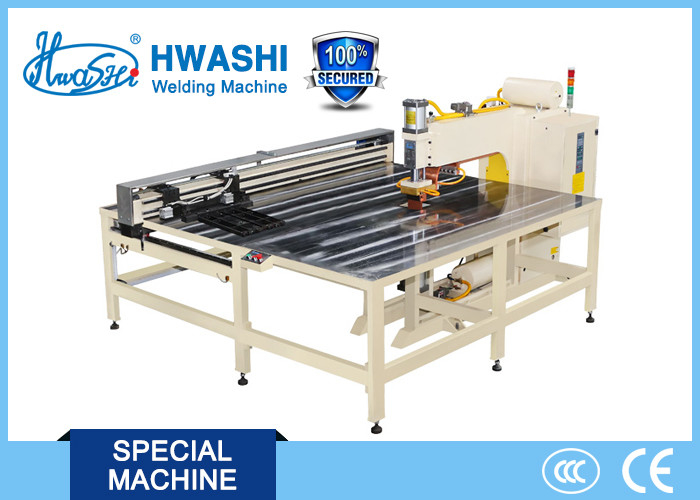

Single Head Wire Mesh Welding Machine with X Y Axis Automatic Feeder

This machine adopts a single-head long-arm type row welding structure, equipped with workpiece molds that automatically move along the X and Y axes, and inputs the coordinate data of the welding position, welding current and other data to realize automatic welding. You only need to manually place the material and take out the workpiece, which is suitable for welding mesh in the range of 1000mm X 1000mm.

Design Concept:

1.Adopt the reinforced special design steel structure body with gantry type structure.

2.Adopt the self-developed intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface.

3.Adopt double-layer cylinder as the pressurized source which is control by good quality of imported electromagnetic valve and coordinated with precision-machined linear slide to pressure the electrode tip.

4.Adopt the touch screen as the human-machine interface, Chinese-English input.

5.The feeding fixture is designed to move within the range of 1000x1000mm. It is composed of the coding servo motor, precision-finished slide and automatic detecting system.
