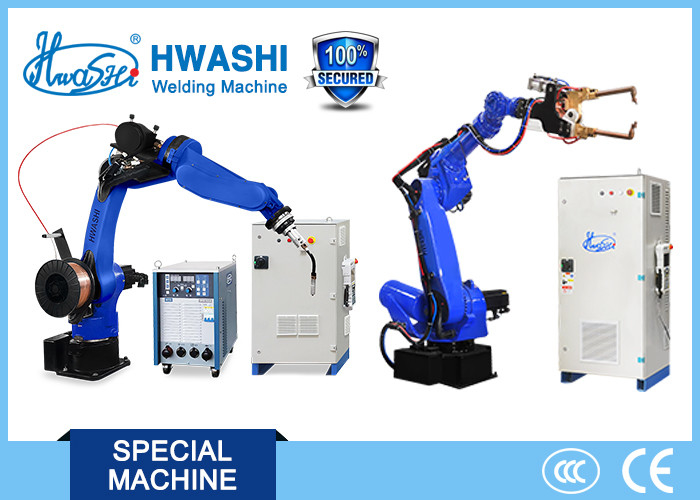

Six Axis TIG MIG Industrial Welding Robots 1400mm Moving Radius

Six Axis TIG MIG Industrial Welding Robots 1400mm Moving Radius

Six Axis TIG MIG Industrial Welding Robots 1400mm Moving Radius
Six Axis TIG MIG Industrial Welding Robots 1400mm Moving Radius
Six Axis TIG MIG Industrial Welding Robots 1400mm Moving Radius
Product Details:
Place of Origin: China
Brand Name: Hwashi
Certification: CCC
Model Number: HS-R6-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD.10000 -20000 / set
Packaging Details: wooden packing
Delivery Time: 7-30 days
Supply Ability: 30 set / sets per month
Contact Now
Detailed Product Description
Repeat Positioning Accuracy: ±0.05mm Input Voltage: Three- Phase 380V
Voltage: 380V Rated Capacity: 9kw
Rated Duty Cycle: 60% Driving Mode: AC Servo Driving
Moving Radius: 1400mm Frequency: 50Hz
Current: 20A Condition: New
Input Power: 4kVA
High Light:

TIG MIG Industrial Welding Robots

,

1400mm Industrial Welding Robots

,

1400mm mobile welding robot

Six Axis TIG MIG Industrial Welding Robots 1400mm Moving Radius





1. Welding system: Panasonic MIG or TIG welding machine with automatic wire feeding system. Stable performance.

2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.

3. Welding gun system: famous brand TBI welding gun.

4. Welding gun cleaning and wire cutting system: TBI brand.

5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.

6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.

7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.

8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.



.png







.png



CONTROLLER SYSTEM



The robot can optimize the speed according to the actual load so as to shorten the operation cycle time.


1. The robot can detect self moving and loading condition according to the built-in service information system so as to provide optimized service requirement. Longer continuous working period.


2. Embedded controller can control 6-8 axis. The operating rate could reach 500MIPS with high speed motion control fieldbus. Be able to achieve continuous trajectory teaching and on-line teaching. Equipped with remote control and diagnostic function.


3. Overall consideration of the external force such as gravity, centrifugal force, etc, in the process of robot movement, use adaptive identification control technology to improve dynamic performance of the robot.



.png
