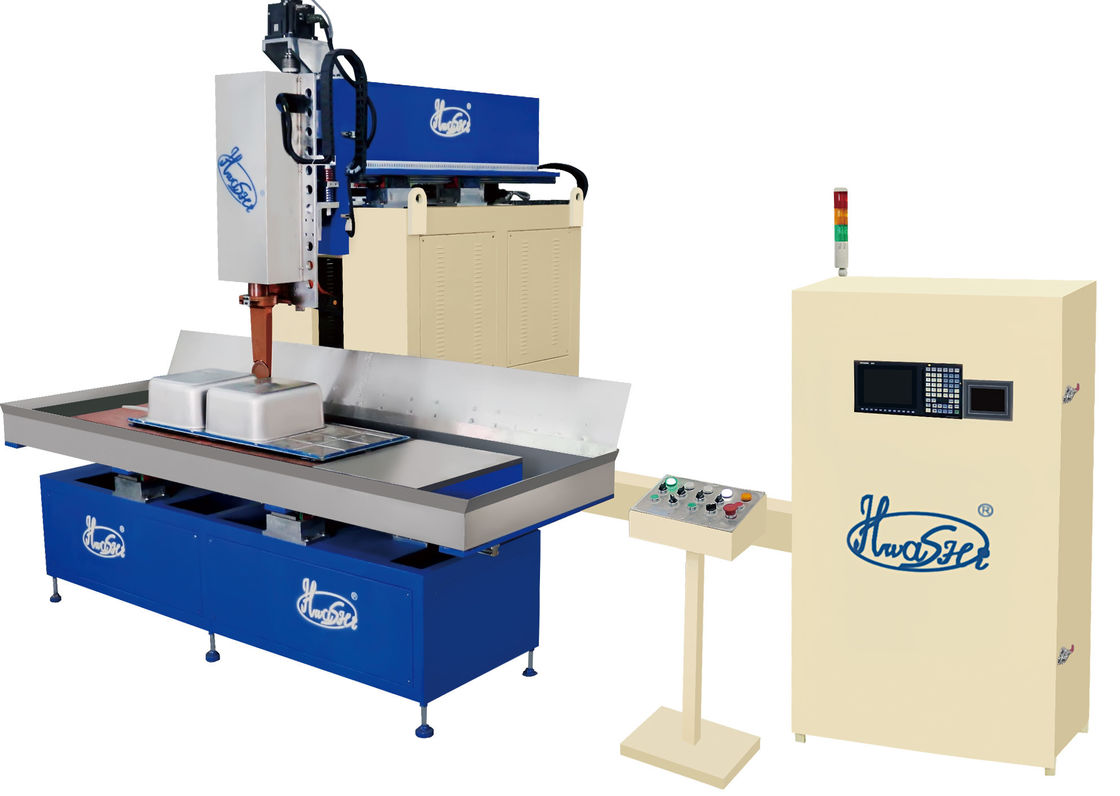

Stainless Steel Automatic Welding Machine Sink Edge Grinding HWASHI

Stainless Steel Automatic Welding Machine Sink Edge Grinding HWASHI

Stainless Steel Automatic Welding Machine Sink Edge Grinding HWASHI
Stainless Steel Automatic Welding Machine Sink Edge Grinding HWASHI
Stainless Steel Automatic Welding Machine Sink Edge Grinding HWASHI
Product Details:
Place of Origin: Guangdong , China
Brand Name: HWASHI
Certification: CE, CCC
Model Number: WL-AT-PM1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US $10,000-30,000 / Set
Packaging Details: wooden packing
Delivery Time: 45 days
Supply Ability: 50 Set/Sets per Month
Contact Now
Detailed Product Description
Grinding Wheel Diameter: 50mm Abrasive Belt Width: 50mm
Abrasive Belt Rotating Speed: 1400-2800mm/min (adjustable) X Axle Moving Range: ≥1220mm
Y Axle Moving Range: ≥620mm Z Axle Moving Range: ≥250mm
A A Sink Edge Grinding / Polishing Sink Welding Machine 50mm Abrasive Belt Widthxle Moving Range: 360 Angle
High Light:

HWASHI sink grinding machine

,

HWASHI Automatic Welding Machine

,

10KVA Automatic Welding Machine

HWASHI Italy Design High Efficiency Automatic Stainless Steel Sink Edge Grinding Machine



Model

WL-AT-PM1200

Input Power

Three-phase 380V±10% 50Hz

Rated Capacity

10KVA

Grinding Wheel Diameter

50mm

Abrasive Belt Width

50mm

Abrasive Belt Rotating Speed

1400-2800mm/min (adjustable)

X Axle Moving Range

≥1220mm

Y Axle Moving Range

≥620mm

Z Axle Moving Range

≥250mm

A Axle Moving Range

360º

Rated Air Pressure

0.8MPa

Gas Consumption

1m3/h



This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment. It is designed to use Mitsubishi professional automatic control system. You only need to input the coordinate data of the product and start the machine, the abrasive belt of the machine will conduct grinding and polishing automatically within the track of preset program. The worker only needs to put and take out the sink.



The product will be fixed on the locating mould. The servo motor will drive the X and Y axle to run within the preset data of program. The machine could store 15 types of grinding models. The grinding wheel will move along with X direction and the max moving range is 1220mm while the max moving range of Y direction is 620mm. The Z axle can conduct moving up and down within the range of max 250mm while the A axle can conduct 360ºrotating under the control of servo motor. This machine is suitable for different directions of product.







2 FEATURES OF SINK WELDING MACHINE

HWASHI Italy Design High Efficiency Automatic Stainless Steel Sink Edge Grinding Machine

  • Fully automatic.

  • Utilizes the principle of seam welder with round welding wheel.

  • Save labor cost: only one worker required put the sink into the platform and then take it away when finishing the grinding process

  • Medium frequency inverter power source which is electricity saving.

  • Enhanced function: memorize 16 sets of welding way . If you need more , we could design for you.

  • Adopt the professional automatic control system from Mitsubishi

  • Use the servo motor to drive axis X (locate mould) and axis Y (welding electrode) to operate under the preset procedure of PLC data.





3 APPLIABLT AREA OF SINK WELDING MACHINE

HWASHI Italy Design High Efficiency Automatic Stainless Steel Sink Edge Grinding Machine



Suitable for sink welding within the range of 1600mmx600mm (adjustable according to your needs)



Stainless Steel Automatic Welding Machine Sink Edge Grinding HWASHI 0Stainless Steel Automatic Welding Machine Sink Edge Grinding HWASHI 1
