2 Phase Capacitor Discharge Welding Machine WL-C-2K For Electrical Parts

2 Phase Capacitor Discharge Welding Machine WL-C-2K For Electrical Parts

50HZ Capacitor Discharge Welding Machine

HWASHI Capacitor Discharge Welding Machine

WL-C-2K capacitor discharge welder

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-C-2K

Contact Us

Request A Quote
Product Details
Product Name:
WL-C-2K Capacitor Discharge Welding Machine For Electrical Parts
Application:
Welding For Electrical Parts
Size:
900mmX1100mmX1550mm
Weight:
200kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

2 Phase Capacitor Discharge Welding Machine WL-C-2K For Electrical Parts



WL-C-2K Capacitor Discharge Welding Machine for Electrical Parts



SPECIFICATION

No.

Item

Data

Note

1

Input Voltage

Two-Phase 220V 50HZ

Able To Be Customized

2

Duty Cycle Rate

20%



3

Rated Power

2KW

Instant Current When Charging(About 50ms)

4

Output Voltage

10V



5

Output Heat

500J

Equal To 500WS

6

Max Short Circuit Current

18000A



7

Capacitance

4000UF



8

Electrode

¢16mm



9

Cylinder

¢25x25mm

Stroke 25mm

10

Pressure Adjustment

0-6Kg/Cm²

Rotary Knob Type

11

Starting Mode

Foot Pedal

Pedal Switch

12

Machine Dimension

665x550x1200mm



13

Weight

200Kg







Machine Usage Condition

Electricity Requirement Power Source Requirement 2KVA two-phase
Power Line ≥2.5mm²
Air Switch ≥15A
Gas Requirement Pressure ≥6Kg/cm²
Pressure Flow ≥20L/min
Air Inflow Connecting Pipe Inner Diameter ¢8mm
Site Requirement

Cover an area of

(length ×width ×height)

700×600×1200 mm





APPLICATION

Be able to applied to welding of all kinds of electronic parts.



DESCRIPTION

The capacitor welding machine concentrates large current to pass through a small point and then achieves welding effect. Therefore, it can minimize the situation that the work piece being oxidized or mechanically deformed due to overheat during the process of welding.

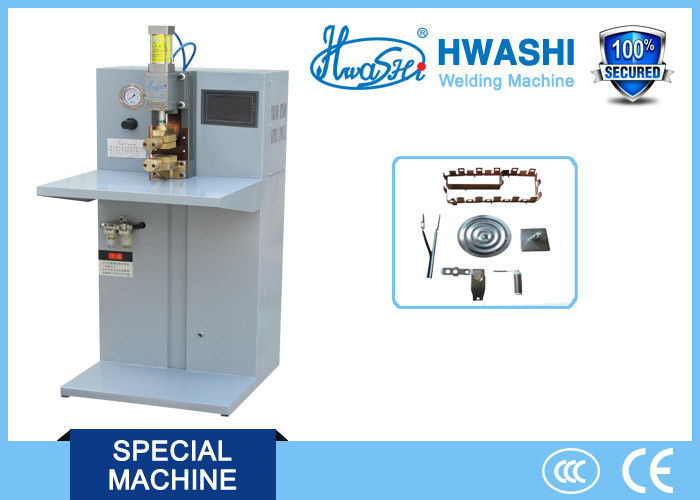

2 Phase Capacitor Discharge Welding Machine WL-C-2K For Electrical Parts 0





                                        2 Phase Capacitor Discharge Welding Machine WL-C-2K For Electrical Parts 1



     2 Phase Capacitor Discharge Welding Machine WL-C-2K For Electrical Parts 2
