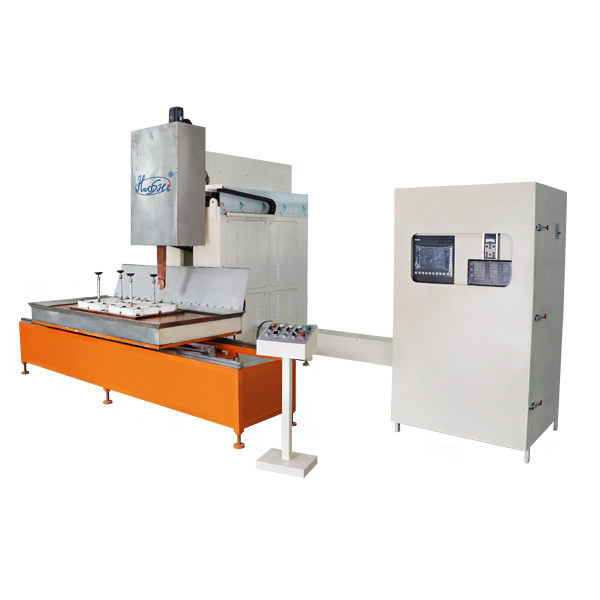

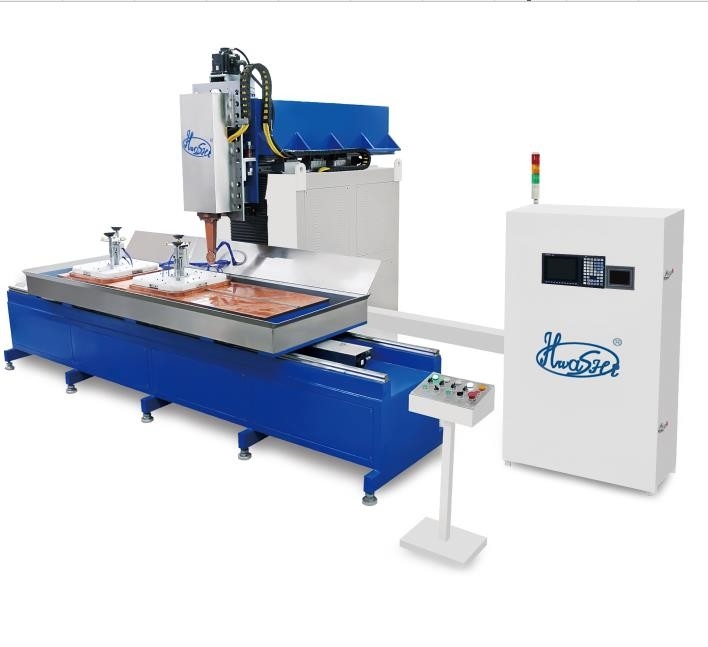

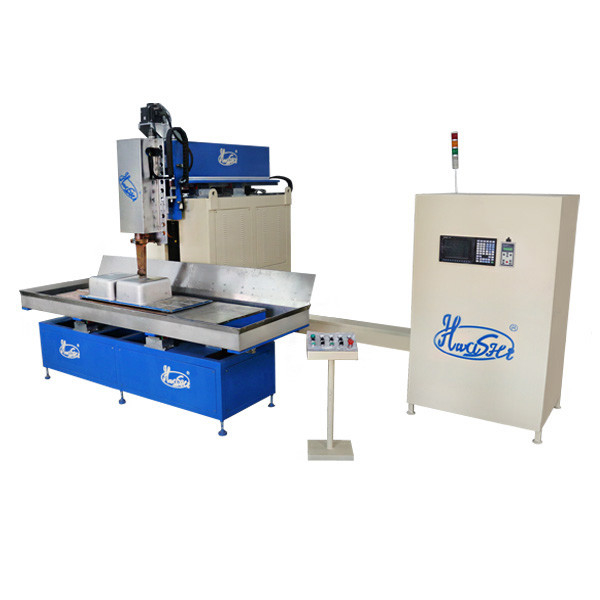

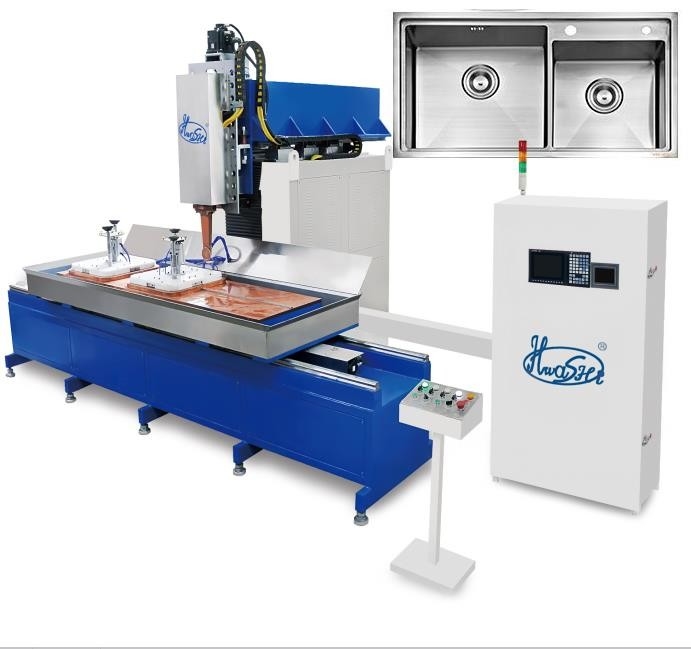

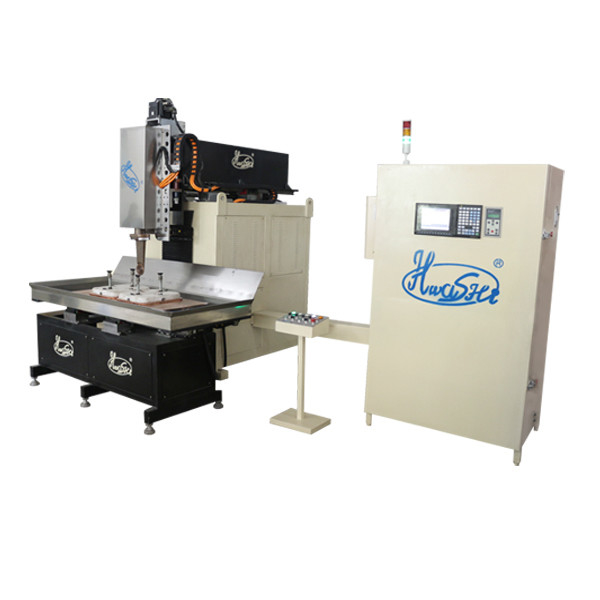

High Efficiency CNC Automatic Stainless Steel Kitchen Sink Edge Seam Welding Machine Grinding Making Polishing machine
Related Product:
-- All the electronic components are imported from Mitsubishi or Omron of Japan
-- High precision and long service life.
-- Convenient usage
-- Quick response
-- High precision.
-- Stable performance.
-- Full automatic bug alarm system.
-- Clear interface, easy operation
-- No cold joint or loose welding
-- Safrty in use

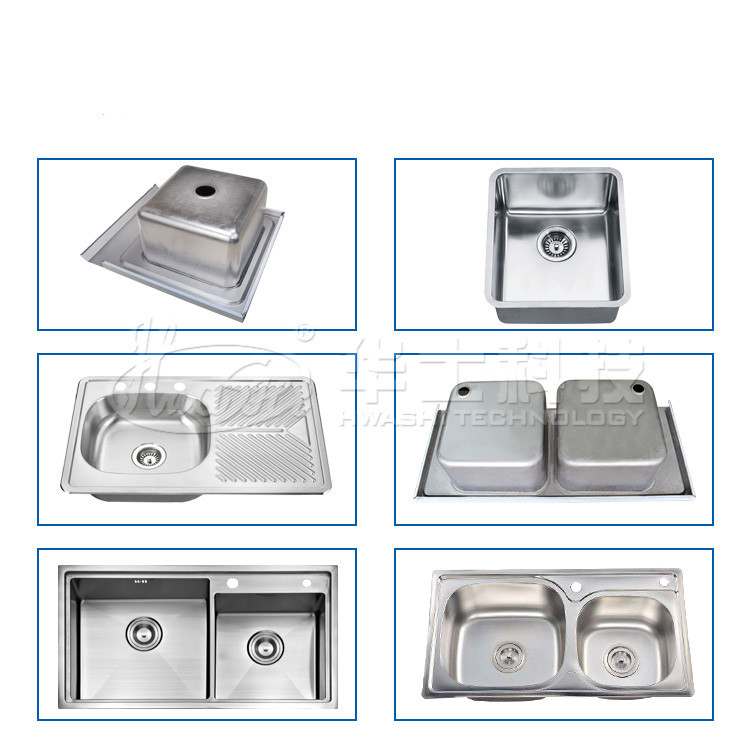

Suitable for welding the sink within the range of 1600mmx600mm (adjustable according to your need)
| Model | WL-AMF-160K |
| Input Power | Three-phase 380 V ±10 % 50HZ |
| Rated Capacity | 160 KVA |
| Rated Duty Cycle | 25 % |
| Max. Secondary Floating Voltage | 9.5 V AC |
| Max. Secondary Circuit Current | 38000 A |
| Insulation Grade of Program Segment | Grade F |
|
Time Adjustment Range of Program Segment |
0-9999 ms |
| Heat Adjustment Range | 15 % - 99 % |
|
Power Grid Voltage Fluctuation Compensation |
When the voltage fluctuates between ± 10%, the secondary voltage dluctuates between ≤ ± 3 % |
| Water Pressure | 0.2 MPa |
| Diameter of Welding Wheel | 100 - 120 mm |
| Width of Welding Wheel | 3 - 5 mm |
| Speed of Welding Wheel | 1800 - 4000 mm/min adjustable |
| Range of X-axis Moving | ≥1600 mm |
| Range of Y-axis Moving | ≥1600 mm |
| Range of Z-axis Moving | ≥350 mm |
| Range of A-axis Moving | 360 ° |
| Rated Air Pressure | 0.8 MPa |
| Air Consumption | 1 m3/h |
| Water Temperature | 10-20 °C |
| Cooling Water Consumption | 1000 L/H |
2) ABB rectifier diode
3) Japan SIEMENS servo motor
4) Integrated circuit (Motorola of U.S.) and PLC ( Japan SIEMENS)
5) Japan SIEMENS intelligent touch screen control
6) SANWO pneumatic parts from South Korea
7) All digital control system
8) Strictly comply with security standard of CCC and CE.
