6 Axis Bike Frame Industrial Robotic Welding Machine With Automatic Welding Positioner

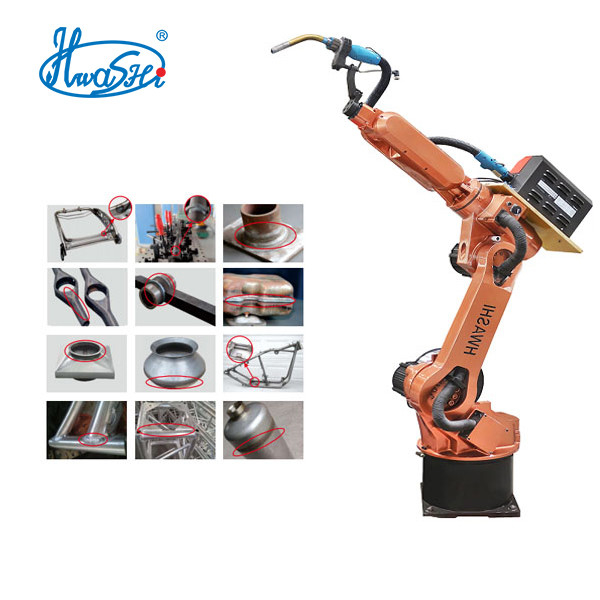

Hwashi robot arm industrial 6 axis Bike Frame Robotic Welding Robot with Automatic Welding Positioner

Robot welding machien jig information-HWASHI.pdf

Product Application

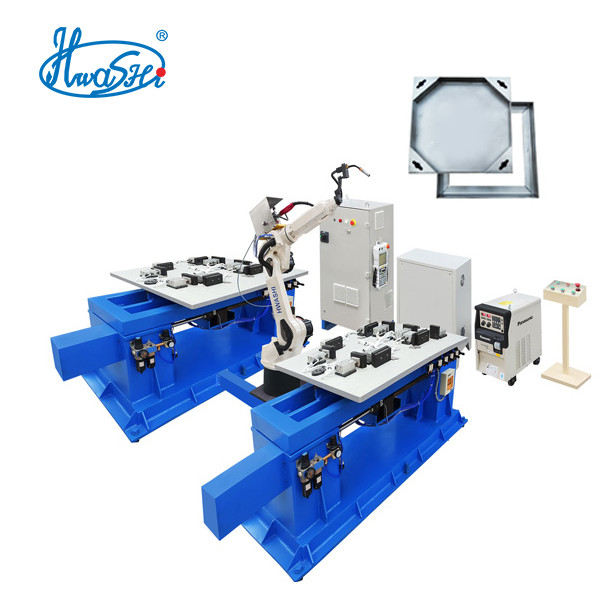

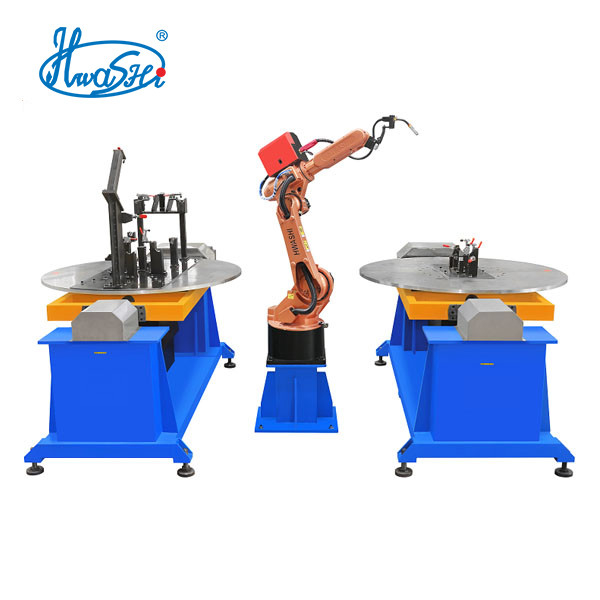

1. Welding system: Panasonic TIG welding machine with automatic wire feeding system. Stable performance. 2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm. 3. Welding gun system: famous brand TBI welding gun. 4. Welding gun cleaning and wire cutting system: TBI brand. 5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600 rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency. 6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force. 7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process. 8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.

SPECIFICATION

APPLICATION

Applied to loading and unloading, welding, stacking transportation, gelatinization and spraying industry.

DESCRIPTION

HS-RAW Series robot improves the accuracy and efficiency

• Improved drives and motors for accurate positioning and better repeatability.
• Slim and compact design allows closer installation in less floor space.
• Maintainability is improved with easier inspections and parts replacement.

Superior Spot Welding Capability

• Industry leading advanced servo gun software features and technologies.
