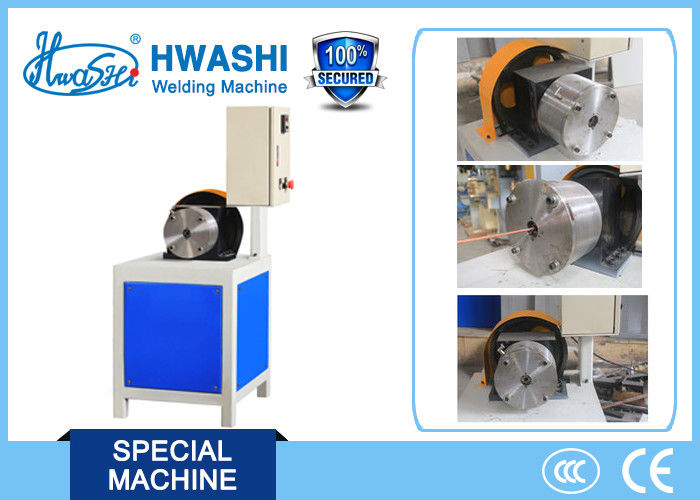

HWASHI Condenser Copper / Aluminium Bundy Tube End Shrinking Machine

HWASHI Condenser Copper / Aluminium Bundy Tube End Shrinking Machine

Bundy Tube End Shrinking Machine

Aluminium Bundy Tube Bender

8.00mm Bundy Tube End Shrinking Machine

Place of Origin:

CHina

Brand Name:

Hwashi

Certification:

CCC,CE

Model Number:

Tube End Shrinking Machine

Contact Us

Request A Quote
Product Details
Name:
HWASHI Condenser Copper /Aluminium Bundy Tube End Shrinking Machine
Suitable Material:
Bundy Tube
Tube Diameter:
4.76,6.35mm And 8.00mm
Expansion Depth:
0-25mm
Expansion Deformation:
≤30% Of Tube Diameter
Tube Clamping Force:
≤750kg
Input Power:
220V 50Hz
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Please contact me for price
Packaging Details
wooden box package
Delivery Time
30
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
30 per month
Product Description

Condenser Bundy Tube End Shrinking Machine



Product Application



The device is driven by a motor through a belt to rotate at a high speed, and the circular impact diameter shrinking mold is on the head of the shaft. The module is separated to the sides by centrifugal force, and then squeezed into the middle again by the outer wheels, so the tube is forced to be formed through the mold.



Main technical ability

Outside diameter of tube to be contracted 6.35-9mm Outside diameter of tube after contraction 4.5mm, 5mm Length of tube for contraction 12-40mm
Motor power



                                   HWASHI Condenser Copper / Aluminium Bundy Tube End Shrinking Machine 0
