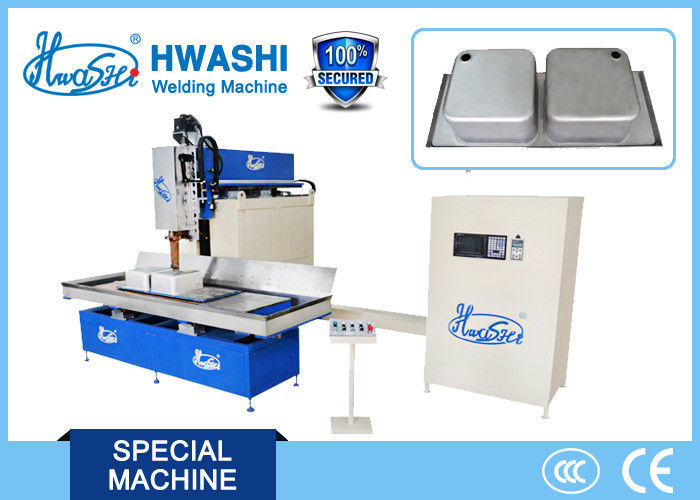

Name: Automatic CNC Seam Welding Equipment With 160kVA Rated Capacity
Brand: HWASHI
SKU: WL-AT-160K
Rating: 4.9 (183 reviews)

Home > products > Sink Welding Machine >

Automatic CNC Seam Welding Equipment With 160kVA Rated Capacity

Automatic CNC Seam Welding Equipment

160kVA Automatic Seam Welding Machine

160kVA Seam Welding Equipment

Place of Origin:

Guangdong Province, China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-AT-160K

Request A Quote

Automatic CNC Seam Welding Equipment With 160kVA Rated Capacity

Product Details

Product Name:

HWASHI CNC Automatic Stainless Steel Kitchen Sink Bowl Seam Welding Machine

Application:

Grinding And Polishing Of Kitchen Sink Seam

Size:

2000x2000x2700mm

Weight:

300kg

Condition:

New

Warranty:

1 Year

Standard:

CE/CCC/ISO

Service Life:

8-10 Years

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Hwashi Automatic Seam Welding Machine for Italian Type Stainless Steel Kitchen Sink Bowl

Get Best Price

Video

HWASHI Sinks Welding Polishing Grinding Cleaning Machine for Ss Stainless Steel Kitchen Sink

Get Best Price

Video

HWASHI Stainless Steel Sink R Corner Sink Automatic Polishing Machine 1m3/h Gas Consumption

Get Best Price

Video

HWASHI Stainless Steel Sink R Corner Sink Automatic Polishing Machine

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Automatic CNC Seam Welding Equipment With 160kVA Rated Capacity

HWASHI CNC Automatic Stainless Steel Kitchen Sink Bowl Seam Welding Machine

Detailed Description

1) Utilizes the principle of seam welder with circular welding wheel. 2) The distance between welding spots will be reduced which will make the nugget overlap with each other. 3) When the interlap degree exceed 1/3 of the diameter of the nugget, then a certain degree of air tightness welding will occur. 4) Medium frequency inverter power source help to save electricity. Adopt the professional automatic control system from MITSUBISHI.
5) Use the servo motor to drive axis X (locate mould) and axis Y (welding electrode) to operate under the preset procedure of PLC data. 6) It could store 16 sets of welding models at most (be able to store 15 sets of welding position and welding current of product).

SPECIFICATION

Model	WL-AMF-160K
Input Power	Single-phase 380V±10% 50Hz
Rated Capacity	160kVA
Rated Duty Cycle	25%
Maximum Secondary Floating Voltage	9.5VAC
Secondary Maximum Short Circuit Current	38000A
Insulation Grade of Welding Transformer	Grade F
Control Program Segment	Pressurize, increase by degrees, preheat, quench, welding, quench, temper, hold, stop, welding pulse number.
Time Adjustment Range of Program Segement	0~99 circle,Zero error
Control Heat Adjustment Range	15%~99%
Network Voltage Fluctuation Compensation	When the rated value of network voltage fluctuates within the range of ±10%, the secondary voltage fluctuates within the range of ±3%
Diameter of Welding Wheel	100-120mm
Width of of Welding Wheel	3-5mm
Revolving Speed of Welding Wheel	1800-4000mm/min Adjustable
Moving Range of Axis X	≥1600mm
Moving Range of Axis Y	≥600mm
Moving Range of Axis Z	≥350mm
Rated Bleed Pressure	0.8MPa
Consumption of Gas	1m3/h
Pressure of Source of Water	0.2Mpa
Temperature of Source of Water	10-20°C
Consumption of Cooling Water	1000L/H

Automatic CNC Seam Welding Equipment With 160kVA Rated Capacity 0
