Place of Origin:
China
Brand Name:
Hwashi
Certification:
CE
Model Number:
WL-2D-8
Contact Us

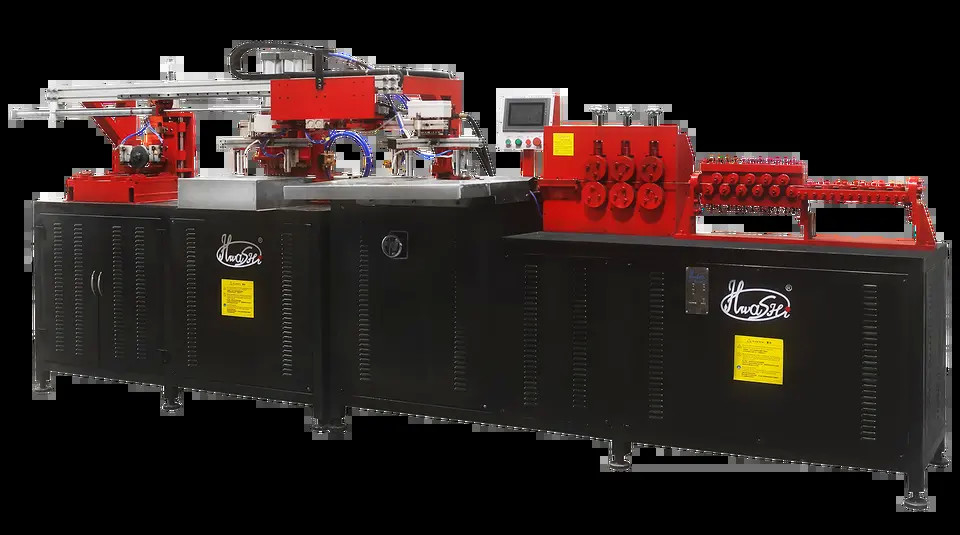

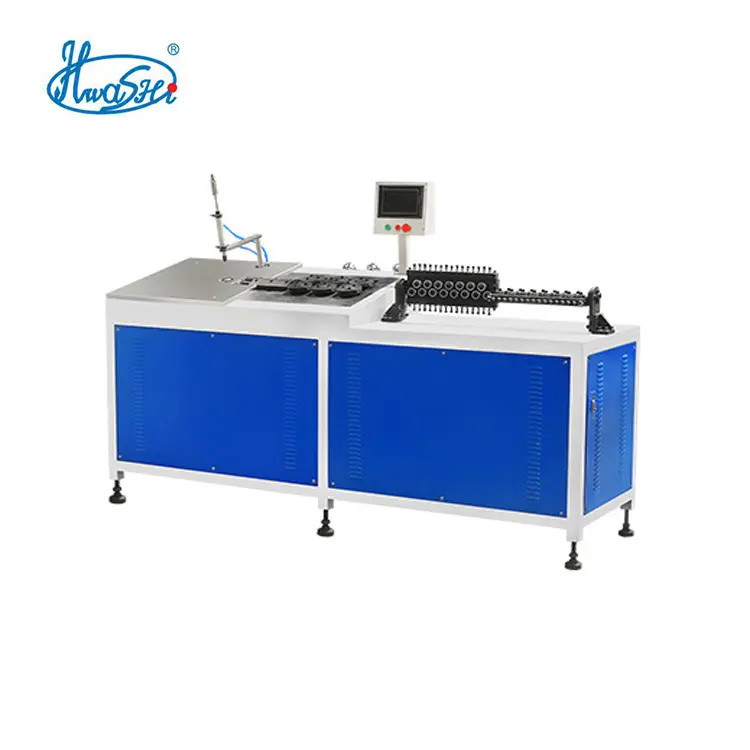

Stainless Steel Mild Steel Wire 2D Bending Machine and Welding Machine
Product description
Automatic 2D bending Machine design three-axis structure which includes the wire straightening mechanism, cutting mechanism, line pressing mechanism and forming mechanism; The straightening mechanism adopts multiple sets of rollers to press up and down and left and right for straightening. The structure ensures light scratches on the surface of the metal wire, and ensures the straightening of the metal wire and the base formed by bending in half. By using servo Drive wire feeding wheel to move the wire forming position, it can move forward and backward according to the program; Forming mechanism through the folding Angle of the bend, with the work of the wire feeding mechanism, the wire bending into a plane shape; Automatic operation of the equipment after loading. The equipment structure is reasonable, stable and reliable, simple operation, high degree of automation, operators can manage multiple machines at the same time, greatly improve the production efficiency, hardware, network cable manufacturers and other necessary special equipment.
Intelligent Bending Control System
Automatic bending by inputting coordinate data of bending position. Easy operation.
Straightening Roller
Use to straightening the feeding wire. Be able to process the wire diameter 2mm to 12mm.

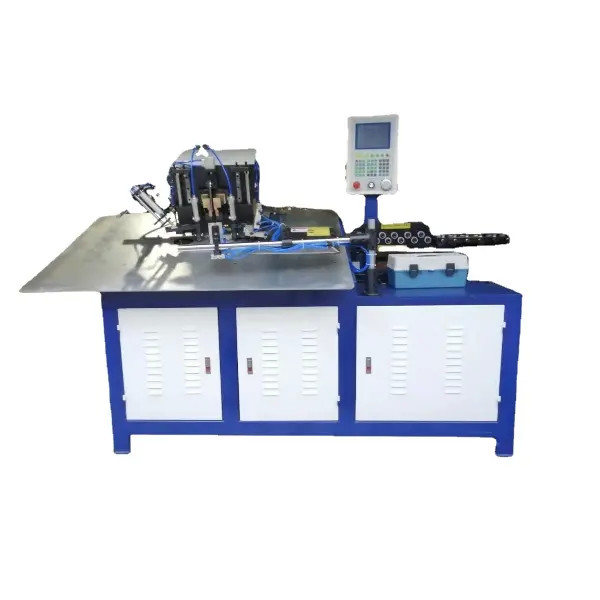

Automatic Welding Structure

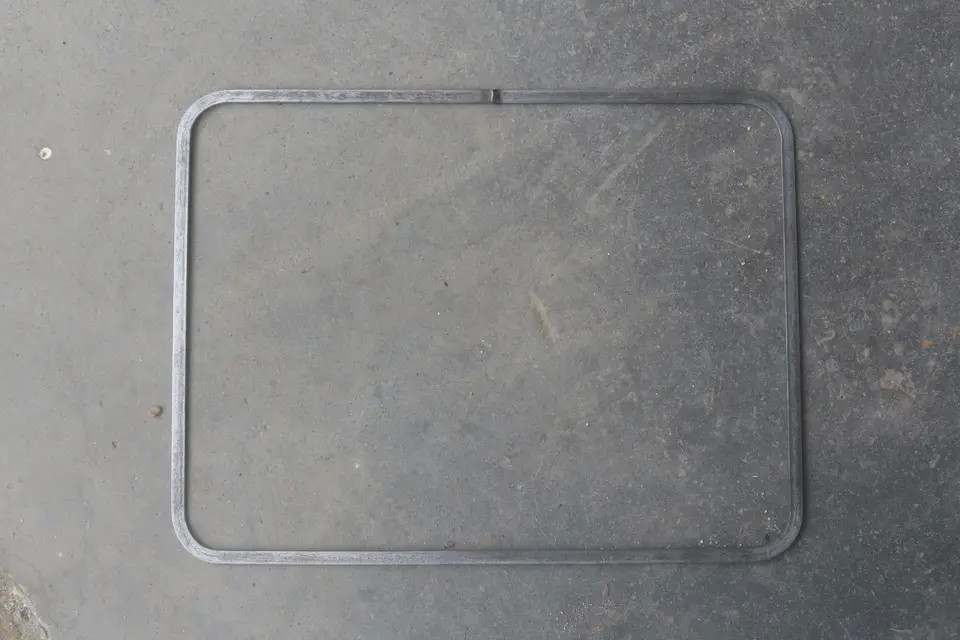

Be able to install the automatic welding device, so as to achieve automatic bending and welding at the same time. Especially suitable for wire frame making. High efficiency.
Automatic Grinding Structure
Be able to grind the joint edges after welding. So no need second time processing. Automatic bending, welding, and grinding at the same time.
Technical Data of 2D Bending Machine
