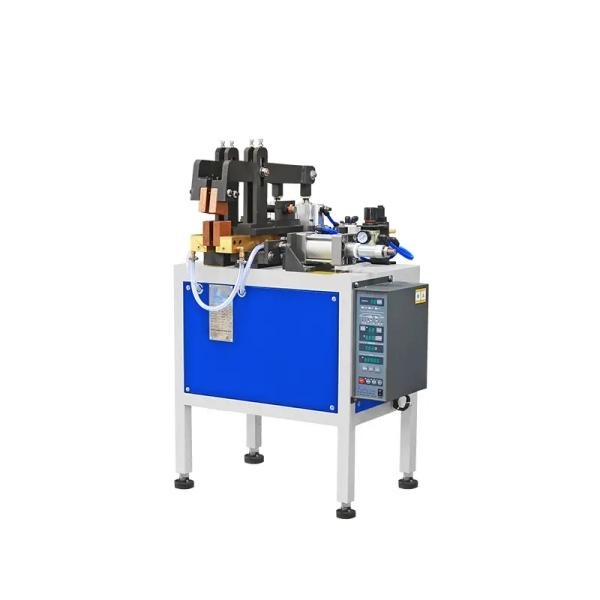

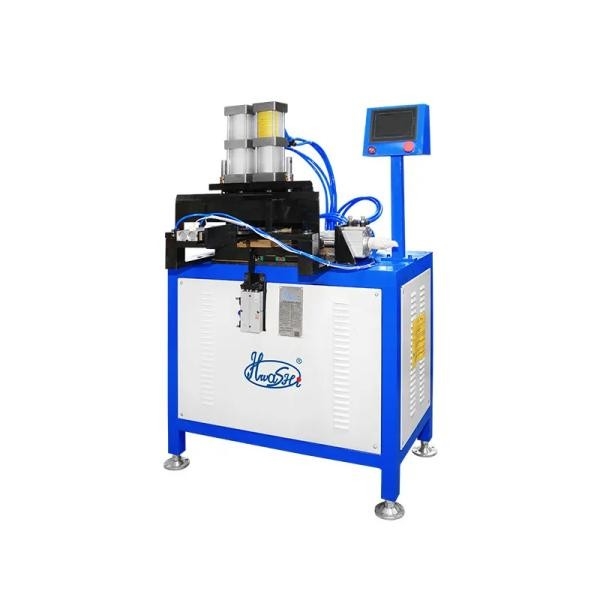

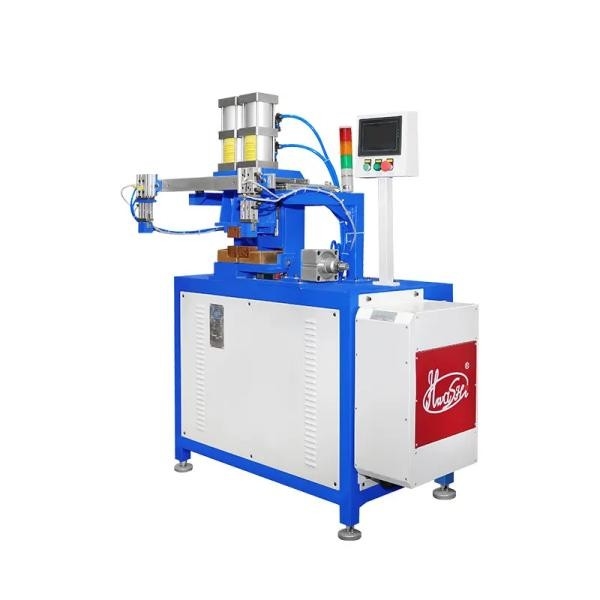

Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder

Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder

Multi Points Automatic Butt Welding Machine

AC pulse Automatic Butt Welding Machine

Flash Rebar Butt Fusion Welder

Place of Origin:

CHINA

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-B-50K

Contact Us

Request A Quote
Product Details
Product Name:
Multi-points Automatic Butt Welding Machine
Dimension(L*W*H):
550x700x1120mm
Weight:
200KG
Automatic Grade:
Automatic
Warranty:
1 Year
Applicable Industries:
Hotels, Building Material Shops, Construction Works
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Sea worthy wooden package
Delivery Time
15 - 30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Hwashi Multi-points Auto Butt Welder,Automatic butt welding machine



Detailed Description

Except for the general functions of AC pulse spot welder, this type of machine also possesses the following features Specially design for butt welding stainless steel wire . Stainless steel wire butt welding machin is able to weld solid wire with 6.5mm thickness . Butt welding 1 mm minimum thickness wire. Be able to joint the two ends of work pieces together. To utilize the contact resistance of the two ends on the connecting position to generate high temperature and high heat to achieve welding effect under pressure. This machine could choose three times of discharging. As for medium carbon steel, this machine possesses the function of preheat and welding anneal and is specially equipped with parallel straight slide to ensure the parallel pressure of forging power of the welding product so as to achieve smoothness and firmness on the joint position. The power of butt welding machine we produce is from 3KVA to 600KVA. It can be used to weld 10mm of iron wire and metals like stainless steel, steel, copper, etc. Applicable to all kinds of hardware.

Features

1. Welding Control System: WD-KD5 Intelligent Microcomputer Controller. The AC pulse spot welder that we produce can be matched with many types of welding controllers 2. Silicon Controlled: Adopt the SEMIKRON, IXYS Silicon controlled from West Germany or IR Silicon controlled from United States 3. Pneumatic Control System: Adopt large displacement of magnetic valve and gas assembly, sufficient air supply 4. Adopt the quick exhaust cylinder, quick response, good servo performance. Welding Transformer 5. Adopt high purity silicon steel disc refined welding transformer, good permeability and electrical conductivity 6. Less consumption of electricity 7. Be able to weld the metal plates like 8mm+8mm low-carbon steelHwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 0

Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 1 Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 2

Intelligent Welding Control System

Be able to choose AC or MF DC power source. You can save different welding models on the controller for different welding material and wire thickness.

Welding Electrode

Be able to make several grooves on the electrodes so one electrode set could weld several types of different wire diameter

Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 3 Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 4

Customized Special Welding Moulds

Processing and making suitable molds according to different product butt welding requirements, making work easier.





Automatic Loading and Unloading Arm

Be able to install the automatic loading and unloading arm to the butt welding machine, so it can be matched with 2D/3D bending machine to achieve full automatic forming and welding process.



Application and samples

Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 5

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 6

Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 7

Application

Butt welding of wire rod of different size or shape. Also suitable for butt welding of unfolded panel material whose width is within 300mm. And butt welding copper tube with Al tube.

Specification

Other Machines Related to Wire Shelf Production Line Composition

We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.

Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 8 Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 9

Wire Flattening and Cutting Machine

This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.
Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.

High Speed Wire Straightening and Cutting Machine

This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.



Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 10 Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 11

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.

Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 12 Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 13

Wire Frame Double T-Butt Machine

This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.



Wire Edge Trimming Machine

After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.





Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 14 Hwashi Multi Points Automatic Butt Welding Machine Flash Rebar Butt Fusion Welder 15

2D Wire Handle Bending Machine

This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.

3D Wire Bending Machine

This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.
