Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-FS-200K
Contact Us

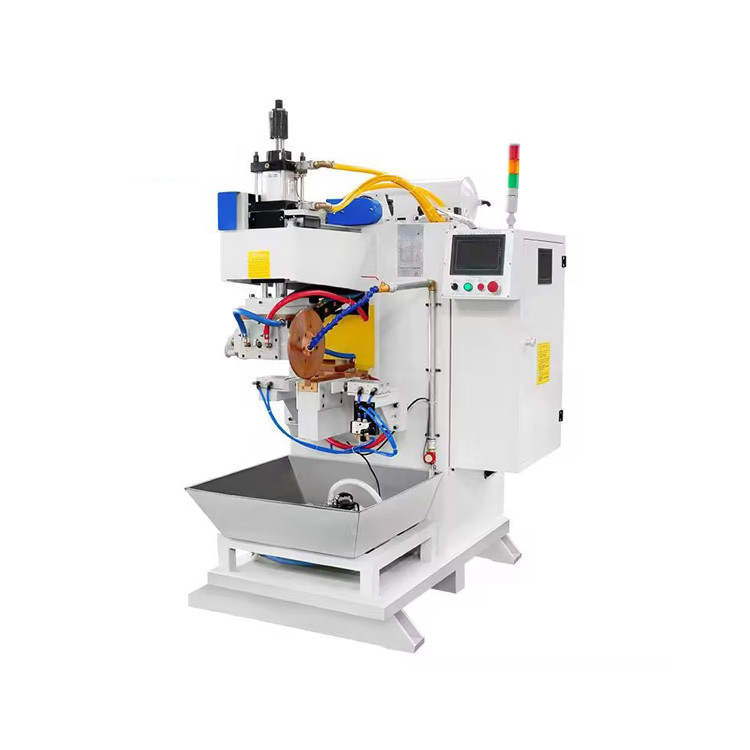

HWASHI CNC X, Y Axis Square Tank Cover Seam Welding Machine Automatic Seam Welder for Square Tank Cove
|
Model
|
WL-FS-75K
|
WL-FS-100
|
WL-FS-125
|
WL-FS-160
|
WL-FS-200
|
WL-FS-250
|
|
Rated Capacity KVA
|
75
|
100
|
125
|
160
|
200
|
250
|
|
Voltage V
|
380*2
|
380*2
|
380*2
|
380*2
|
380*2
|
380*2
|
|
Duty Cycle Rate%
|
50
|
50
|
50
|
50
|
50
|
50
|
|
No Load Voltage V
|
1.08-7.02
|
1.12-7.38
|
1.26-8
|
1.3-8.5
|
2.2-9.0
|
1.3-9.7
|
|
Max. Welding Thickness mm
|
1.2+1.2
|
1.5+1.5
|
1.8+1.8
|
2+2
|
2.5+2.5
|
2.5+3
|
|
Upper Wheel Stroke mm
|
20-80
|
20-80
|
30-100
|
30-100
|
30-100
|
30-100
|
|
Welding Speed m/min
|
0.6-4
|
0.5-3.2
|
0.5-2.8
|
0.5-1.5
|
0.5-1.2
|
0.5-1.2
|
|
Max. Pressure KN
|
6.3
|
6.3
|
8.6
|
8.6
|
8.6
|
8.6
|
|
Compressed Air Mpa
|
0.5
|
0.5
|
0.6
|
0.6
|
0.6
|
0.6
|
|
Cooling Water Consumption L/h
|
820
|
960
|
1080
|
1080
|
1080
|
1080
|
Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.
