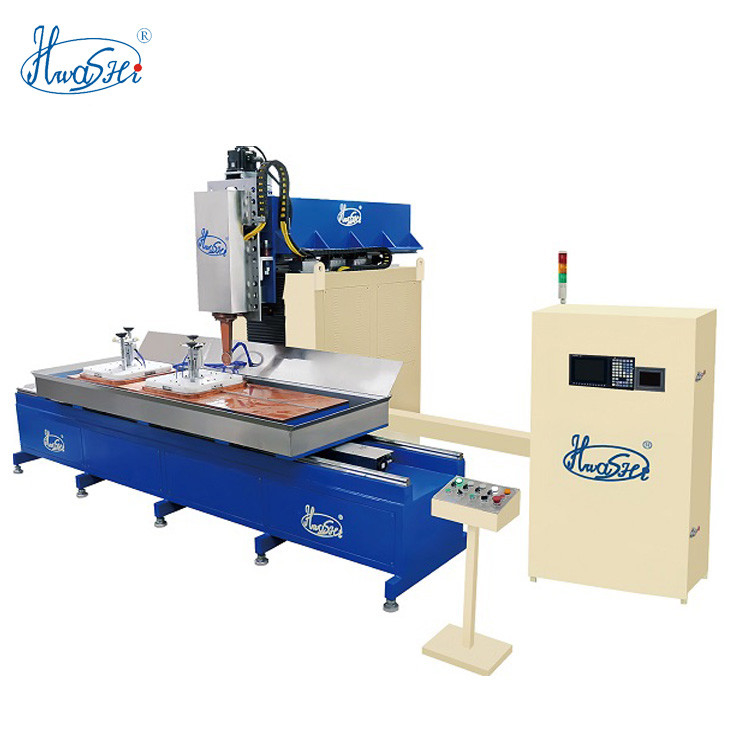

Hwashi Automatic Sink Roll Welding Machine / Sink Manufacturing Equipment
Product Description
CNC Automatic Sink Rolling Seam Welding Machine with Mitsubishi Control System utilizes the seam welding principle to replace the spot welding electrode with circle welding wheel.
Medium frequency inverter power supply system is adopted for ensuring good welding quality. Use professional PLC control system from Japan Mitsubishi brand. As long as inputting the data like coordinate data of sink position, welding current, etc., then the welding track will automatically finish welding product within the preset procedure after starting. Operator only need to put the work piece onto certain place and then take it away when finishing welding.
| Japan Mitsubishi CNC Control System Adopts three sets of Japan Mitsubishi servo motor to control axis X (movement of sink mould), axis Y (vertical movement of welding wheel), and axis A (360° rotation of welding wheel). | Auto Moving Welding Table |
| Big Copper Flat Table Electrode and Fixture We will design the fixture according to the design of your sink bowl. Different sizes may require different fixtures. Be able to do welding of single bowl, double-bowl, or three-bowl product | Welding electrode |
Model | WL-AT-PM1200 |
Input Power | Three-phase 380V±10% 50Hz |
Rated Capacity | 10KVA |
Grinding Wheel Diameter | 50mm |
Abrasive Belt Width | 50mm |
Abrasive Belt Rotating Speed | 1400-2800mm/min (adjustable) |
X Axle Moving Range | ≥1220mm |
Y Axle Moving Range | ≥620mm |
Z Axle Moving Range | ≥250mm |
A Axle Moving Range | 360º |
Rated Air Pressure | 0.8MPa |
Gas Consumption | 1m3/h |
Model | WL-AMF-160K | |
Input Power (V/φ) | 380V 3φ | |
Rated Power (KVA) | 160/250KVA (as per material thickness) | |
Applicable Material | Stainless Steel 304/201 | |
Material Thickness | 0.8~1.5mm (customized) | |
Effective Welding Length | 1600-3000mm (customized) | |
Effective Welding Width | 600-800mm (customized) | |
Sink Bowl Shape | Square/Rectangular/Round | |
Welding Efficiency | about 40-60sec/bowl (depend on the size of bowl) | |
Max. Moving Speed | 500mm/sec | |
Belt Rotation Speed | 1200R/min | |
Min. Radius | R40 | |
Rated Air Pressure | 0.6MPa | |
Grinding Efficiency | about 60-80sec/bowl (depend on the size of bowl) |
1. Adopt medium frequency inverter power source of welding and large flat platform of locating pattern.
2. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data.
3. It could store 15 sets of welding models at most (be able to store 15 sets of welding position and welding current of product).
4. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction and the moving area should be no more than 1200mm.
5. The welding electrode will be designed to move vertically along the Y direction and the moving area should be no more than 620mm. The welding electrode moves from top to bottom within 250mm along the axle Z direction and be able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products.
