XY axis wire welding machine High Speed Full Automatic Security Fence Panel Wire Mesh Welder Welding Machine

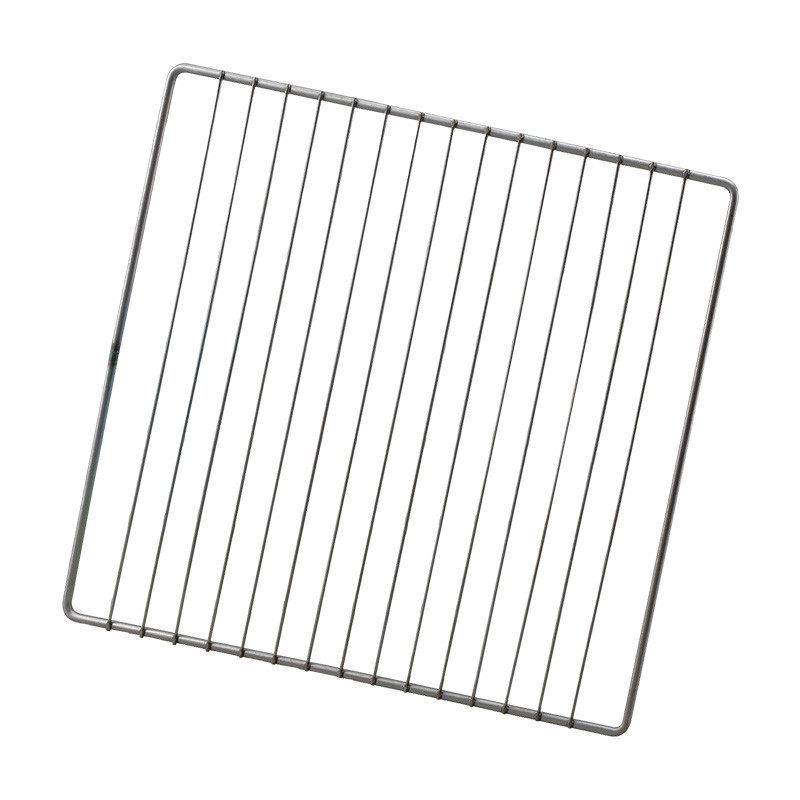

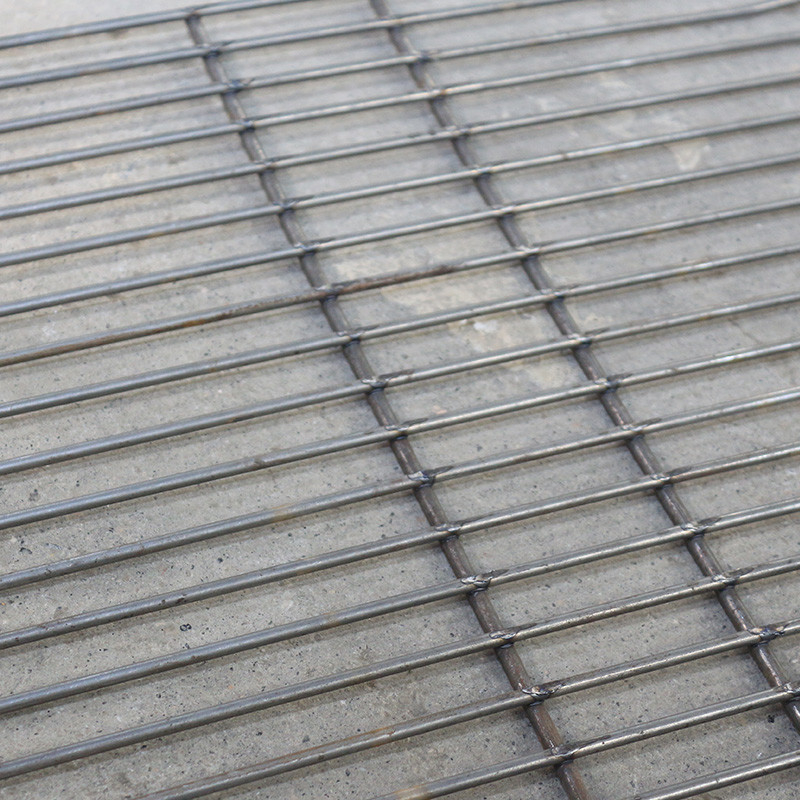

wire welding machine adopts a single-head long arm type welding structure, equipped withwork piece molds that move along the X and Y axis automatically. Input coordinatedata ofwelding position, welding current and other data to realize autormatic welding.Just need to load the material manually and take out the work piece. lt is suitable for the welding ofthe mesh with in the range of 1000mm X 1000mm.
|
|
|
Intelligent welding control system Automatic welding by inputting coordinate data of welding position, welding current and other data. |
Special product molds welding platform Processing and production according to the size of each mesh product |
|
|
|
X.Y axis moving device Equipped with automatic movement of the workpiece mold along X and Y axes, only manual swinging and removal of the workpiece is required |
Single head long arm type welding The equipment adopts single head long arm type welding structure, can be customized according to the needs of the workpiece double row or multi-row welding head |
Specification
|
Model |
WL-TSP-100/150K |
|
Input Power (V/φ) |
380/3 |
|
Rated Power (KVA) |
100/150 |
|
Applicable Material |
Stainless Steel, Carbon steel, Aluminum, Metal |
|
Electrode Force (KG) |
250-400 |
|
Wleding Thickness (MM) |
1-5mm |
|
Warranty |
1 years |
|
Mesh Welding Range |
1000mm X 1000mm |

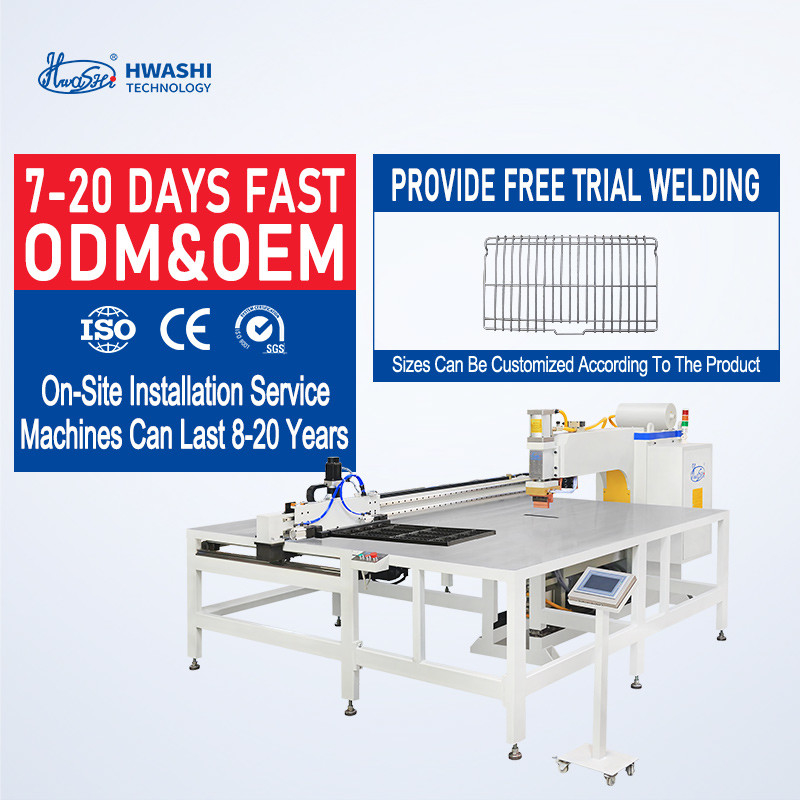

XY axis automatic moving wire welding machine
The wire welding machine features a highly efficient servo motor-driven XY axis mold frame, utilizing a synchronous belt drive system. Controlled by the advanced control system, the machine enables precise control over the walking step length and speed. Once the manual material is securely fixed onto the mold frame, the switch is activated, and the industrial control computer takes charge. The product then undergoes automated welding as it alternately moves along the X and Y axes of the mold frame, seamlessly completing the welding process for each joint. Upon completion, the machine automatically returns to the origin without requiring additional manual intervention. This eliminates the need for additional personnel during the welding operation. Meanwhile, the operator can utilize the available time to set up the next material, optimizing efficiency and reducing labor costs. By effectively utilizing the welding time for material setup, the machine ensures maximum productivity and streamlines the overall workflow.
