Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line

Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CCC,CE

Model Number:

WL-DB-1200

Contact Us

Request A Quote
Product Details
Electricity Requirement:
Three-phase Four Wires 380V±10%
Effective Chinching Height::
500-1200mm
Control Method:
PLC
Effective Welding Width:
1200mm
Effective Welding Length:
1200mm
Automatic Moving Speed:
200-500mm/s Adjustable
Machine Sizex:
3000x1880x1460
Rated Air Pressure:
0.6MPa
Application:
Hydraulic Punching And Hole Making
Required Operator Number:
One People
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD $20000-30000
Packaging Details
sea worthy packing
Delivery Time
One month
Payment Terms
L/C, T/T
Supply Ability
Fifteen a month
Product Description

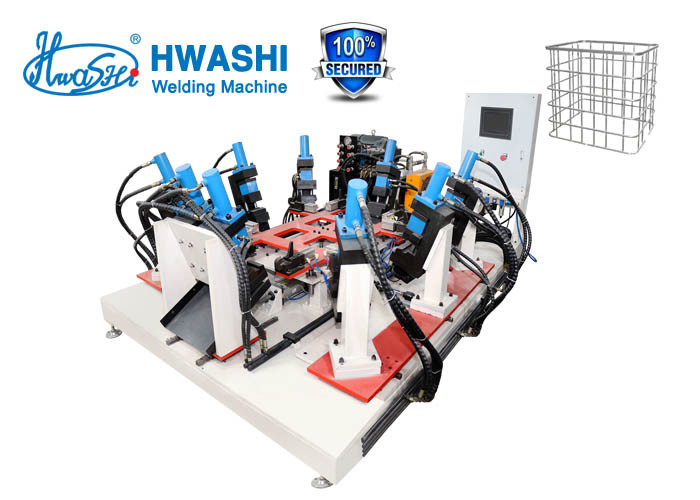

Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line 0

Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line

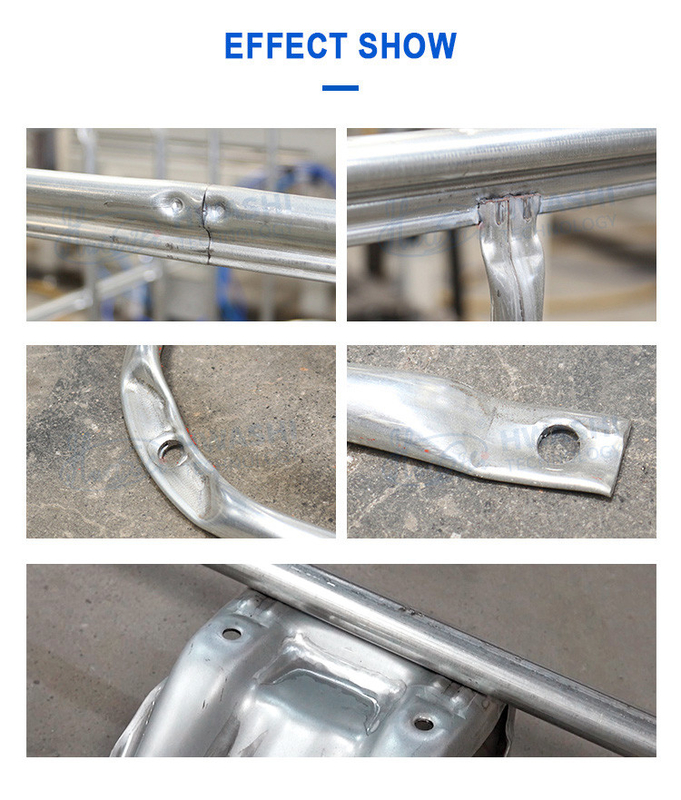

Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line. It is used to do punching and hole making at the bottom of the IBC cage frame. The machine frame is processed as a whole, with high insertion precision, large fastness to locking, stable and efficient operation.





1. IBC cage frame punching and hole making machine is processed as a whole, with high insertion precision, large fastness to locking, stable and efficient operation.
2. The machine is controlled by human-machine interface +PLC programming control mode, with high degree of automation.
3. Manipulator can be configured to automatically load and unload materials to reduce personnel configuration.
4. Only by changing the mold block, the requirements of different locking pipes can be met, and the mold can be replaced easily.
5. The servo hydraulic system has the characteristics of fast response, small inertia and high precision.
6. High degree of modularization of each part of the equipment, which can be configured to improve the degree of automation according to customer requirements.



Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line 1
Production Capacity: 25-30sec/pc

IBC Tank Cage Frame Production Line Machine
This automatic production line is mainly used to manufacturing the IBC cage frame. It is composed of cage frame automatic welding, mesh unloading mechanical arm, mesh turnover structure, automatic frame bending machine, locking machine, hole making and punching machine, automatic production line moving mechanical arm. The complete line requires only 3-4 person. Operator only need to do the material loading to the frame welding machine, and do unloading at the end of the line. Also we can equip the line with automatic base frame welding machine and automatic unloading mechanical arm for the base frame.




Running process:
Frame welding——bending——locking——hole punching——unloading——base frame welding——base frame loading——manual screw for base frame and outer frame
Inner tank loading——automatic valve welding——leakage detection——automatic cover tightening——put the tank into the frame——manual assembly of the pull rod——complete product stacking


Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line 2

Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line 3
Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line 4
Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line 5
Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line 6Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line 7Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line 8
