HWASHI Automatic Spot Welding Of Stiffeners On Shelves , Automatic Resistance Welding Machine

HWASHI Automatic Spot Welding Of Stiffeners On Shelves , Automatic Resistance Welding Machine

Stiffeners Automatic Resistance Welding Machine

Spot Welding Automatic Resistance Welding Machine

Shelves Automatic Resistance Welding Machine

Place of Origin:

CHINA

Brand Name:

HWASHI

Certification:

CE

Model Number:

WL-SF-MF-100K/120K/160K

Contact Us

Request A Quote
Product Details
Product Name:
Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine
Dimension(L*W*H):
2500x1200x1950mm
Weight:
800KG
Usage:
Welding Of Steel Panel
Warranty:
1 Year
Transformer:
MF DC Transformer
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Sea worthy wooden package
Delivery Time
20 - 30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

HWASHI Automatic Spot Welding of Stiffeners on Shelves , Automatic Resistance Welding Machine
This Door Panel Multi Head Spot Welding Machine adopts multiple welding heads with automatic welding. You can choose multi head welding at the same time or each head welding in turns. It is suitable for door panel or sheet metal multi spot welding.
The effective welding width is 1000mm to 2000mm while the effective welding length is 300mm (customized). The material thickness is ranging from 0.4mm to 1.5mm.

Working Process
* Manually put the workpiece onto the table;
* Press the start button, then the machine will conduct welding automatically for one line of spots;
* After welding one line, then manually move the product to another line. Then press the start button again.
* Cycle working

Advantages
* Refined welding
* No need for special equipment
* Multi head welding at the same time
* Maximally easy working area access
* Production flexibility
* Reduced labor costs

Product Features
1. Flexible using: you can adjust the welding head distance as per your drawing request. Only need to loose the bolts on the cylinder then you can move the cylinder from left to right.
2. Reduces set-up time: Unlike conventional stationary spot welders, this system significantly reduces the need for ancillary work such as electrode adjustment and workbench set-up, contributing to a reduction in overall welding man-hours.
3. Easy to set welding parameters:The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily.
4. Comfortable working position: There is no need to hold the workpiece during welding; it can simply be placed on the electrode. Pressurization is also automatic, greatly reducing the physical burden on the operator. The amount of work that can be done per unit time is also dramatically increased.

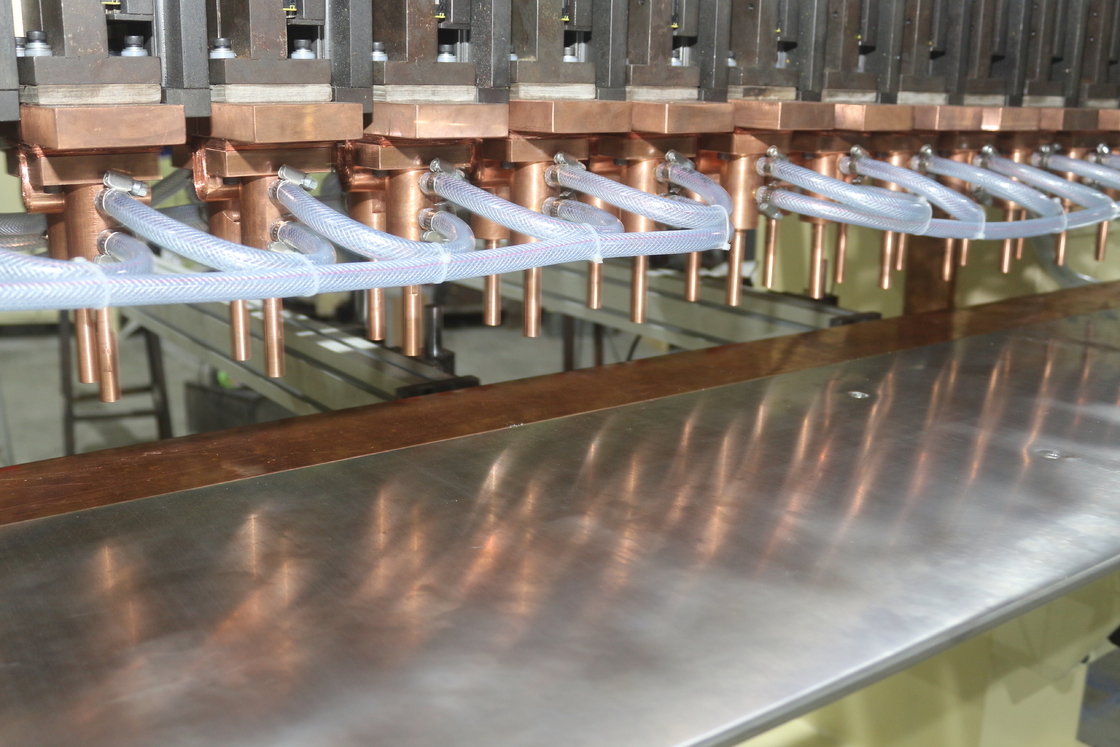

HWASHI Automatic Spot Welding Of Stiffeners On Shelves , Automatic Resistance Welding Machine 0
Specification

S.N
Items
WL-SF-MF160K
WL-SF-MF120K
WL-SF-MF100K
1
Input Voltage
380V,3-Phase
380V,3-Phase
380V,3-Phase
2
Input Power
160KVA
120KVA
100KVA
3
Max.Welding Current
32000A
30000A
28000A
4
Max. Electrode Force
2.2KN
2.2KN
2.2KN
5
Welding Capacity
3+3mm
2+2mm
1+1mm
6
Welding Schedule
32 Kinds
7
Effective Size Of Welding Platform
2000x300mm (customized)
8
Welding Head Numbers
10 to 20 (as per your drawings)
9
Distance Between Electrodes
100-300mm

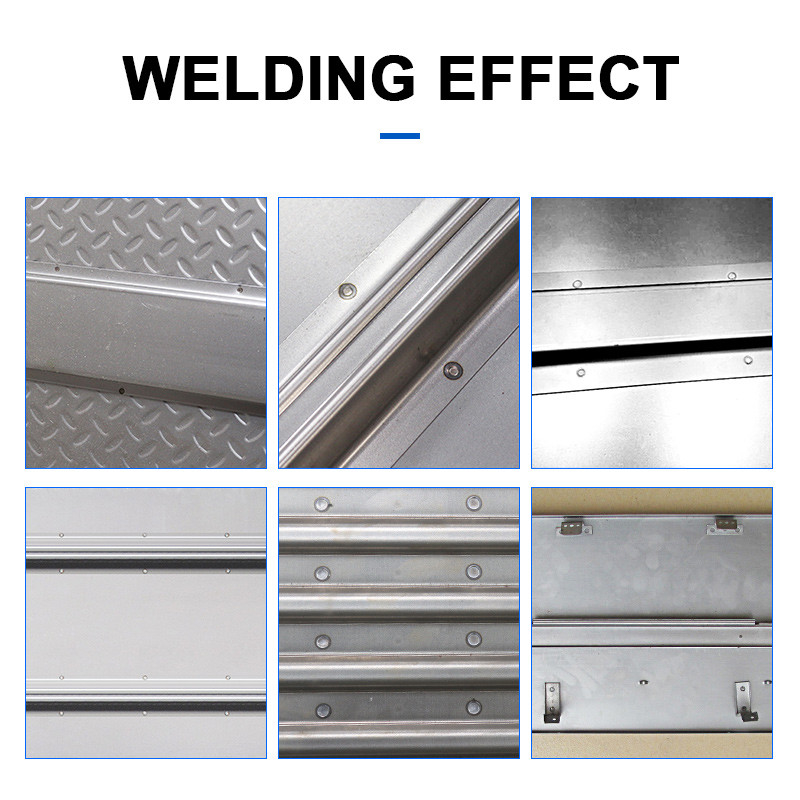

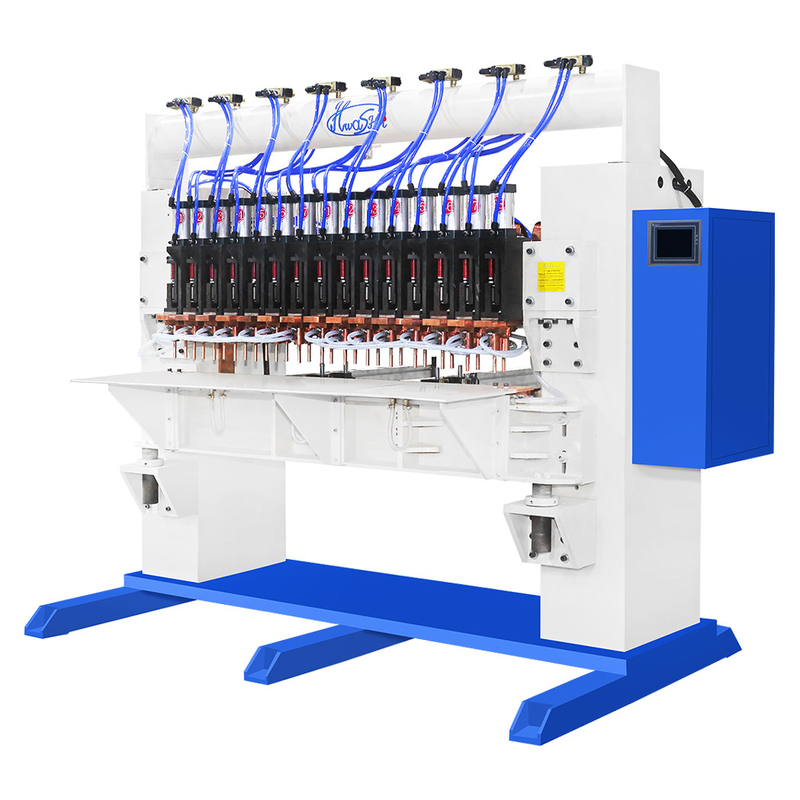

HWASHI Automatic Spot Welding Of Stiffeners On Shelves , Automatic Resistance Welding Machine 1HWASHI Automatic Spot Welding Of Stiffeners On Shelves , Automatic Resistance Welding Machine 2

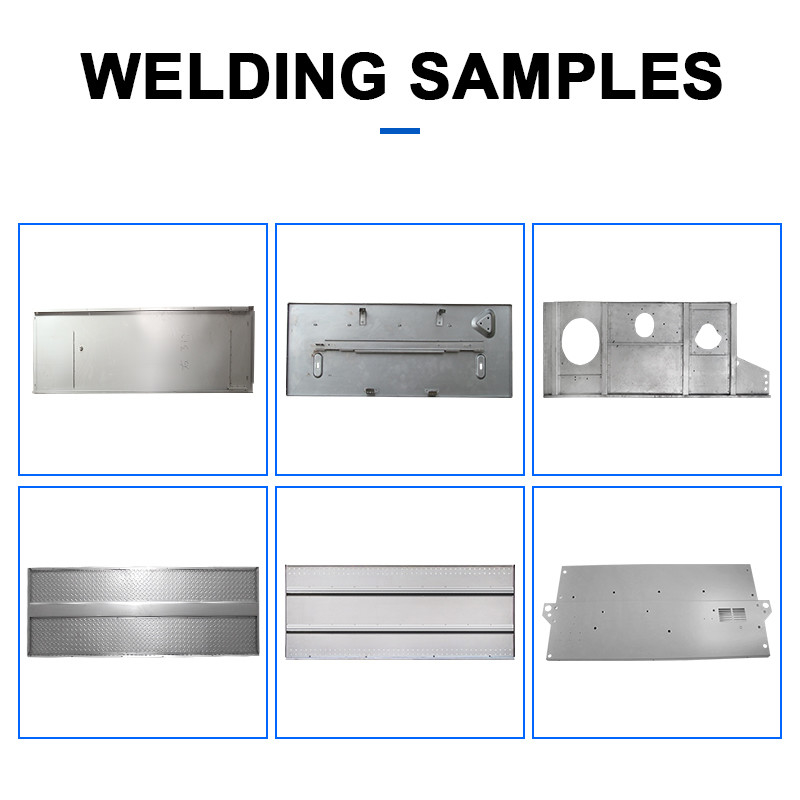

HWASHI Automatic Spot Welding Of Stiffeners On Shelves , Automatic Resistance Welding Machine 3HWASHI Automatic Spot Welding Of Stiffeners On Shelves , Automatic Resistance Welding Machine 4HWASHI Automatic Spot Welding Of Stiffeners On Shelves , Automatic Resistance Welding Machine 5
