Name: Hwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator Making
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SW
Price: 375,000.00 USD
Availability: InStock

Home > products > Condenser Welding Machine >

Hwashi High Speed Stainless Steel Wire/Tube Straightening and Cutting Machine for Condenser Refrigerator Making

Condenser Refrigerator Making Wire Straightener Cutter

igh Speed Straightening and Cutting Machine

Steel Wire Straightening and Cutting Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SW

Request A Quote

Product Details

Product Name:

Condenser Wire High Speed Wire Straightening And Cutting Machine 1.1mm-9mm Motor Driven

Applicable Tube:

Bundy Tube

Working Air Pressure:

0.6-0.8Mpa

Tube Coil Specification:

4.76mm

Making Length:

50mm~3860mm

Output Power:

1.12KW

Standard:

CE/CCC/ISO

Service Life:

8-10 Years

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T, D/P

Supply Ability

50 sets per month

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

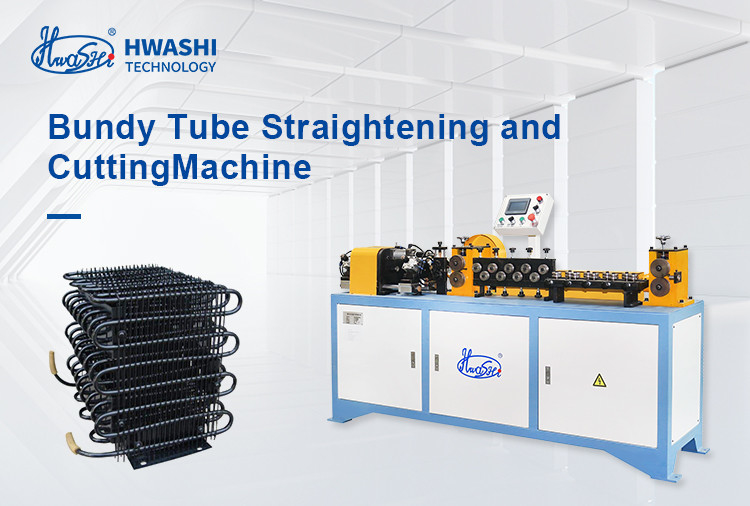

The steel pipe straightening machine is developed and designed by our company based on the advantages of various models. It is specially used for the straightening and cutting of Bondi tubes. The surface is free from scratches. The length of the main machine is automatically adjusted. The man-machine integrated touch screen control system can set the output preset and Lack of material alarm, easier adjustment and smaller error accuracy.

Technical Parameters

38Input Voltage	380V, Three-phase 50Hz
Applicable Tube	Bundy tube
Working Air Pressure	0.6-0.8Mpa
Tube Coil Specification	4.76mm
Tube Wall Thickness	0.4~1.5mm
Making Length	50mm~3860mm
Output Power	1.12KW
Control System	Full Automatic
Max Material Feeding Speed	60m/min
Precision	≤1000mm±0.5mm; ≤3000mm±1mm; ≤5000mm±1.5mm
Machine Dimension	2000x500x1500(mm)

Wire Tube Condenser Production Line

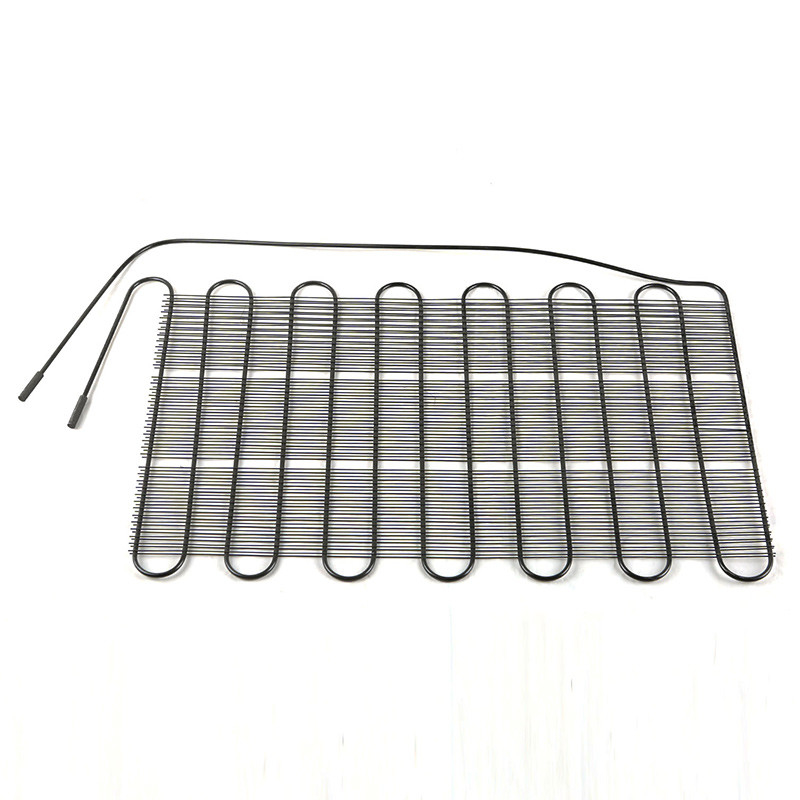

Condenser Sample Information
Wire diameter	1.1-1.5mm
Bundy Tube Diameter	4.76/6.35/8mm
Bundy Tube Radius:	R15/R50/R100
Width range	420-600mm (customized)
Length range	450-1200mm (customized)

Automatic condenser welding machine related details

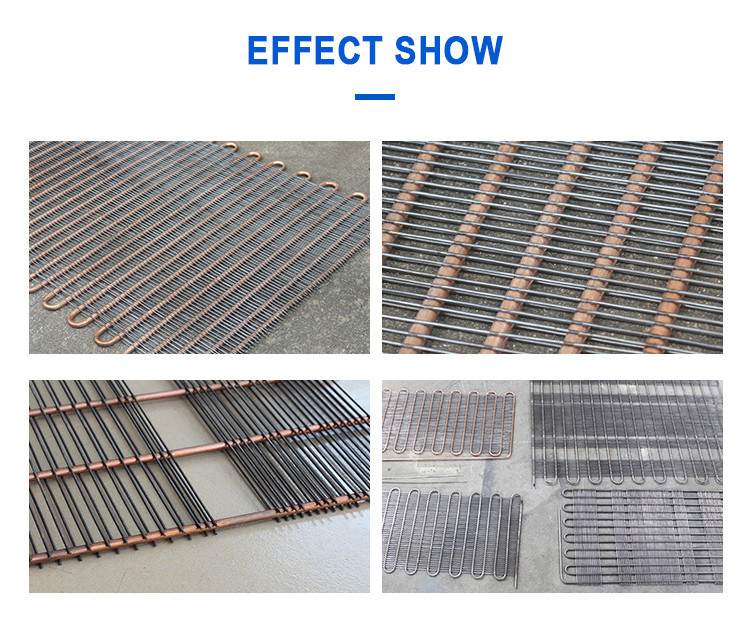

Application and samples

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Application scenarios

Production Line Composition

Other Machines Related to WOT Condender Production Line CompositionWe can design the complete full automatic or semi automatic production line machine for refrigerator condenser.
